TrippNT White Angled Triple Safety Shelf | Staggered-Depth 3-Tier 5S Bench Organizer 50179

Technical Narrative

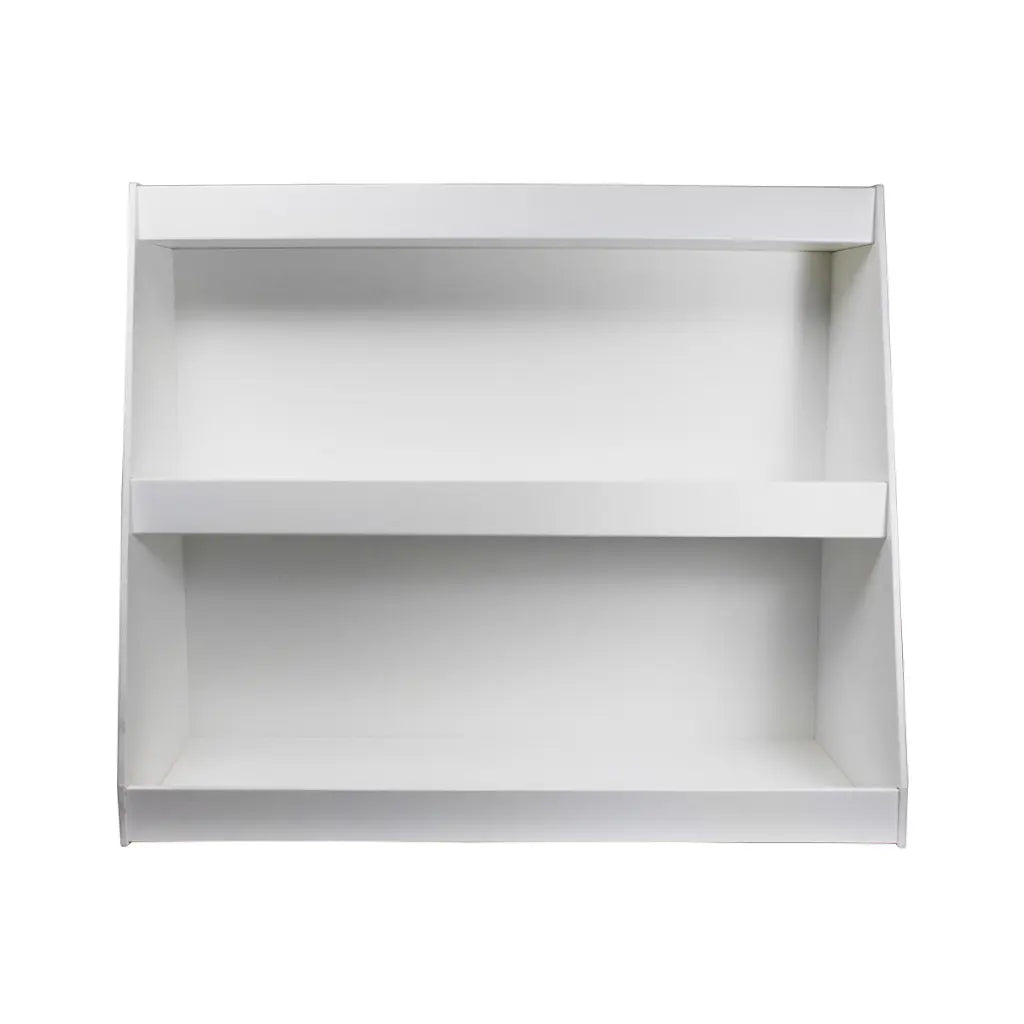

The TrippNT 50179 White Angled Triple Safety Shelf is a procurement-grade three-tier bench organizer engineered for laboratories and clinical workstations where reagent bottles, buffer solutions, and consumables must be not only stored and spill-contained but presented with a forward tilt that brings the lower tiers visually in front of the upper tiers — creating the “staircase” effect that reduces reach depth and puts every item in line of sight simultaneously. Three horizontal ¼″ white PVC shelf tiers are arranged at staggered front-to-back depths: the lowest shelf protrudes farthest forward, the middle shelf is recessed behind it, and the top shelf recesses furthest back. A 1″ safety lip edges every shelf, containing drips, leaks, and rolling objects before they reach the bench surface.

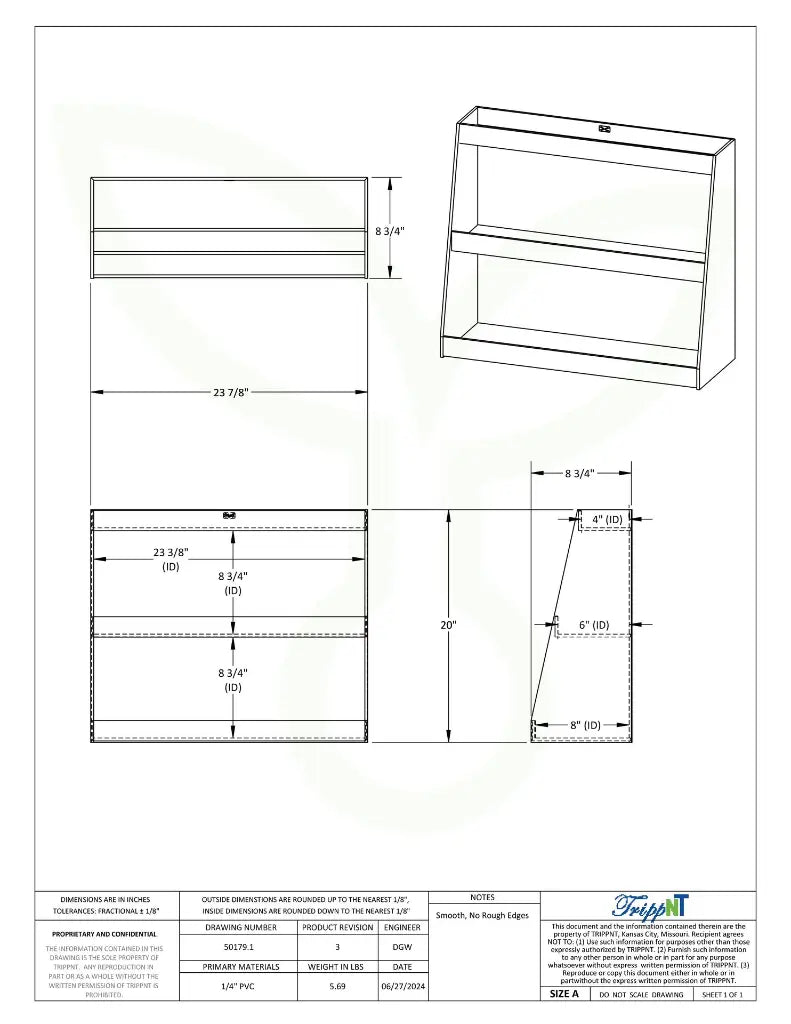

External dimensions are 23⅞″ W x 20″ H x 8¾″ D with a 5.69 lb finished weight, sized to span a standard 24″ bench module with the staggered shelf cascade fitting within an 8¾″ front-to-back footprint. The non-porous ¼″ white PVC substrate is chemically resistant to routine lab disinfectants — quaternary ammonium, 70% IPA, and dilute sodium hypochlorite — and ships fully assembled. Backed by TrippNT’s 100% Lifetime Guarantee. For environments requiring flat-plane shelves rather than staggered-depth, specify the Straight Triple Safety Shelf (50113).

Technical Specifications

Laboratory and Clinical Applications

The 50179 is deployed across regulated and research environments requiring staggered visual access to multi-tier reagent staging, including academic chemistry and biology teaching labs, biotechnology R&D reagent benches, pharmaceutical QC titration and sample-prep stations, clinical chemistry buffer staging benches, pH meter and conductivity instrument side stations, USP 797 sterile compounding IV-room reagent holding, BSL-2 microbiology suites, environmental and water-quality testing labs, dental laboratory material-prep areas, food-and-beverage QC reagent staging, veterinary clinic treatment-room supply benches, and forensic chemistry workstations. The staggered-depth design is particularly valued in environments where bottle labels must all be readable simultaneously without removing items from the shelf.

Product Documentation

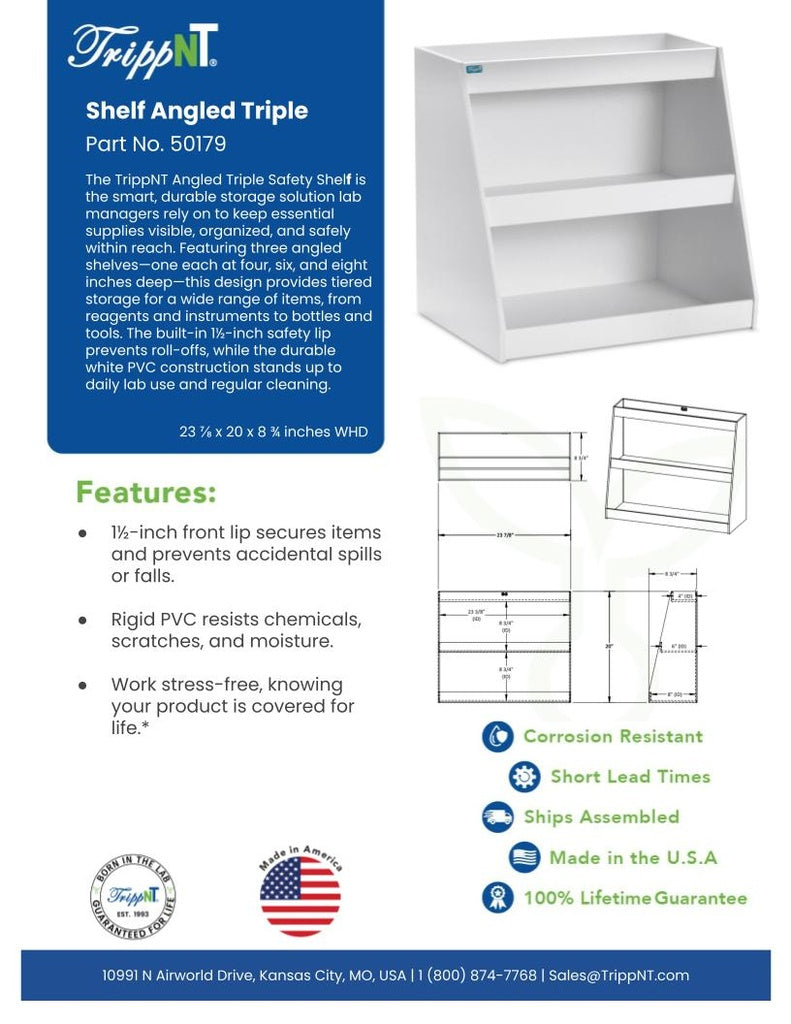

• Sales Sheet — 50179 White Angled Triple Safety Shelf (PDF)

Made in the U.S.A. & Lifetime Guarantee

Proudly manufactured in the United States by TrippNT. This safety shelf is backed by a 100% Lifetime Guarantee, ensuring it is a permanent asset for your laboratory. Institutional pricing and bulk discounts are available for universities, hospital systems, and government agencies.

Frequently Asked Questions

What is the difference between the Angled 50179 and the Straight 50113 — when do I specify each?

Specify the Angled 50179 when label visibility across all three tiers simultaneously is the priority — the staggered-depth cascade brings each tier into direct line of sight from the operator position, so you can read every bottle label without moving anything. The forward-tilted geometry reduces effective reach depth to each tier. Specify the Straight 50113 when flat-plane stability for wide-base bottles, sample racks, or instrument accessories is more important than tiered visual access — items on angled shelves can shift on the sloped surface if not secured by the safety lip. The 50179 also has a 1″ lip vs. the 50113’s 1½″, so for higher-drip environments the straight shelf is the better specification.

Can standard 500 mL and 1000 mL wash bottles stand upright on the angled shelves, and what is the effective shelf depth per tier?

Yes, provided the safety lip is sufficient to retain the bottle base. The 1″ lip on each tier retains standard-base 500 mL wash bottles and reagent bottles at the forward edge. For 1000 mL round-base bottles with high centers of gravity, the lower tier’s greater forward protrusion provides a natural backstop against the tier edge behind it, so standing stability is generally good. Effective usable depth per tier varies by position in the staircase; the lower tier is the shallowest in its forward-protrusion zone — verify 1000 mL bottles fit without overhanging the lip before committing.
