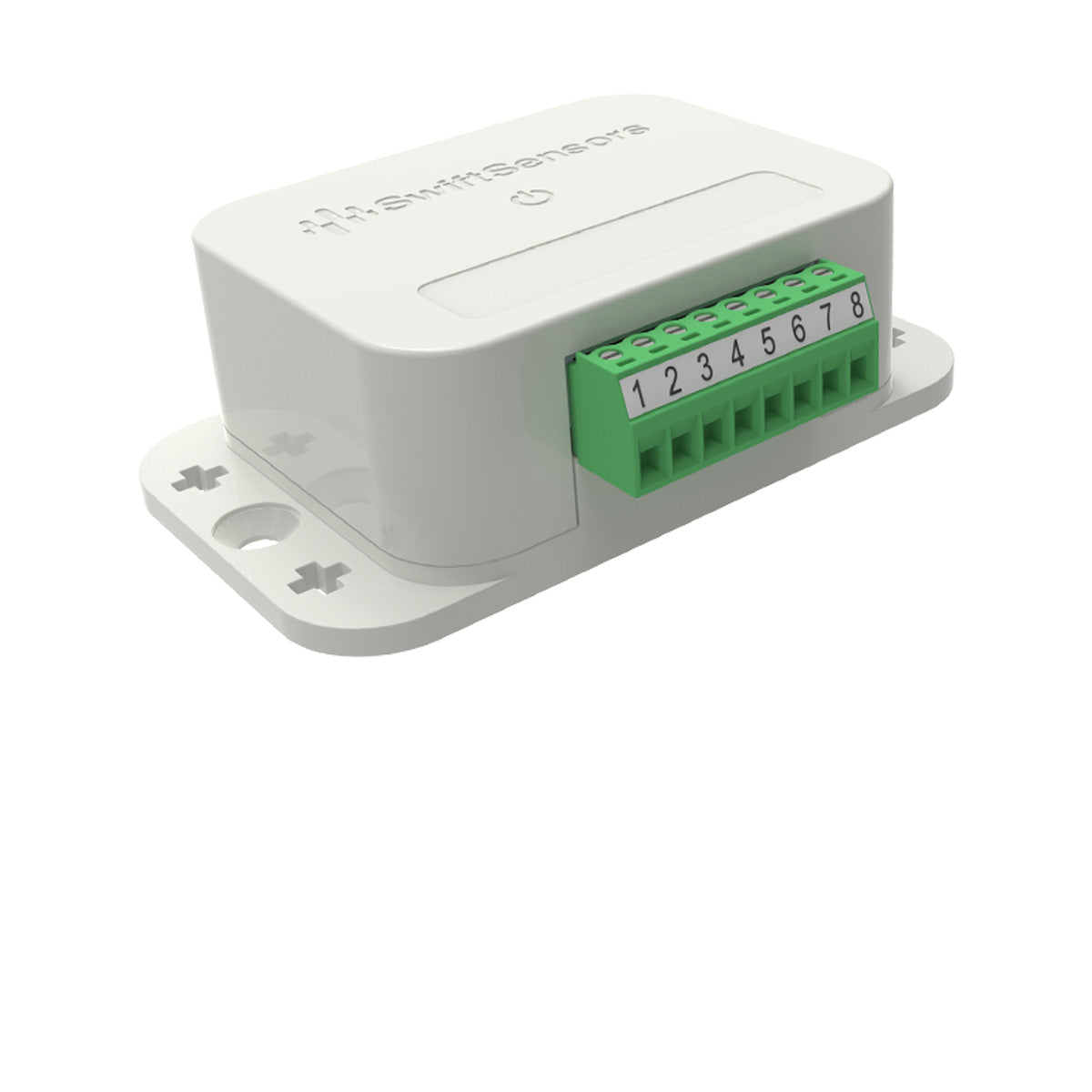

The Swift Sensors SS3-615 is a universal analog adapter that connects industrial transducers via 4-20 mA, 0-10 VDC, and all NTC and RTD temperature sensors with a 0-100 Mohm input range - a flexible way to bring almost any analog sensor into the Swift Sensors platform.
Typical applications
- NTC and RTD temperature probes
- 4-20 mA and 0-10 VDC transducers
- Custom and third-party sensors
- Process and industrial instrumentation
- Sensor retrofits and integrations
Technical specifications
| Inputs | 4-20 mA, 0-10 VDC, NTC, RTD |
|---|---|
| Input range | 0-100 Mohm |
| Wireless protocol | BLE5 / Bluetooth 5, 2.4 GHz, 128-bit AES encryption |
| Wireless range | 70-90 m (250-300 ft) line-of-sight; 30-45 m (100-150 ft) non-line-of-sight |
| Battery | 2 x AAA lithium-polymer, replaceable; 6-8 year average life |
| Enclosure rating | IP66 - dust-proof and water-resistant |
| Warranty | 2 years |
How the Swift Sensors wireless system works
This sensor pairs with a Swift Sensors Gateway (sold separately), which securely transmits encrypted readings to the Swift Sensors Cloud over Wi-Fi, Ethernet, Power-over-Ethernet, or cellular using 256-bit AES encryption. View live and historical data from any computer, tablet, or smartphone in the Swift Sensors Console, and set custom thresholds that trigger instant SMS text, email, and phone-call alerts.
- Plug-and-play deployment — no wires to run and no software to install; sensors auto-pair with the gateway in minutes.
- 6–8 year battery life from two replaceable AAA lithium-polymer batteries.
- BLE5 wireless range up to 250–300 ft line-of-sight; each gateway supports up to 150 Series 3 sensors.
- Secure, scalable cloud architecture — from a single sensor to thousands across multiple sites.
- Two-year warranty and satisfaction guarantee. NIST-traceable calibration certificates available on temperature and humidity models.
Requires a Swift Sensors Gateway and an active Swift Sensors Cloud Monitoring plan. LabSupplies.com provides system-design assistance and dedicated account service for laboratories, healthcare, and facility teams.
