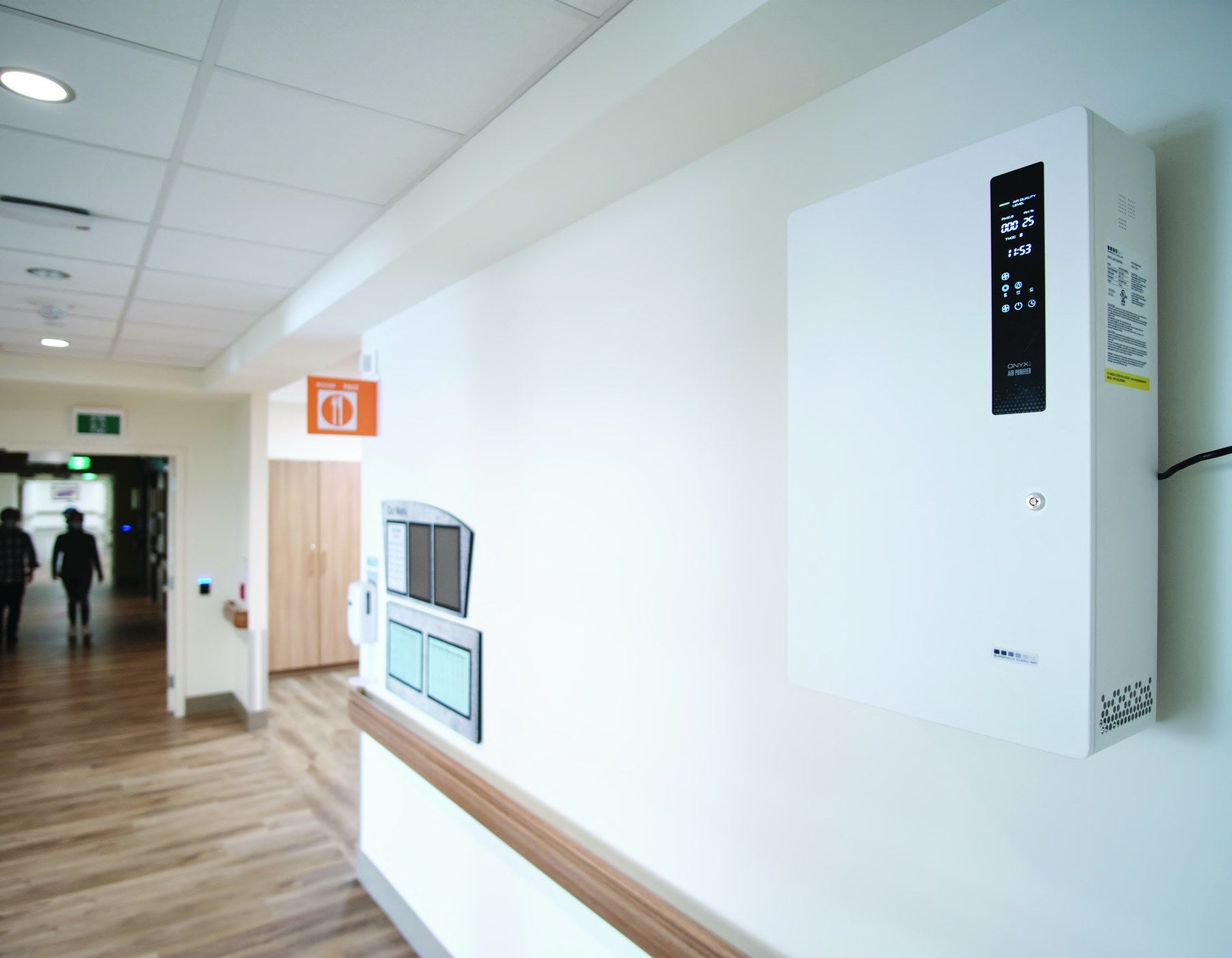

The ONYXsca® is the wall-mounted unit in the Surgically Clean Air range. At 7.68 in deep it keeps the floor clear in an operatory, a corridor or any room where floor space is the constraint, and the control panel is permanently lockable so settings stay where you set them.
Specifications
| Parameter | Specification |
|---|---|
| Model | ONYXsca® (SCA2000C) |

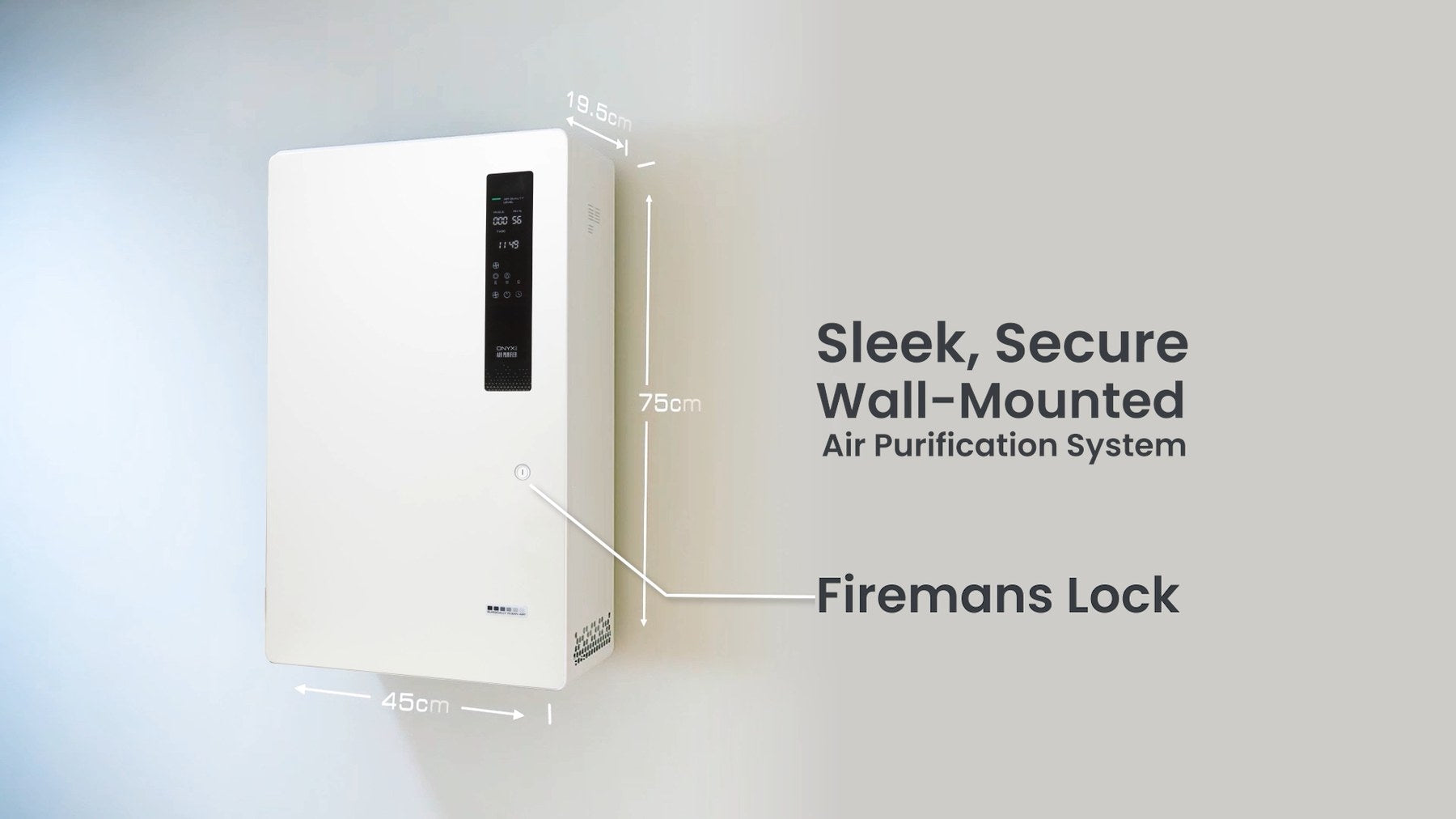

| Dimensions | 17.7 in W × 30.7 in H × 7.68 in D (45 × 78 × 19.5 cm) |
| Weight | 40.8 lbs (18.5 kg) |
| Airflow | 125 / 195 / 240 CFM (212 / 331 / 404 m³/h) |
| Sound level | under 40 dB(A) low, 47 dB(A) medium, 55 dB(A) high |
| Manufacturer coverage | Up to 1,000 sq ft |
| Sensors | VOC, PM2.5 and humidity |
| Control | Lockable panel (permanent), auto mode, remote control |
| Mounting | Wall-mounted |
| Certification | UL / ETL listed |
| Warranty | 1 year |

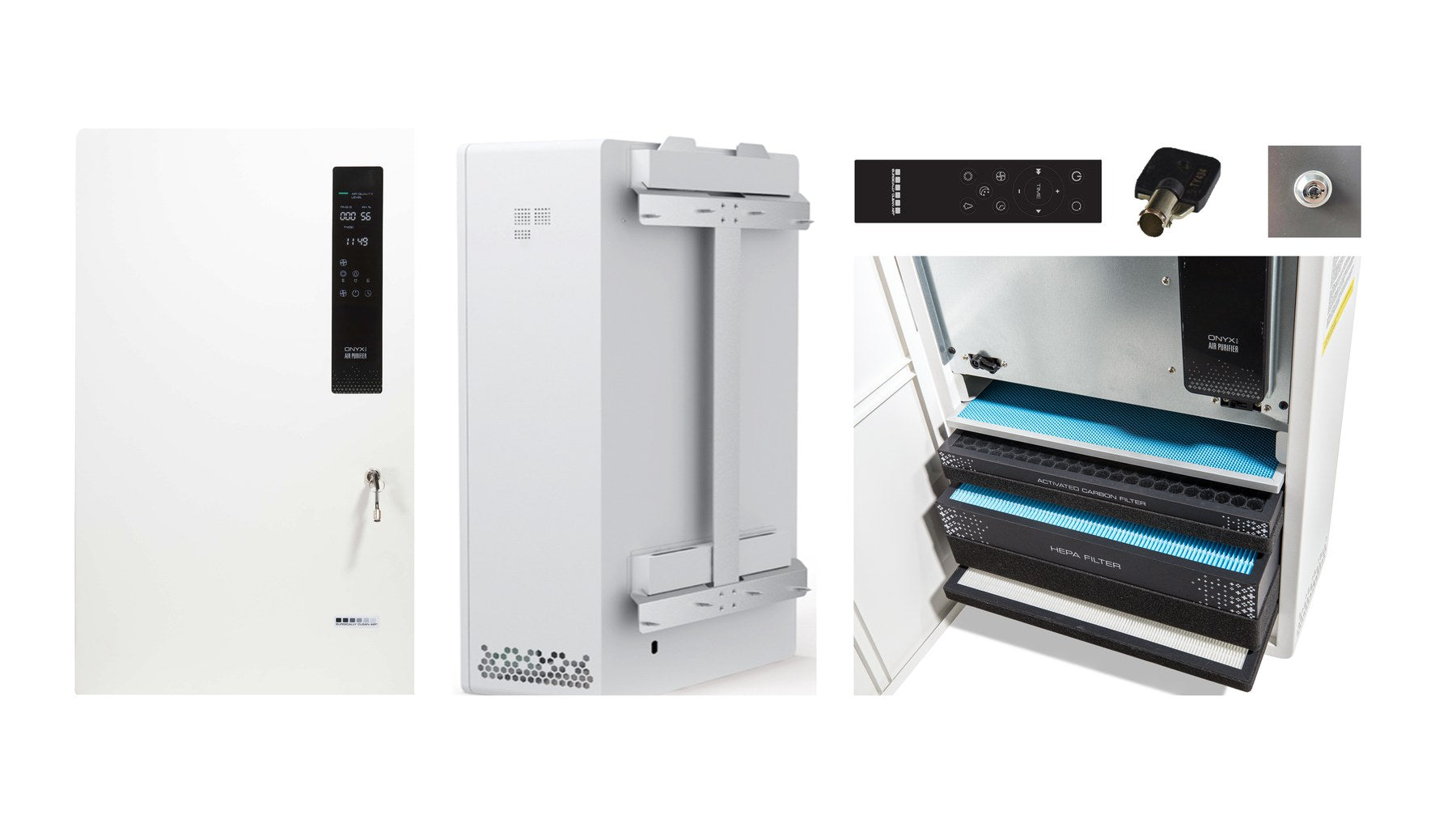

Five-stage filtration
- Pre-filter — permanent, captures the largest particles.
- HEPA-Rx — ultra-fine particulate filter.
- Activated carbon — adsorbs VOCs, gases and odours.
- UV-C+ lamp — germicidal UV-C stage.
- Revitalizing chamber — treats the air before it returns to the room.
Part numbers

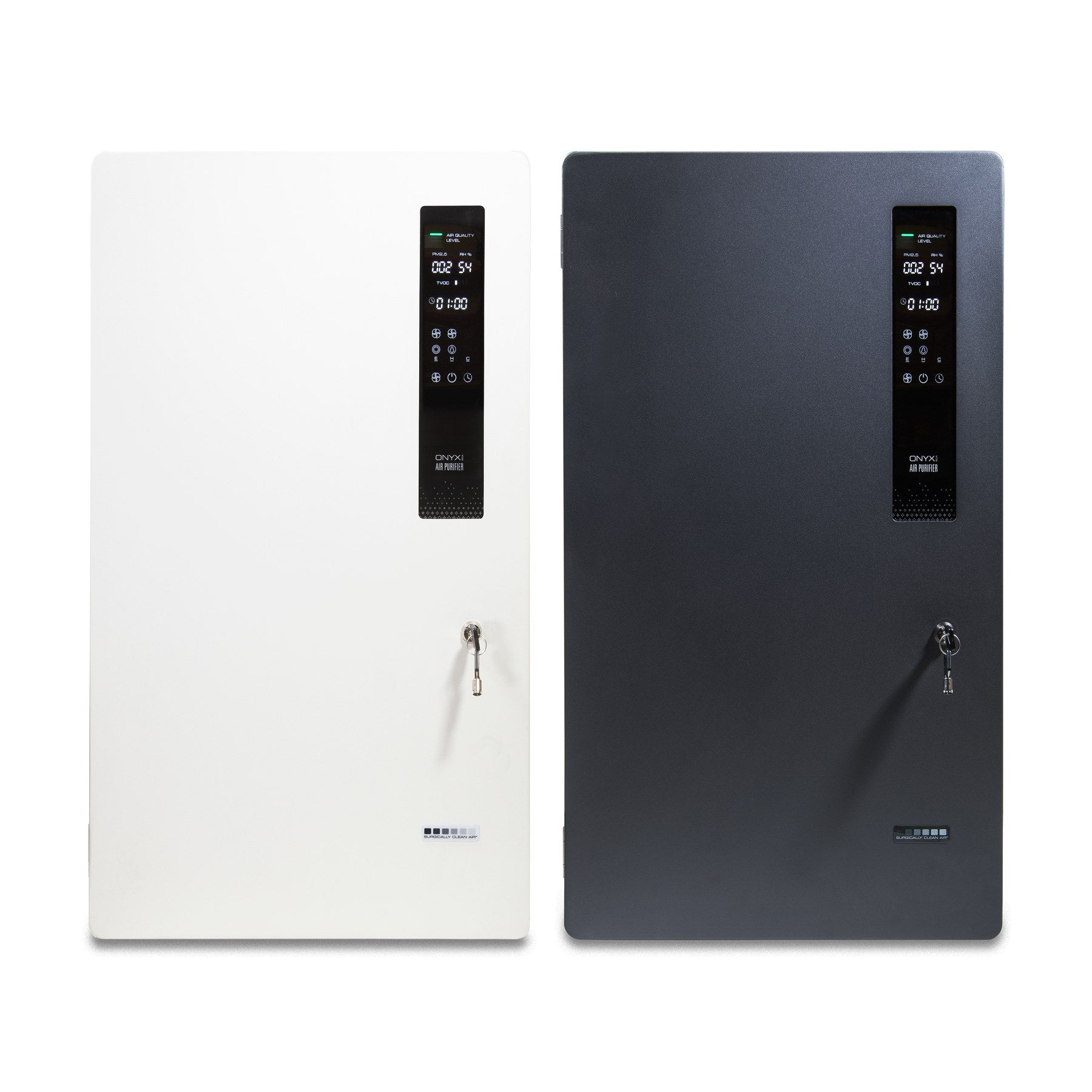

| Part number | Configuration | Colour |
|---|---|---|

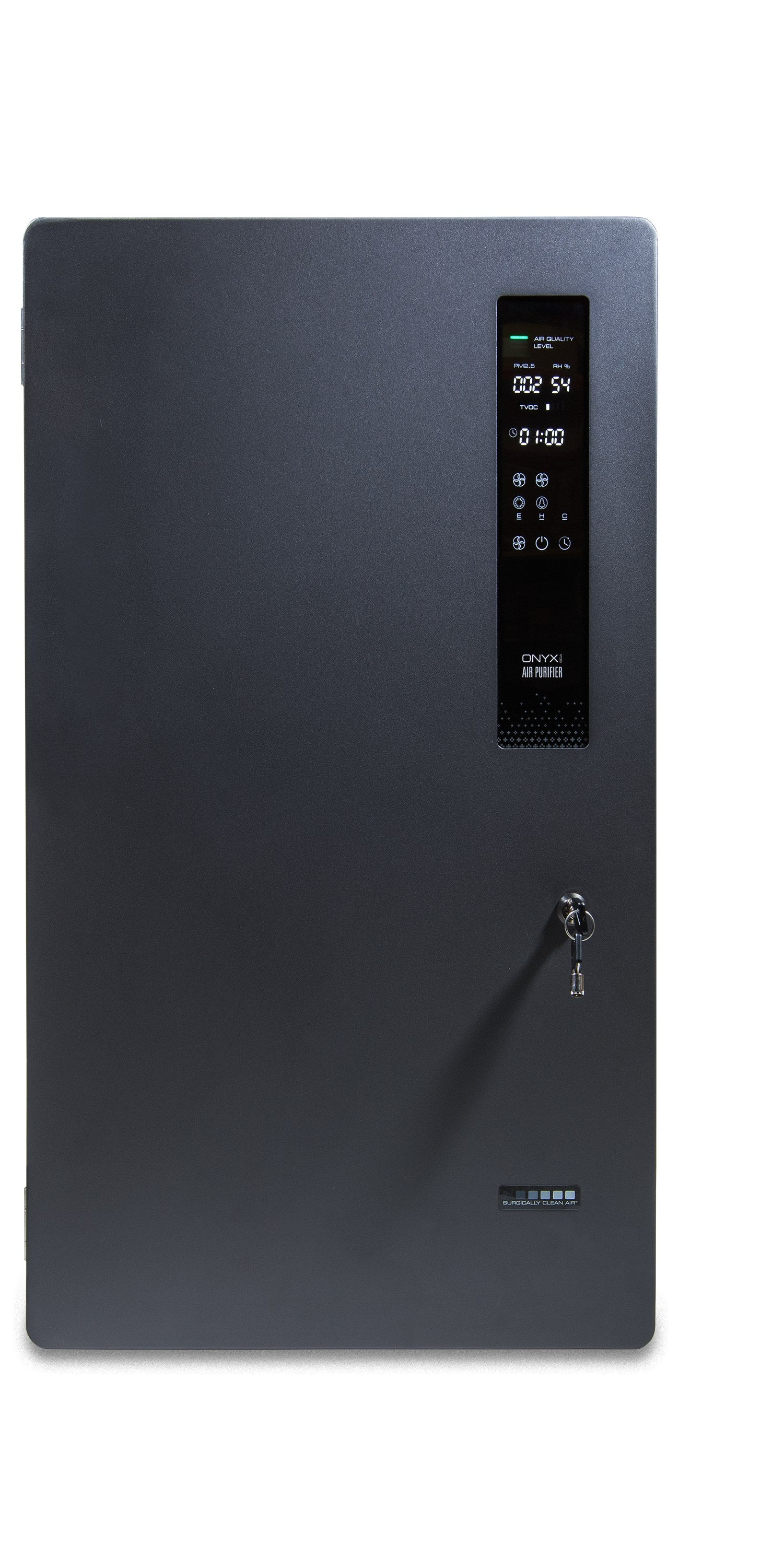

| AP-SCA2000CB | ONYXsca Air Purifier | Black |

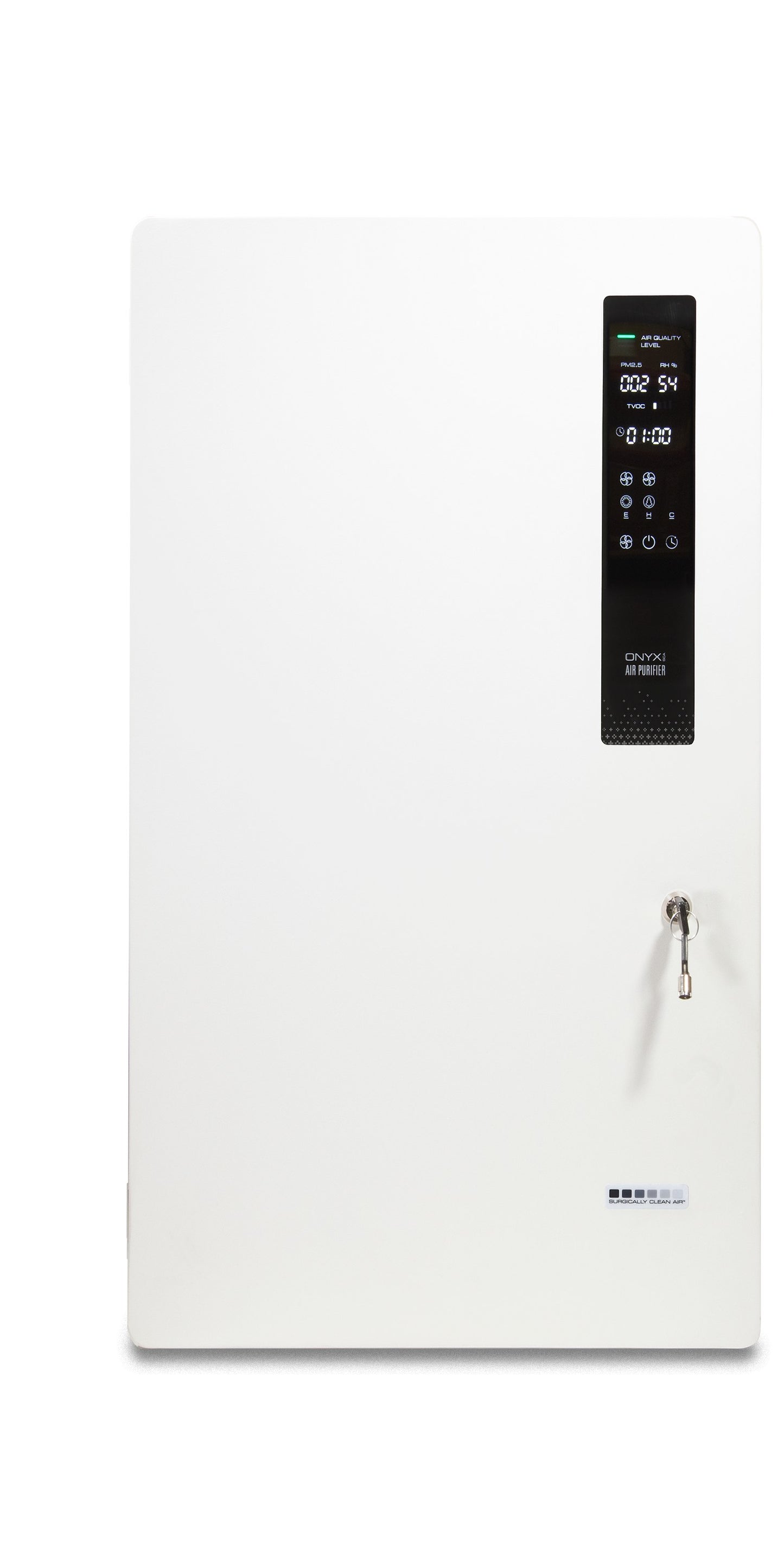

| AP-SCA2000CW | ONYXsca Air Purifier | White |
Also referenced by Surgically Clean Air as SCA2000C, APSCA2000CB and APSCA2000CW (unhyphenated form).
Surgically Clean Air does not publish a wattage, CADR or CARB listing for the ONYXsca. Ask us and we will get the current figures from SCA rather than estimate them.
Sizing this unit for your room
Size on air volume, not floor area. Required airflow in CFM = (length × width × ceiling height ÷ 60) × your target air changes per hour (ACH).
At 5 ACH, one ONYXsca covers about 320 sq ft under a 9 ft ceiling, or 240 sq ft under a 12 ft ceiling. Ceiling height changes the answer as much as floor area does, which is why a single square-footage rating cannot describe every room.
Use the sizing selector to get a unit count for your exact dimensions, or send us the room and we will size it.
Filters, warranty and support
Replacement filters, UV lamps and parts come directly from Surgically Clean Air. As an authorized partner we register your unit with SCA at the point of sale, so your warranty and filter schedule are on file from day one and technical support comes from the manufacturer's own engineers.
Warranty is one year from the date the unit ships from Surgically Clean Air. Full terms: surgicallycleanair.com/warranty-service.
Surgically Clean Air®, JADE®, ONYXsca®, COBALT® and ATOMIKAIR® are registered trademarks of Surgically Clean Air LLC. LabSupplies.com is an authorized partner. Specifications are the manufacturer’s published figures and are subject to change.
