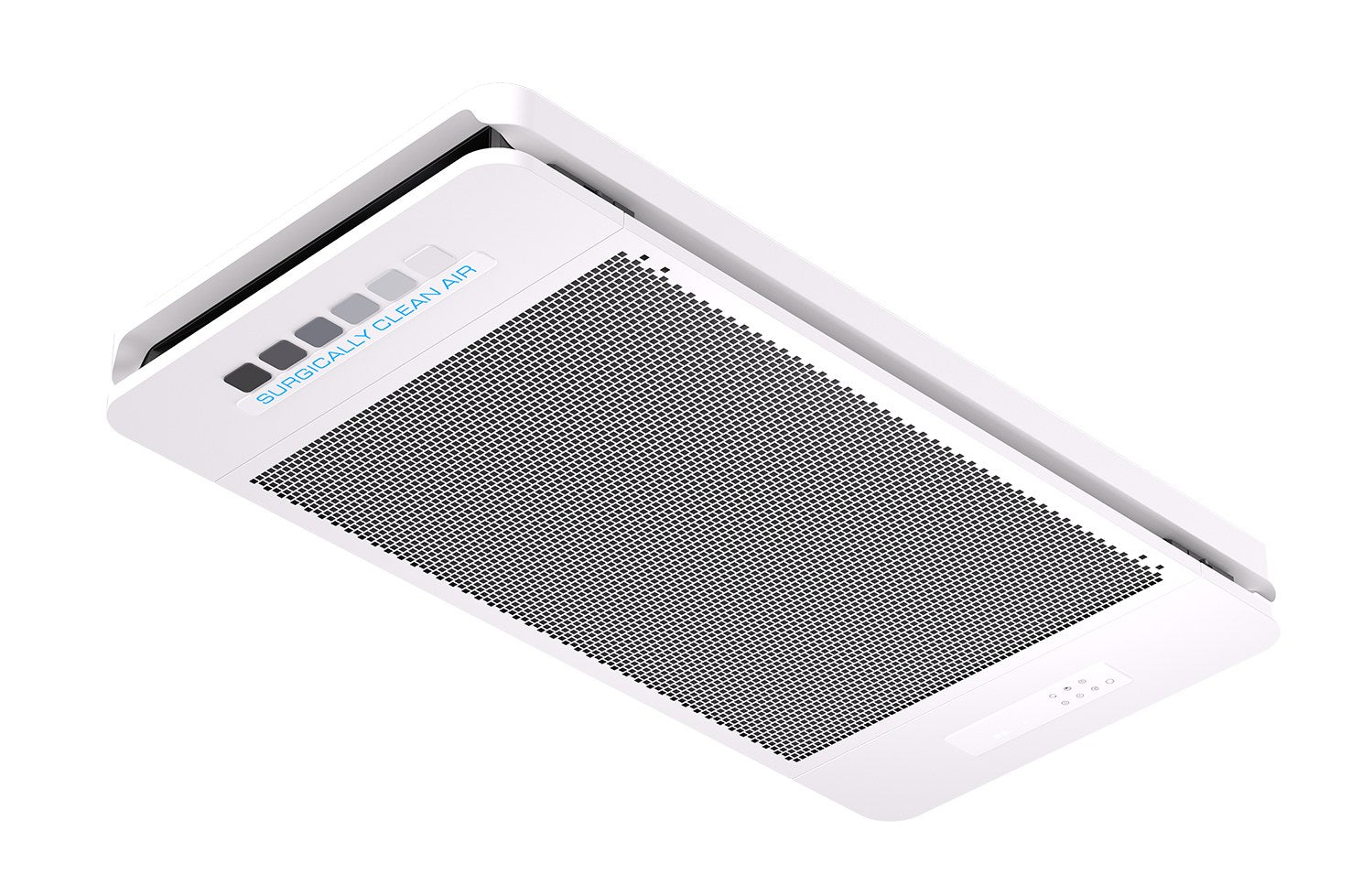

The COBALT® 2×4 drops into a standard suspended T-bar grid in place of one 24 × 48 in ceiling tile. It takes no floor space, puts nothing within reach of occupants, and moves 1,171 CFM through a MERV 16 HEPA-RX medium rated at 99.97% at 0.3 µm. Occupancy sensors step the fans automatically, and the illuminated logo signals a filter change.
Specifications
| Parameter | Specification |
|---|---|
| Model | COBALT® 2×4 (SCA14024W120V) |
| Dimensions | 49 × 21 × 14 in (1245 × 535 × 360 mm) |
| Ceiling tile replaced | 24 × 48 in |
| Weight | 96 lbs |
| Airflow | 1,171 CFM |
| Manufacturer coverage | Up to 2,152 sq ft |
| Sound level | 30.6 to 51.9 dB(A) |
| Power | 250 W, 120V |
| Filtration | MERV 16 HEPA-RX, 99.97% at 0.3 µm, 2 filters per unit |
| Optional filtration | HEPA carbon hybrid for odour and VOC control |
| Fans | Dual turbo fans |
| Controls | Smart occupancy sensors with automatic fan speed, auto mode |
| Filter alert | Illuminated logo indicates filter replacement |
| Installation | Standard suspended T-bar ceiling grid |
| Certification | UL / ETL listed |
| Warranty | 1 year |
Part numbers
| Part number | Configuration | Colour |
|---|---|---|
| AP-SCA14024W120V | COBALT 2×4 Ceiling Air Purifier, 120V | White |
Also referenced by Surgically Clean Air as SCA14024W120V (unhyphenated form).
Check the grid before you order. The unit weighs 96 lbs. Your contractor should confirm the ceiling grid and any seismic bracing are rated for the load. Filters are supplied as a 2-pack per unit.
Freight quoted at order. This unit ships by freight carrier rather than parcel. Tell us the delivery site and whether a loading dock or liftgate is available and we will confirm the delivered cost before you commit.
Sizing this unit for your room
Use the sizing selector to get a unit count for your exact dimensions, or send us the room and we will size it.
Filters, warranty and support
Replacement filters, UV lamps and parts come directly from Surgically Clean Air. As an authorized partner we register your unit with SCA at the point of sale, so your warranty and filter schedule are on file from day one and technical support comes from the manufacturer's own engineers.
Surgically Clean Air®, JADE®, ONYXsca®, COBALT® and ATOMIKAIR® are registered trademarks of Surgically Clean Air LLC. LabSupplies.com is an authorized partner. Specifications are the manufacturer’s published figures and are subject to change.
Questions about the Surgically Clean Air COBALT 2x4 Ceiling Air Purifier
What are the dimensions and weight of the Surgically Clean Air COBALT 2x4 Ceiling Air Purifier?
Dimensions: 49 × 21 × 14 in (1245 × 535 × 360 mm); Weight: 96 lbs.
What power does the Surgically Clean Air COBALT 2x4 Ceiling Air Purifier need?
Power: 250 W, 120V.
