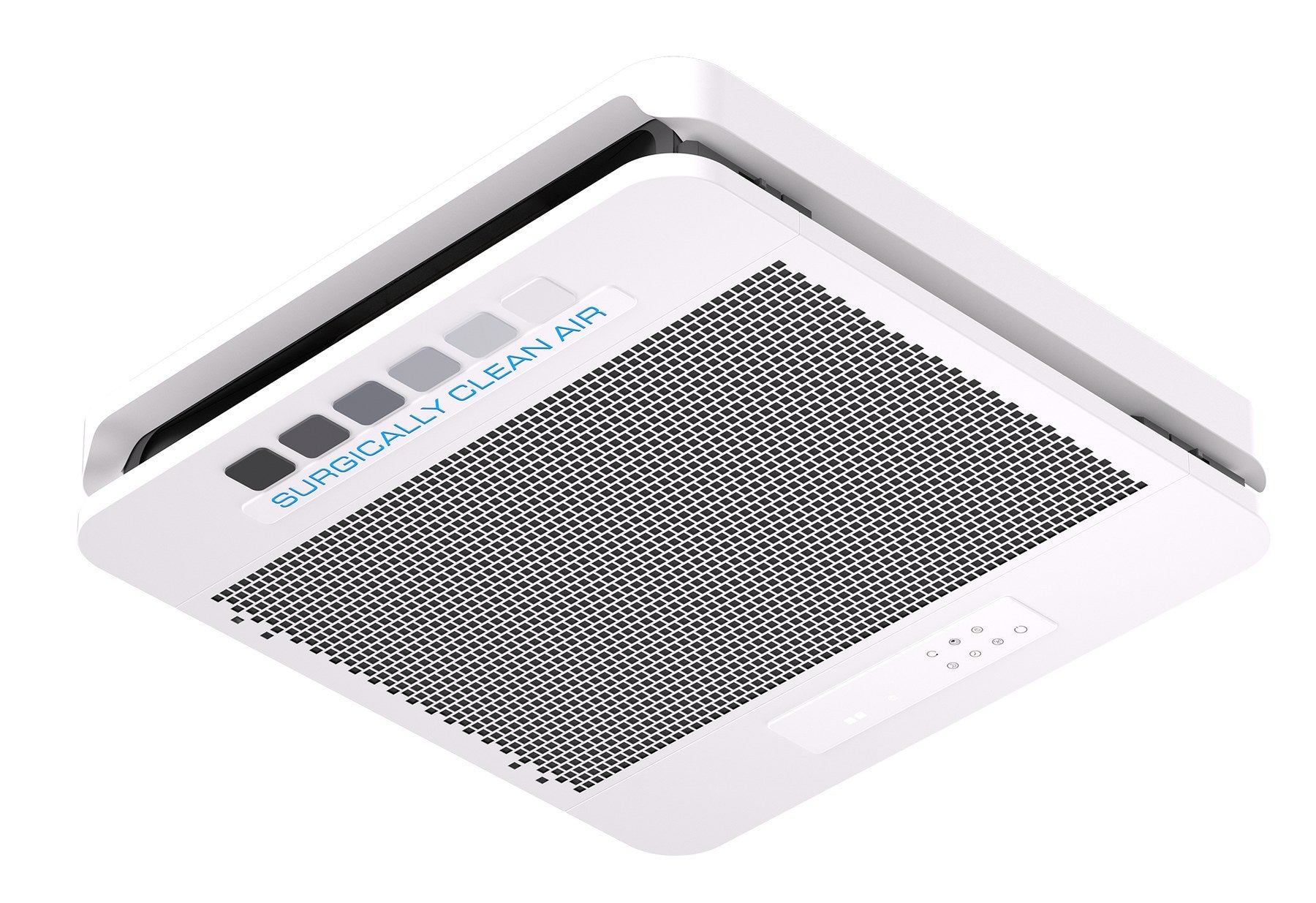

The COBALT® 2×2 drops into a standard suspended T-bar grid in place of one 24 × 24 in ceiling tile. It takes no floor space, puts nothing within reach of occupants, and moves 430 CFM through a MERV 16 HEPA-RX medium rated at 99.97% at 0.3 µm. Occupancy sensors step the fans automatically, and the illuminated logo signals a filter change.
Specifications
| Parameter | Specification |
|---|---|
| Model | COBALT® 2×2 (SCA14022W120V) |
| Dimensions | 25 × 25 × 10 in (636 × 636 × 255 mm) |
| Ceiling tile replaced | 24 × 24 in |
| Weight | 44 lbs |
| Airflow | 430 CFM |
| Manufacturer coverage | Up to 861 sq ft |
| Sound level | 22.5 to 47.5 dB(A) |
| Power | 70 W, 120V |
| Filtration | MERV 16 HEPA-RX, 99.97% at 0.3 µm, 2 filters per unit |
| Optional filtration | HEPA carbon hybrid for odour and VOC control |
| Fans | Dual turbo fans |
| Controls | Smart occupancy sensors with automatic fan speed, auto mode |
| Filter alert | Illuminated logo indicates filter replacement |
| Installation | Standard suspended T-bar ceiling grid |
| Certification | UL / ETL listed |
| Warranty | 1 year |
Part numbers
| Part number | Configuration | Colour |
|---|---|---|
| AP-SCA14022W120V | COBALT 2×2 Ceiling Air Purifier, 120V | White |
Also referenced by Surgically Clean Air as SCA14022W120V (unhyphenated form).
Check the grid before you order. The unit weighs 44 lbs. Your contractor should confirm the ceiling grid and any seismic bracing are rated for the load. Filters are supplied as a 2-pack per unit.
Freight quoted at order. This unit ships by freight carrier rather than parcel. Tell us the delivery site and whether a loading dock or liftgate is available and we will confirm the delivered cost before you commit.
Sizing this unit for your room
Size on air volume, not floor area. Required airflow in CFM = (length × width × ceiling height ÷ 60) × your target air changes per hour (ACH).
At 5 ACH, one COBALT 2×2 covers about 573 sq ft under a 9 ft ceiling, or 430 sq ft under a 12 ft ceiling. Ceiling height changes the answer as much as floor area does, which is why a single square-footage rating cannot describe every room.
Use the sizing selector to get a unit count for your exact dimensions, or send us the room and we will size it.
Filters, warranty and support
Replacement filters, UV lamps and parts come directly from Surgically Clean Air. As an authorized partner we register your unit with SCA at the point of sale, so your warranty and filter schedule are on file from day one and technical support comes from the manufacturer's own engineers.
Warranty is one year from the date the unit ships from Surgically Clean Air. Full terms: surgicallycleanair.com/warranty-service.
Surgically Clean Air®, JADE®, ONYXsca®, COBALT® and ATOMIKAIR® are registered trademarks of Surgically Clean Air LLC. LabSupplies.com is an authorized partner. Specifications are the manufacturer’s published figures and are subject to change.
