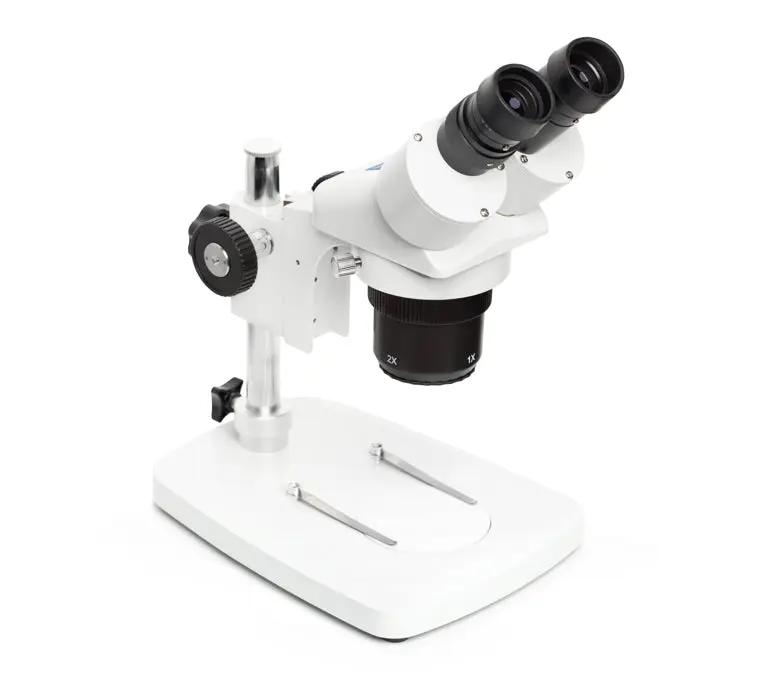

The LW Scientific DM Dual-Mag stereo microscope gives you quick 10×/30× magnification switching with true three-dimensional depth — ideal for dissection, specimen inspection, and teaching. Integrated dual-LED lighting (top and bottom) delivers shadow-free viewing, while the binocular head rotates a full 360° for comfortable, shared use.
Key Features
- Quick 10× / 30× dual magnification with 1× and 3× paired objectives
- Integrated dual LED — select top, bottom, or both for shadow-free lighting
- Binocular head, 45° inclined and 360° rotatable for shared viewing
- Rack-and-pinion focus with adjustable tension and an 88.9 mm working distance
Specifications
| Specification | Detail |
|---|---|
| Magnification | 10× and 30× (dual, switchable) |
| Objectives | 1× and 3× paired |
| Eyepieces | WF10×/20 mm, locked (optional 5×, 15×, 20×) |
| Field of view | 20 mm |
| Head | Binocular, 45° inclined, 360° rotatable |
| Illumination | Dual LED (top & bottom); knob selects top, bottom, or both |
| Stage | 94.5 mm frosted-glass plate; reversible black/white plate included |
| Working distance | 88.9 mm |
| Maximum specimen height | 120 mm |
| Focus | Rack & pinion, adjustable tension, coarse & fine |
| Interpupillary distance | 55–75 mm |
| Diopter adjustment | ±5 (left eyepiece) |
| Optional accessories | 0.5× supplementary lens; protective lens |
| Construction | Aluminum alloy, acid- and reagent-resistant finish |
| Dimensions | 6" W × 8.5" D; height 14"–17.5" (adjustable) |
| Weight | 8 lb |
| Power | 110–220V AC, 50/60 Hz |
Compare the DM Dual-Mag Stereo Family
| Model | Magnification | Stand | Illumination | Best for |
|---|---|---|---|---|
| DMM-S13N-7LL3 (this model) | 10× / 30× | Pole stand | Dual LED (top & bottom) | Everyday bench work with built-in light |
| DMM-S13N-PL77 | 10× / 30× | Pole stand | None — add your own | Labs that already have a light source |
| DMM-S12N-PA77 | 10× / 20× | Flex-arm with C-clamp | None — add your own | Large parts and extended reach |
Applications
The DM Dual-Mag stereo microscope suits high-school and university biology labs, dissection and specimen preparation, electronics and industrial inspection, and quality-control work that benefits from fast low- and higher-power switching.
Frequently Asked Questions
What magnification does the DMM-S13N-7LL3 provide?
It switches quickly between 10× and 30× using 1× and 3× paired objectives with WF10× eyepieces.
Does the DMM-S13N-7LL3 come with a light?
Yes — it has integrated dual-LED illumination, and a knob lets you use the top light, bottom light, or both for shadow-free viewing.
How large a specimen can the DMM-S13N-7LL3 handle?
It has an 88.9 mm working distance and accepts specimens up to 120 mm tall, with a reversible black/white stage plate.
How is the DMM-S13N-7LL3 different from the S13N-PL77 and S12N-PA77?
The S13N-7LL3 includes a dual-LED pole stand; the S13N-PL77 is the same 10×/30× scope without a light; the S12N-PA77 is a 10×/20× version on a flex-arm boom stand. See the comparison chart above.
Parts and accessories for the DM Dual-Mag Stereo Microscope
LW Scientific lists these 11 part numbers for DMM-S13N-7LL3:
| Part number | Part | Type |
|---|---|---|
| Z4E-1020-30HP | 10x/20 mm High-Point Stereo Eyepiece | Microscope Eyepieces |
| MSE-1615-3077 | 16x/15 mm Eyepiece, 30 mm | Microscope Eyepieces |
| MSE-2012-30HP | 20x/12 mm Eyepiece, 30 mm | Microscope Eyepieces |
| DMH-S12X-77NE | DM Dual-Mag 1x/2x Stereo Head with 10x Eyepieces | Microscope Heads & Camera Tubes |
| DMH-S13X-77NE | DM Dual-Mag 1x/3x Stereo Head with 10x Eyepieces | Microscope Heads & Camera Tubes |
| DMH-S24X-77NE | DM Dual-Mag 2x/4x Stereo Head with 10x Eyepieces | Microscope Heads & Camera Tubes |
| DMP-LNS7-050X | 0.5x Auxiliary Lens for DM | Stereo Microscope Stands, Arms & Lenses |
| DMB-BSEP-7777 | DM Pole-Mount Stand (No Light) | Stereo Microscope Stands, Arms & Lenses |
| DMB-BSED-7LL3 | Dual-LED Stereo Stand, 76 mm Focus Rack | Stereo Microscope Stands, Arms & Lenses |
| DMP-LNS7-PRTR | Lens Protector & Mounting Ring for DM | Stereo Microscope Stands, Arms & Lenses |
| Z3B-BMS7-PA77 | Pneumatic Flex Arm on C-Clamp, 76 mm Head Holder | Stereo Microscope Stands, Arms & Lenses |
Browse by type: Microscope Eyepieces, Microscope Heads & Camera Tubes, Stereo Microscope Stands, Arms & Lenses.
Every LW Scientific part number is on the LW Scientific catalog page, which filters by the model you own.
