The Stackbin No. 3 packing workstation gives multi-user packing lines 12 in of work-height travel on a 14 gauge arc-welded steel frame. A 1-3/4 in top in laminate, ESD laminate or maple butcher block sits under an overhead structure with a light fixture, a 12 in deep steel shelf, a spool holder and a 4-outlet electrical strip. Widths run 60 to 96 in in 30 or 36 in depths, and an ESD top fits a lab sample-shipping desk.
Key features
- Work surface: 1-3/4 in thick top in plastic laminate (safety or square edge), ESD laminate or maple butcher block (square edge)
- Sizes: 60, 72 or 96 in wide in 30 or 36 in depths
- Height: 12 in lift range; listed work height falls between 28 and 41-1/4 in depending on configuration
- Power: rear-mounted 4-outlet electrical strip with 15 A, 125 V outlets; cUL certified
- Overhead structure with light fixture, 12 in deep steel shelf and adjustable spool holder
- Carton storage: full-depth bottom shelf and carton shelving with hoop dividers (10 or 12 hoops by size); monitor arm with keyboard and mouse tray on configurations that list it
- Frame: 14 gauge arc-welded steel legs, 16 gauge steel accessories, gray finish, made in the USA; 1,000 lb capacity
Specifications
| Brand | Stackbin |
|---|---|
| Work-surface width | 60" / 72" / 96" |
| Work-surface depth | 30" / 36" |
| Mounting | Stationary |
| Weight capacity | 1,000 lb |
| Work-surface height | 29-1/4 - 41-1/4 in |
| Overall height | 77 - 89 in |
| Top thickness | 1-3/4 in |
| Edge | Safety edge / Square edge |
| Leg style | C-Channel Leg / Econo Leg |
| Legs | Adjustable |
| Shelves | 3 |
| Power | 15 Amp, 125 Volt Outlets |
| Electrical certification | cUL |
| Frame color | Gray |
| Assembly required | Yes |
| Country of origin | USA |
Ordering information
| Part number | Size | Top | Height |
|---|---|---|---|

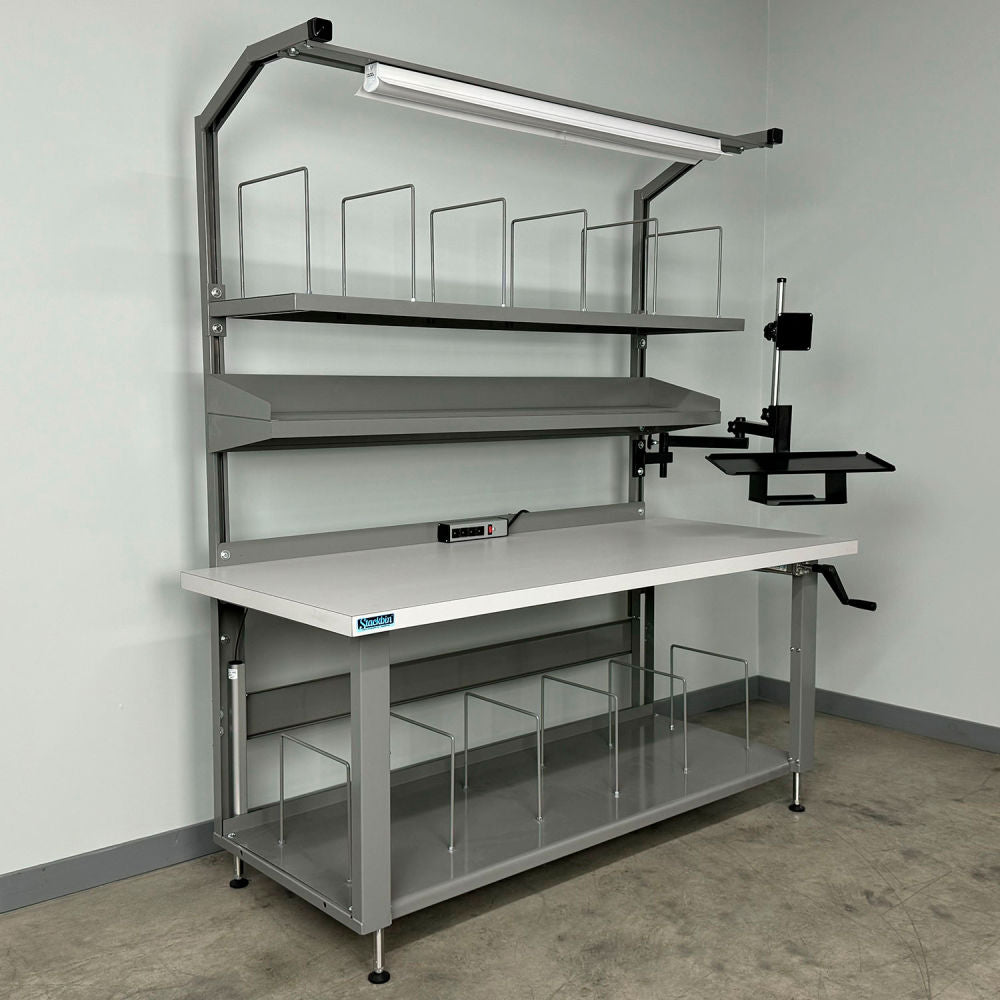

| 4-5XPACK-3E-GY | 60" W × 36" D | ESD Laminate, Square Edge | 29-1/4 - 41-1/4 in work surface |

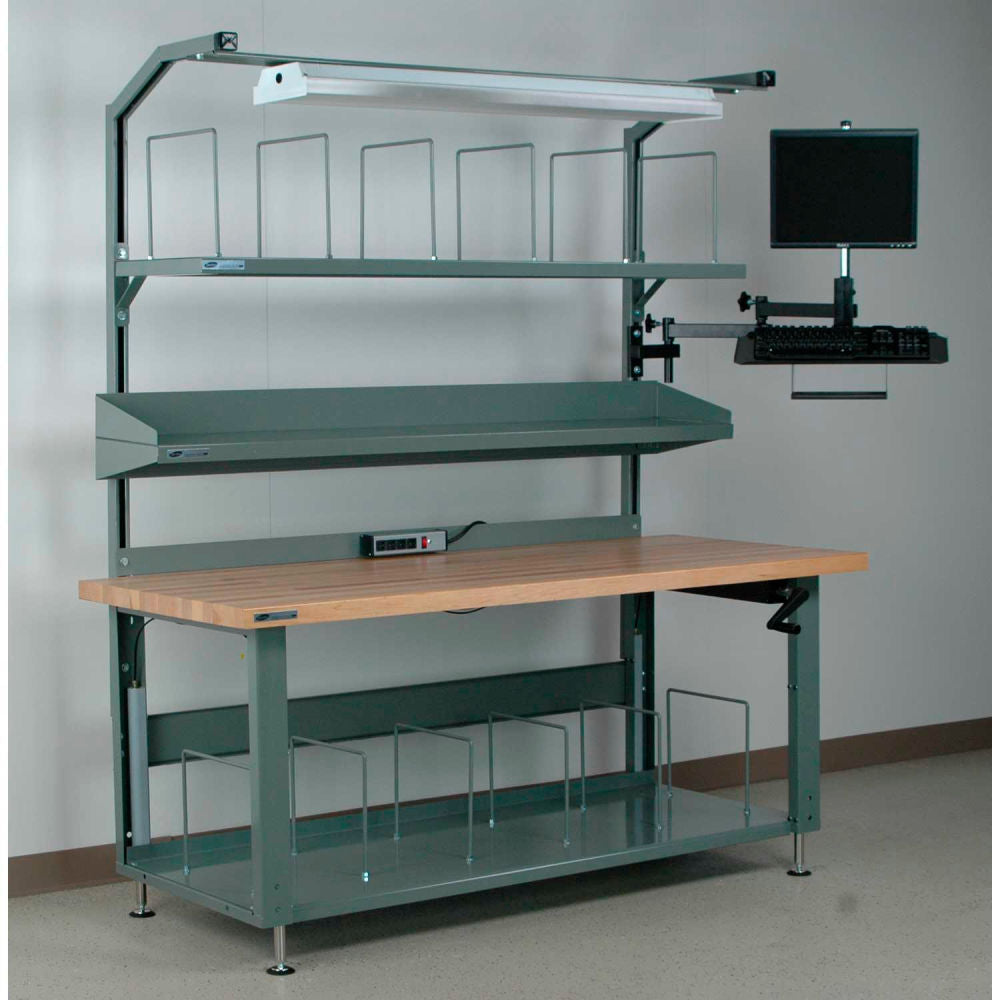

| 4-5XPACK-3M-GY | 60" W × 36" D | Maple Butcher Block, Square Edge | 77 - 89 in overall |
| 4-6PACK-3E-GY | 72" W × 30" D | ESD Laminate, Square Edge | 29-1/4 - 41-1/4 in work surface |

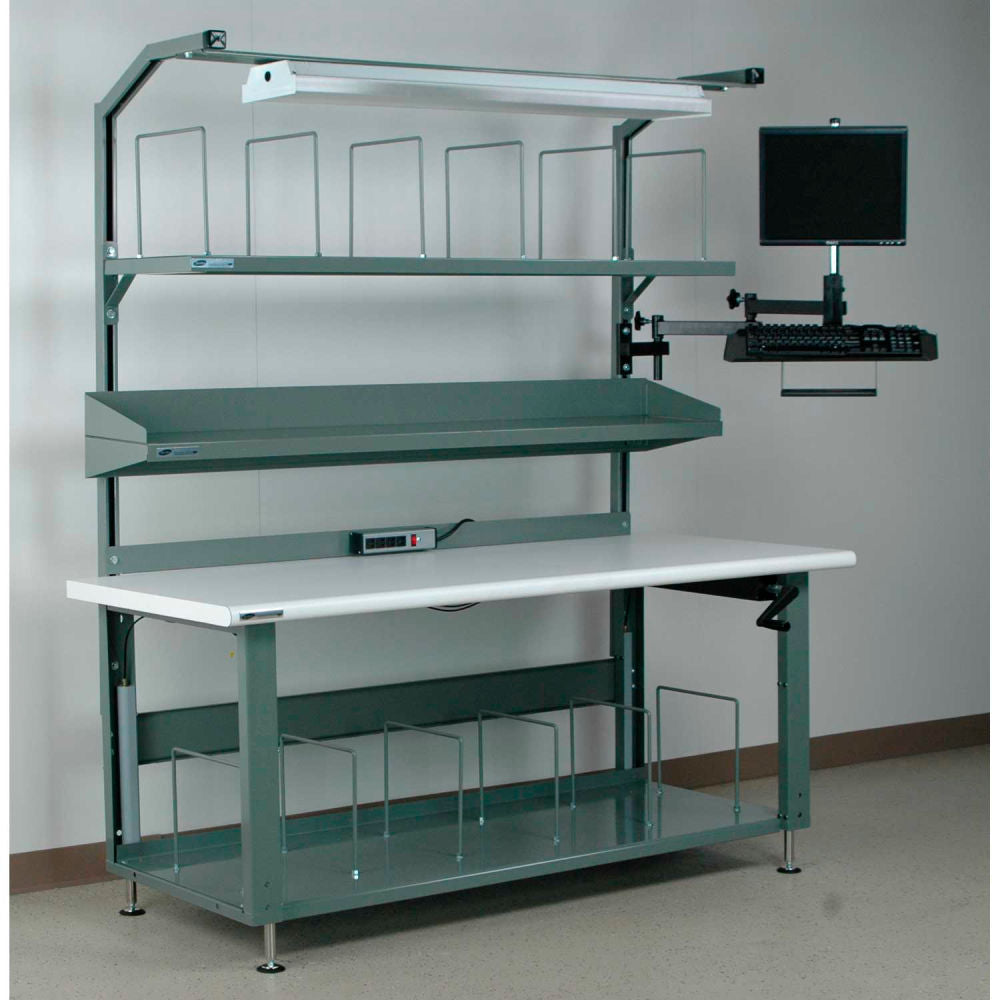

| 4-6PACK-3C-GY | 72" W × 30" D | Laminate, Safety Edge | 77 - 89 in overall |
| 4-6XPACK-3E-GY | 72" W × 36" D | ESD Laminate, Square Edge | 29-1/4 - 41-1/4 in work surface |

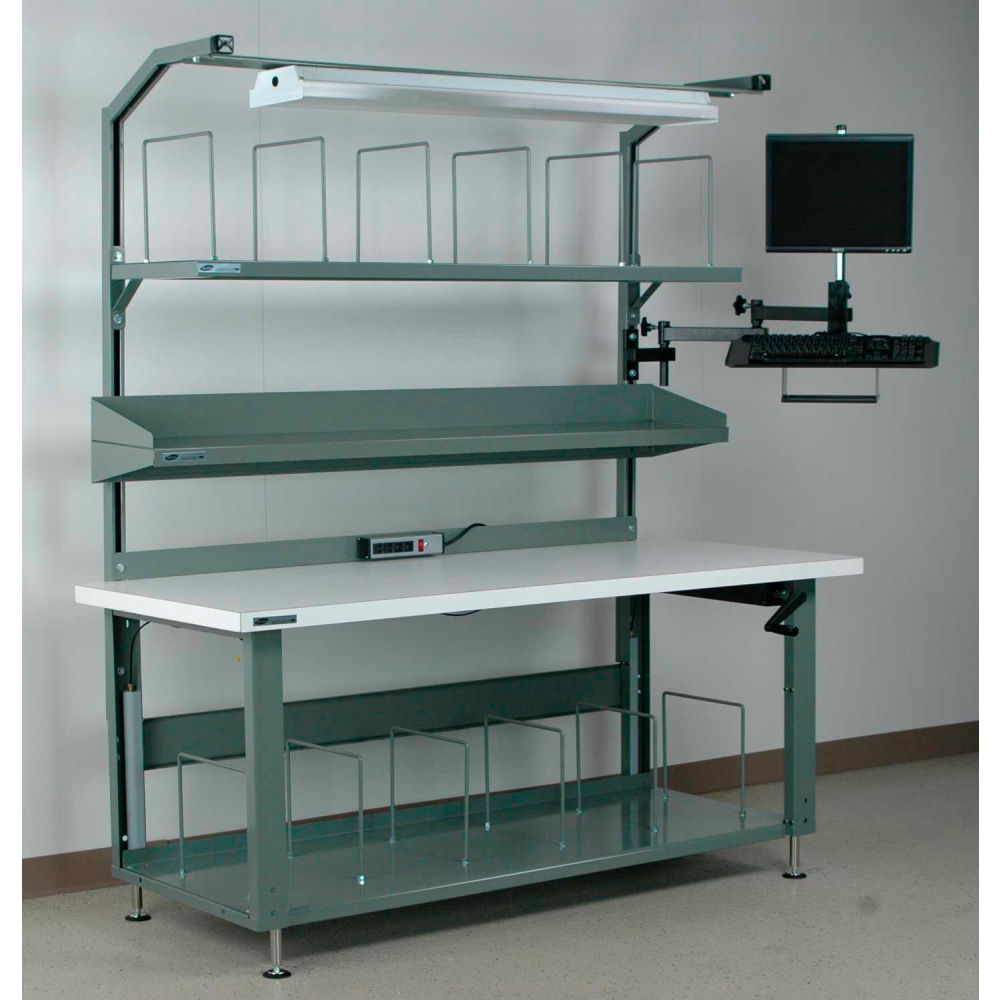

| 4-6XPACK-3-GY | 72" W × 36" D | Laminate, Square Edge | 77 - 89 in overall |

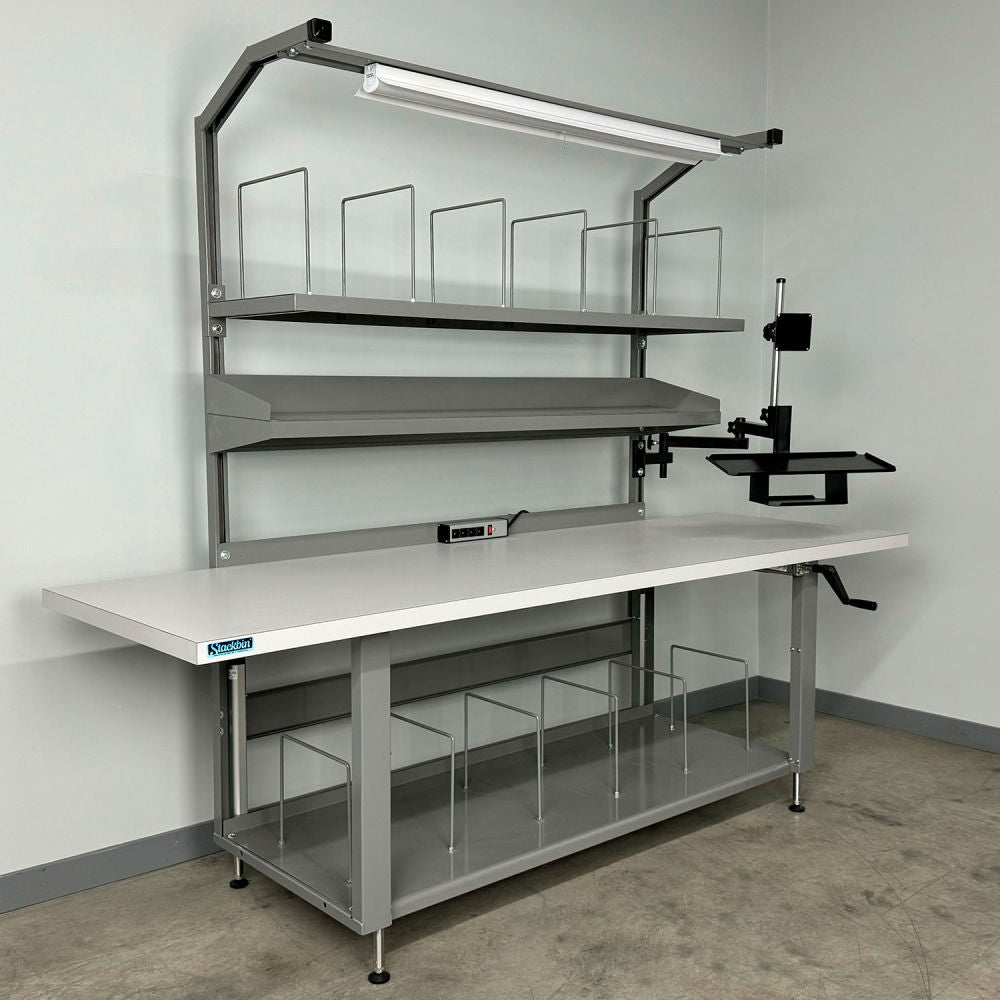

| 4-8PACK-3E-GY | 96" W × 30" D | ESD Laminate, Square Edge | 29-1/4 - 41-1/4 in work surface |
| 4-8PACK-3M-GY | 96" W × 30" D | Maple Butcher Block, Square Edge | 77 - 89 in overall |
| 4-8XPACK-3E-GY | 96" W × 36" D | ESD Laminate, Square Edge | 29-1/4 - 41-1/4 in work surface |
| 4-8XPACK-3-GY | 96" W × 36" D | Laminate, Square Edge | 77 - 89 in overall |
Questions about the Stackbin No. 3 Adjustable Height Packing Workbench with Outlet Strip & Overhead Light
How far does the lift on the Stackbin No. 3 workbench with outlet strip raise the work surface?
The lift system provides 12 in of height adjustment. The listed work-height range depends on configuration, falling between 28 and 41-1/4 in.
What are the outlet specs on the Stackbin No. 3 electrical strip?
It is a 4-outlet strip with 15 A, 125 V outlets on a rear mount rail, and the bench is cUL certified.
What gauge steel is the Stackbin No. 3 frame?
Legs are 14 gauge steel with full arc welds; accessories are 16 gauge steel.
Are bins and packaging paper included with the Stackbin No. 3?
No. Bins and packaging paper are sold separately.
