Diamond Shell 384-Well PCR Plate, Clear PC Frame with PP Wells, A24 Single-Notch Alignment — 50 Plates/Case
The Globe Scientific Diamond Shell 384-Well PCR Plate pairs a rigid clear polycarbonate skirt with thin-walled polypropylene wells for fast, uniform heat transfer in high-throughput qPCR, end-point PCR, and genotyping. Its two-component construction resists warping across thermal cycling, while the A24 single-notch corner guarantees consistent plate orientation in automated liquid handlers and cyclers.
Technical Specifications
| Product Type | Two-component 384-well PCR plate |
| Volume/Size | 384 wells, standard SBS/ANSI footprint |
| Material | Clear polycarbonate (PC) frame; polypropylene (PP) wells |
| Closure/Cap | Open top; compatible with adhesive films and sealing mats (sold separately) |
| Alignment | A24 single-notch corner cut |
| Sterility | Non-sterile |
| Pack Size | 50 plates per case |
Available Options
| White wells, clear PC frame — Box of 10 | PCR-DS-384-CW | $79.00 |
| Clear PP wells, clear PC frame — Box of 10 | PCR-DS-384-C | $70.00 |
Applications
- High-throughput real-time qPCR and reaction setup across 384 wells
- SNP genotyping and allelic discrimination assays
- Gene expression profiling and reverse-transcription PCR
- End-point PCR amplification on standard 384-well thermal cyclers
- Automated liquid-handler workflows requiring fixed plate orientation
- Fluorescence-based detection, where white wells boost signal reflectance
Chemical Resistance
| Aqueous buffers | Excellent |
| Dilute acids | Good |
| Dilute bases | Good |
| Alcohols | Good |
| Acetonitrile | Fair |
| Aromatic solvents | Poor |
| Chlorinated solvents | Poor |
Quality & Procurement
Buy through labsupplies.com, an authorized Globe Scientific dealer shipping from US inventory. Each case carries lot numbers that support traceability for CAP-, CLIA-, and ISO 15189-accredited laboratories. Institutional and grant-funded tiered pricing is available — contact us for volume quotes on standing PCR-plate orders.
Frequently Asked Questions
What is the difference between the white and clear well options?

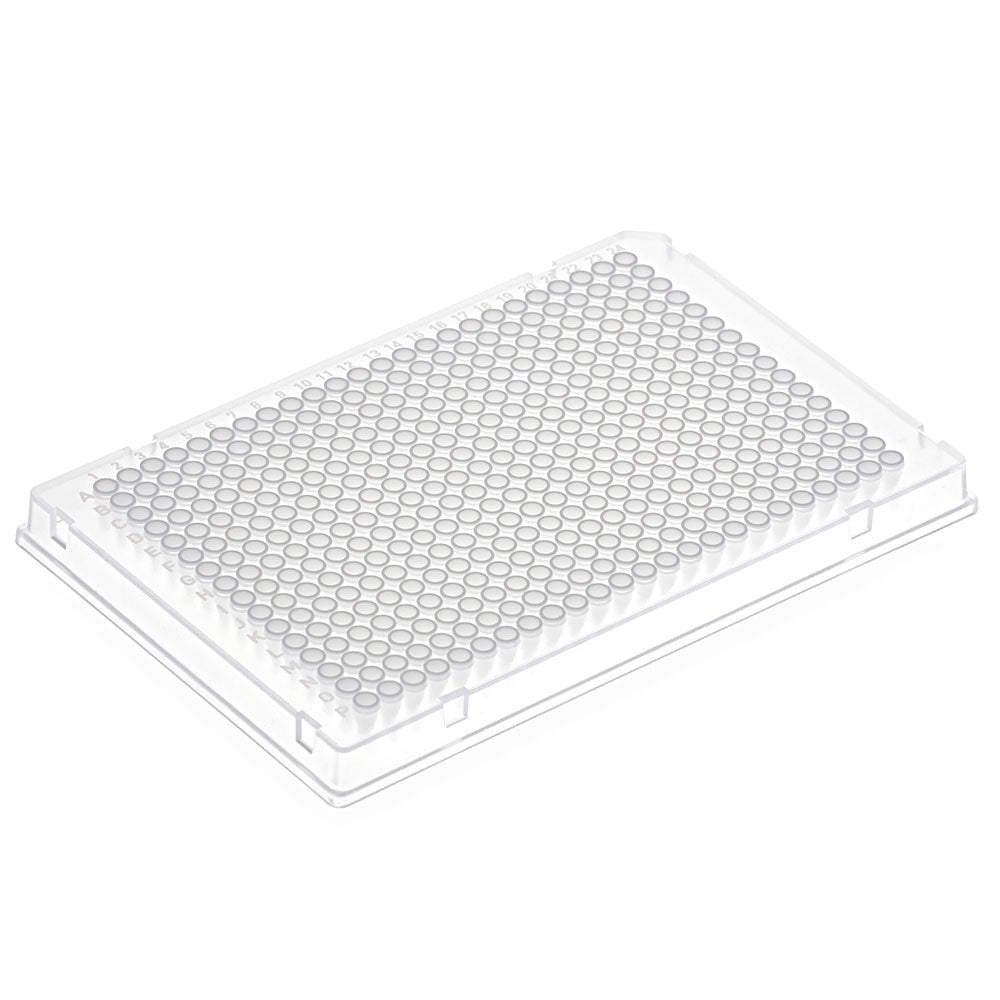

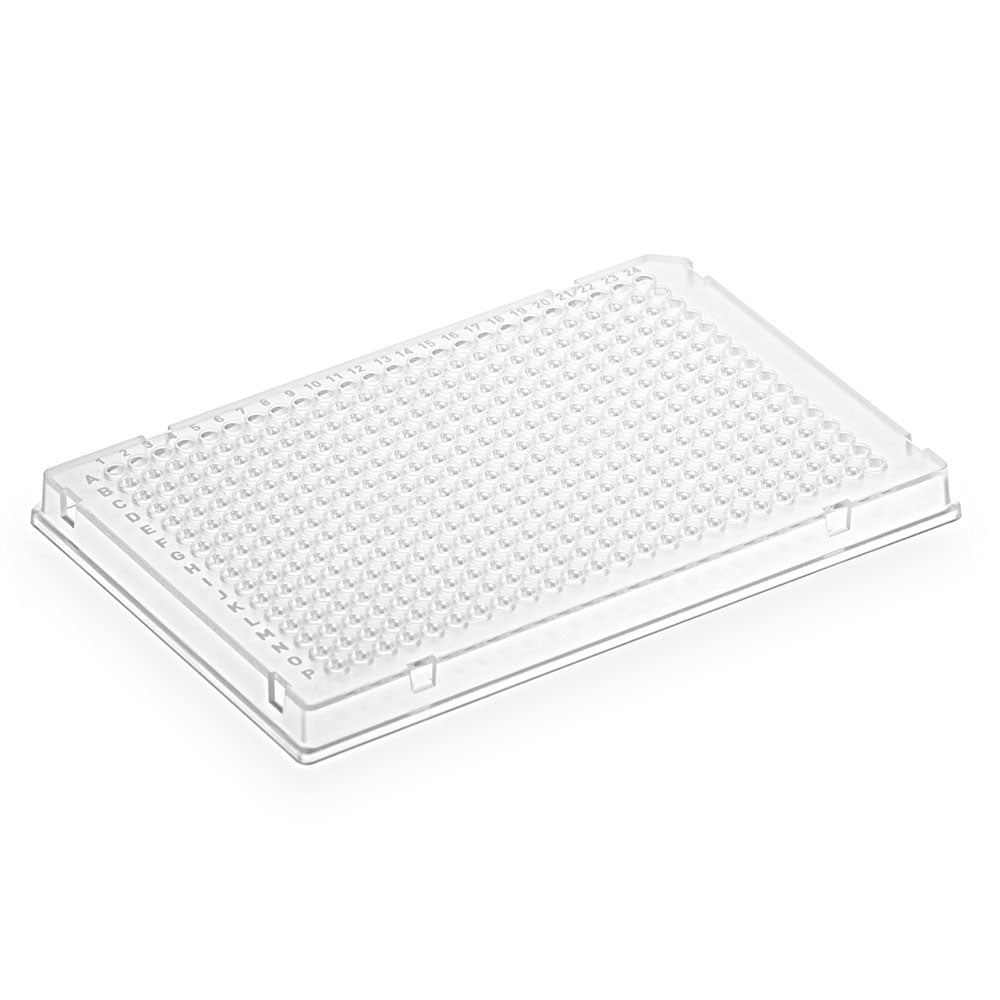

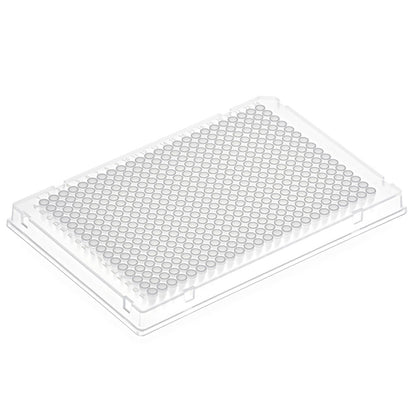

White PP wells (PCR-DS-384-CW) reflect fluorescence to increase detection signal in qPCR, while clear PP wells (PCR-DS-384-C) suit applications where well transparency aids visual inspection. Both share the same clear PC frame and A24 notch.
Why does the plate use a two-component PC frame and PP wells?
The polypropylene wells provide low protein binding and rapid, even heat transfer for tight thermal uniformity. The rigid polycarbonate skirt resists flexing and warping, keeping the plate flat and dimensionally stable through repeated cycling and robotic handling.
What does the A24 single notch indicate?
The A24 single-notch corner is a cut at the A24 position that fixes plate orientation. It prevents misloading in thermal cyclers and automated systems, ensuring well A1 maps consistently across every run.
How are these plates sealed?
The open-top wells accept standard adhesive PCR films, heat-seal foils, and sealing mats sized to the SBS footprint. Sealing consumables are sold separately; choose an optically clear film for real-time detection.
