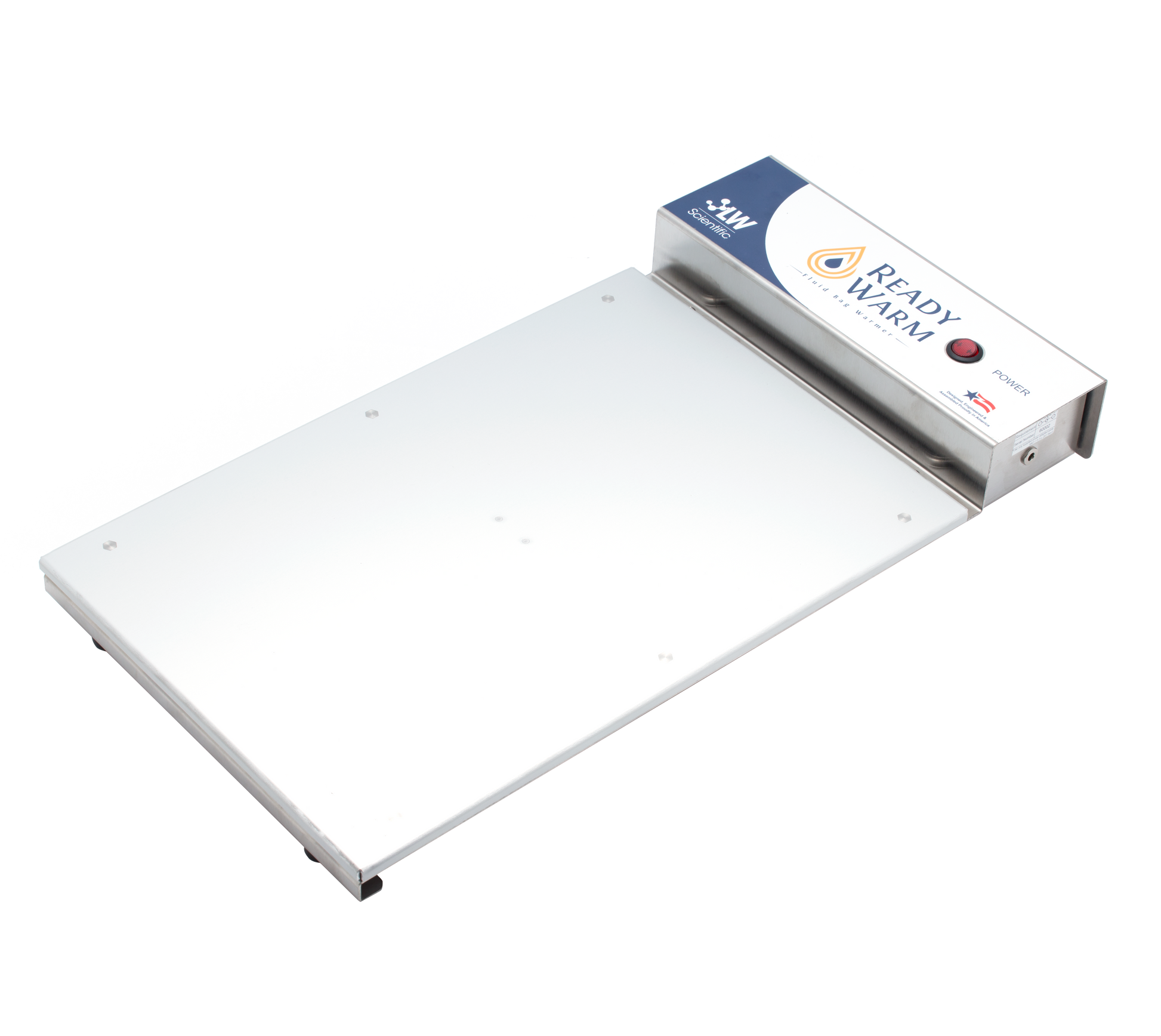

Slide warmers that unevenly heat leave hot spots on one end and cool zones on the other — so slides at the edge stay tacky while center slides burn. The LW Scientific ReadyWarm 66-Slide Table Warmer (FWL-04PL-BTD3) uses a flatbed aluminum heating surface and digital PID controller to deliver edge-to-edge uniform heat for every one of its 66 slides simultaneously. From high-throughput histology batches to busy cytology benches, this flat-table unit gives you the consistency you need without the footprint of a cabinet.
Specifications
| Specification | Detail |
|---|---|
| 66-slide flatbed capacity | warm an entire batch of standard microscope slides simultaneously for maximum throughput |
| Digital PID controller with ±0.1°C stability | eliminates hot spots and maintains precise, repeatable setpoints across the entire surface |
| Temperature range | ambient +5°C to 70°C — covers all standard histology, cytology, and pathology slide drying protocols |
| Corrosion-resistant aluminum heating surface | durable, easy to wipe clean, and resistant to the solvents and fixatives common in histology labs |
| Benchtop flat-table design | low-profile unit requires minimal vertical clearance and fits under standard laboratory cabinets |
| Universal 90–240 VAC power adapter | compatible with any wall outlet worldwide without an additional converter |
| Designed and assembled in Atlanta, Georgia, USA | ISO 13485:2016 certified production ensures consistent quality |
| Cytology slide preparation | warming slides before smear application to improve cell adhesion |
Compare the Slide & Fluid Warming Family
| Model | Type | Format |
|---|---|---|
| SWL-14PL-77DP | Digital slide warmer | 14-slide flatbed |
| FWL-04PL-BTD3 (this model) | ReadyWarm table warmer | 66-slide flatbed |
| FWL-04PL-WAL3 | ReadyWarm wall fluid warmer | Wall-mount, IV bag shelves |
| FWL-TISS-BTH3 | Tissue flotation bath | Lighted, touchscreen |
Digital PID control; SWL/FWL warmers Made in USA.
Frequently Asked Questions
How does the flatbed design differ from a traditional rail-style slide warmer?
The flatbed aluminum surface heats uniformly from edge to edge, while rail-style warmers often concentrate heat along narrow contact points. The flatbed approach means all 66 positions receive the same temperature simultaneously, which is critical for batch consistency in high-throughput labs.
Can the FWL-04PL-BTD3 warm petri dishes as well as slides?
Yes — the flatbed surface accommodates up to 15 standard 100 mm petri dishes as an alternative configuration, making this unit useful for cell culture and microbiology workflows that require gentle, consistent warming.
What is the maximum temperature, and is it safe for paraffin-fixed tissues?
The unit reaches up to 70°C and is designed for slide drying after section mounting. For paraffin flotation itself, a tissue bath (like the FWL-TISS-BTH3) is used first; this warmer then completes the drying and adhesion step at the appropriate temperature for your tissue type and adhesive system.
Is the surface easy to clean between runs?
The corrosion-resistant aluminum surface wipes clean with standard lab wipes or a damp cloth. It withstands routine exposure to ethanol, xylene vapors, and aqueous fixatives common in histology labs without degradation.
