Specifications
| Specification | Detail |
|---|---|
| Temperature | Ambient to 150°F (65.6°C) |
| Control | Digital PID microprocessor |
| Blocks | Interchangeable |
| Country of origin | Made in USA |
Compare the Dry Bath Incubator Family
| Model | Blocks | Capacity |
|---|---|---|
| DBL-40PL-02DP | Two 20-place | 40 × 2 mL tubes |
| DBL-24PL-15DP | 24-place | 24 × 15 mL tubes |
| DBL-08PL-50DP | 8-place | 8 × 50 mL tubes |

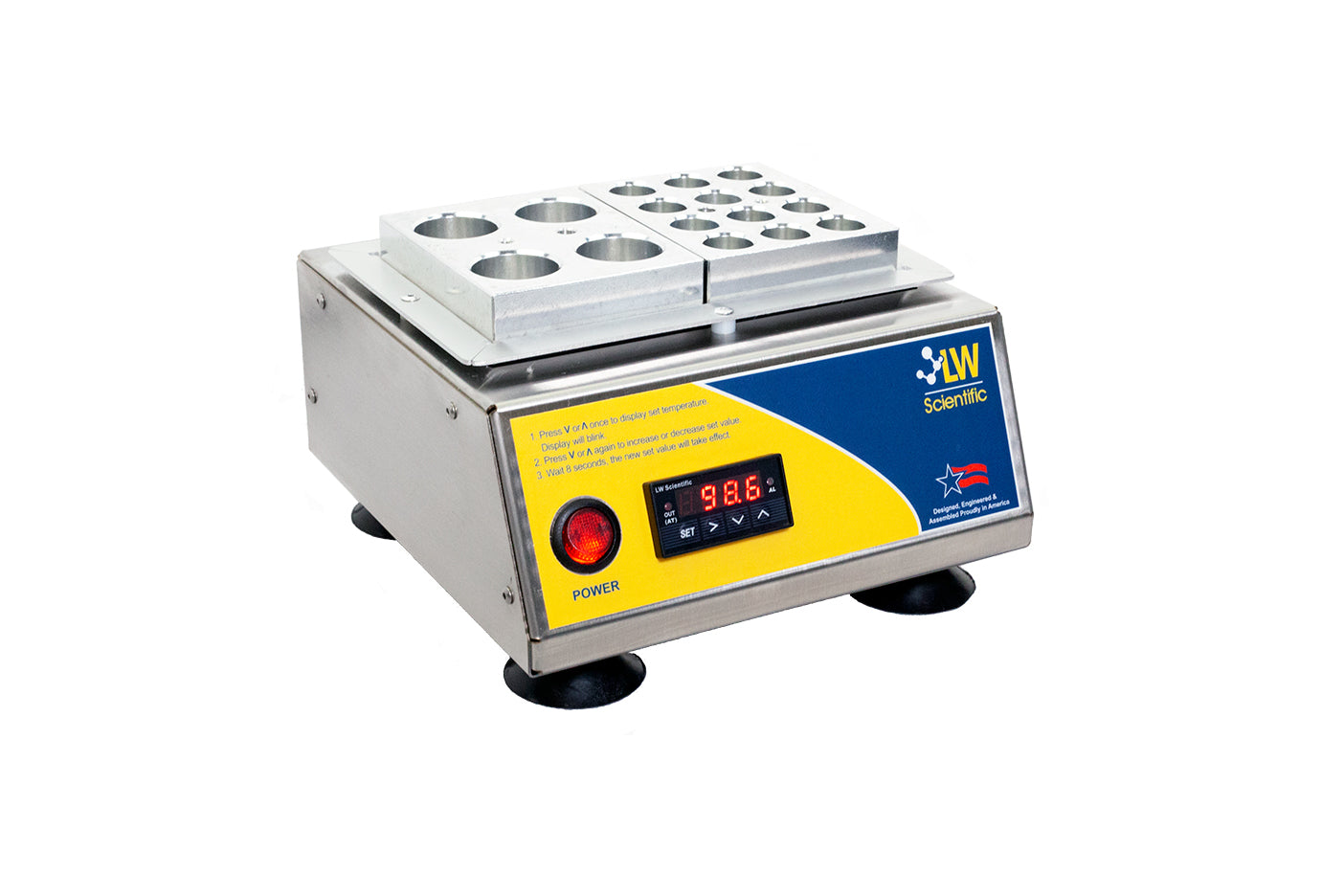

| DBL-16PL-11DP (this model) | Combo (50 mL + 15 mL) | Dual-block |
| DBP-Series | Replacement heat block | Spare / add-on block |
DBL units: digital PID, ambient up to 150°F (65.6°C), Made in USA.
Frequently Asked Questions
What tube sizes does the DBL-16PL-11DP accommodate out of the box?
This unit ships with two blocks: one holds four 50 mL conical tubes (OD 28.5 mm) and the other holds twelve 6–15 mL tubes (OD 17 mm). Both blocks heat to the same temperature from the single digital controller.
Can both blocks be set to different temperatures?
No. Both blocks share a single heating chamber and PID controller, so they operate at the same temperature. If you need independent temperature zones, you would need two separate dry bath units.
Is this the same base unit as the other LW Scientific dry baths?
Yes. The DBL-16PL-11DP uses the identical base unit, PID controller, and housing as the DBL-40PL-02DP (2 mL), DBL-24PL-15DP (15 mL), and DBL-08PL-50DP (50 mL). The only difference is which heat blocks are included.
