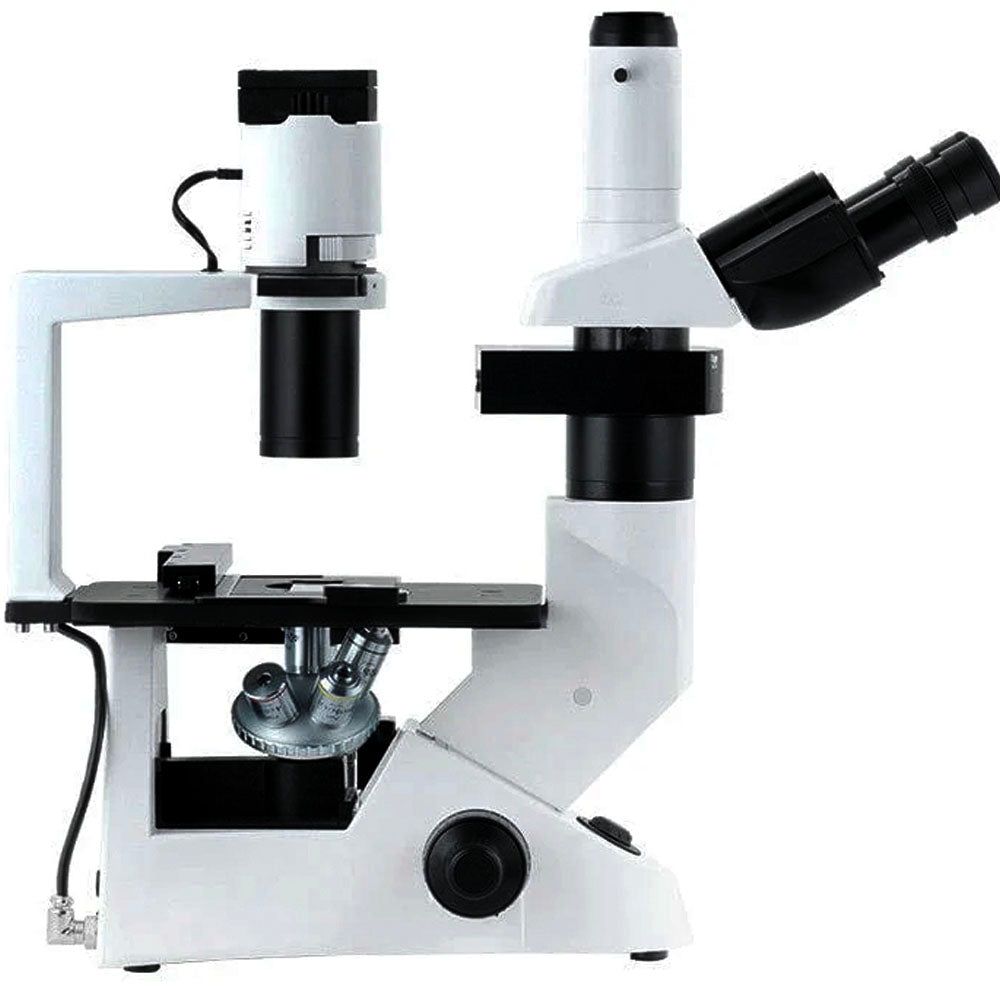

The LW Scientific L1M-T04A-DPH3 is a trinocular inverted microscope for tissue cultures and living cells in flasks and Petri dishes, with infinity Plan Phase 10X and 20X objectives for phase contrast and Plan 4X and 40X for brightfield.
Specifications
| Specification | Detail |
|---|---|
| Series | L1 Inverted |
| Head | Trinocular, 30° inclination, interpupillary distance 48–75 mm |
| Eyepieces | EW 10X/22 extra wide field; centering eyepiece for phase objectives |
| Optical System | Infinity |
| Objectives | Plan 4X and 40X; Plan Phase 10X and 20X |
| Nosepiece | Quintuple |
| Condenser | Abbe condenser with 20X phase |
| Stage | 160 × 250 mm with 70 × 180 mm auxiliary stage; mechanical X-Y stage, coaxial controls, traverse 120 × 78 mm |
| Focus | Vertical objective movement; coarse range 37.7 mm, fine 0.002 mm per rotation |
| Illumination | 6V/30W halogen |
| Accessories Included | Green, blue and neutral filters, dust cover, immersion oil, manual, warranty card |
| Optional Fluorescence | LUMIN Epi-Fluorescence Module i4P-EPiL-485N |
| Weight | 24.0 lb (10.9 kg) |
| Dimensions | 20 in high × 21 in long × 11 in wide (508 × 420 × 279.4 mm) |
Frequently Asked Questions
What is an inverted microscope like the L1M-T04A-DPH3 used for?
An inverted microscope views specimens from below, which is ideal for observing cultures and living cells in flasks and Petri dishes.
Can the L1M-T04A-DPH3 be used for fluorescence?
Yes, with an add-on. LW Scientific lists the LUMIN Epi-Fluorescence Module i4P-EPiL-485N as the optional fluorescence accessory for this microscope.
