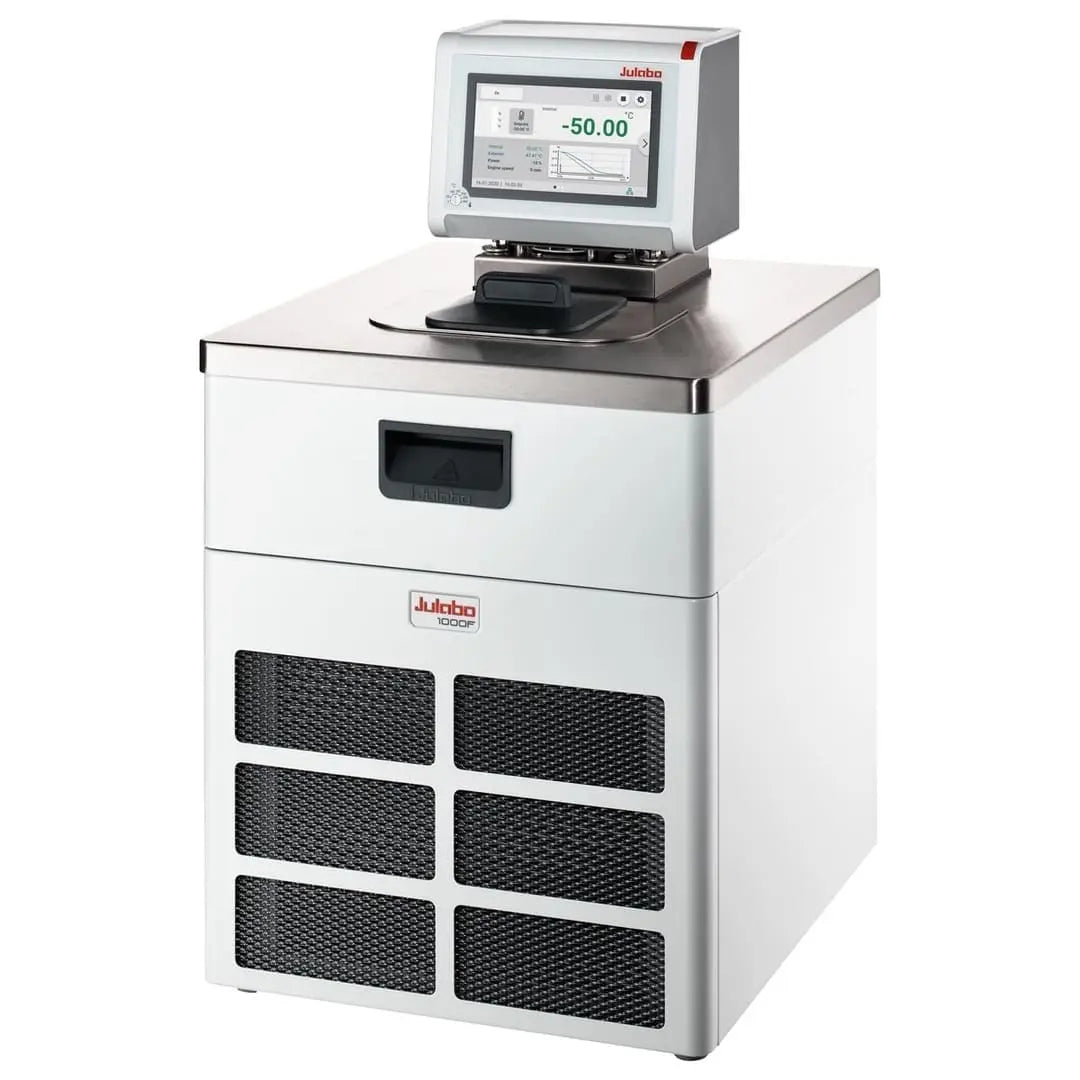

Julabo MAGIO MS-1000F Overview
Julabo MAGIO MS-1000F is a refrigerated/heating circulator built for dynamic temperature control from −50 to +200 °C. A 2 kW heater and staged cooling system reach 1000 W at 20 °C, falling to 110 W at −40 °C. Research labs, pilot plants, and test benches rely on this span for demanding external work.
PID control holds ±0.01 °C, among the tightest stability in its class. An infinitely variable pressure/suction pump moves 16 to 31 L/min at up to 13.3 psi. Strong pump pressure pushes fluid through long external loops, jacketed reactors, and high-resistance circuits.
Color TFT touchscreen, integrated programmer, and multi-lingual interface simplify complex temperature profiles. A Pt100 port enables direct external-sensor control of a reactor or vessel. RS232/RS485, USB, Ethernet, and Modbus TCP/IP cover data logging and automation. The Class III (FL) rating per DIN 12876-1 supports flammable-fluid operation.
Specifications
| Product Type | Refrigerated/Heating Circulator |
|---|---|
| Working Temperature Range | −50 to +200 °C |
| Temperature Stability | ±0.01 °C |
| Heater Capacity | 2 kW |
| Cooling Capacity | 1000 W @ 20 °C · 960 W @ 0 °C · 700 W @ −10 °C · 510 W @ −20 °C · 250 W @ −30 °C · 110 W @ −40 °C |
| Temperature Control | PID |
| Pump | Adjustable pressure/suction centrifugal, 16–31 L/min, 3.5–13.3 psi |
| Pump Connections | M16×1 male, 8/12 mm hose barbs |
| Interface | Color TFT touchscreen; USB-B, RS232/RS485, Ethernet, USB-A (data logging); Pt100 port; Modbus TCP/IP |
| Bath Volume | 5–7.5 L |
| Bath Opening (W×L/D) | 8.7 × 5.9 / 5.9 in |
| Unit Dimensions (W×L×H) | 16.5 × 19.3 × 29.1 in |
| Weight | 119.3 lb |
| Electrical | 200–230 V / 50–60 Hz, NRTL marked (US/Canada) |
| Safety Class | Class III (FL), DIN 12876-1 |
| Country of Origin | Germany |
| Ships From | USA |
Available Sizes and Configurations
| SKU | Description | Pack |
|---|---|---|
| 60403 | MAGIO MS-1000F Refrigerated/Heating Circulator, 200–230 V | Each |
Laboratory Applications
The MAGIO MS-1000F drives process development, scale-up, and reactor temperature control across a −50 to +200 °C span. Its strong pump and Pt100 input suit jacketed glass reactors, where external-sensor feedback keeps the process fluid on target. Battery, semiconductor, and materials labs use the wide range for thermal cycling and stress testing.
Pharmaceutical and chemical groups program multi-step profiles through the touchscreen for documented, repeatable runs. Automation-heavy facilities tie the unit into control systems via Modbus TCP/IP and Ethernet. Pilot plants gain from the pressure/suction pump that sustains flow through demanding external circuits.
Ordering & Bulk Pricing
Order the MAGIO MS-1000F (SKU 60403) from LabSupplies.com, an authorized Julabo dealer shipping from USA inventory. Each unit carries the standard Julabo manufacturer warranty. Volume and tiered quantity discounts apply to multi-unit and facility orders.
Product Documentation
Frequently Asked Questions
What temperature range and stability does the MAGIO MS-1000F deliver?
It controls fluid from −50 to +200 °C and holds ±0.01 °C through PID regulation. Cooling capacity reaches 1000 W at 20 °C and 110 W at −40 °C.
Can it control temperature from an external sensor on a reactor?
Yes. A Pt100 port reads an external sensor so the controller targets the process fluid rather than the bath. The pressure/suction pump then sustains flow through the connected loop.
What interfaces does the MS-1000F provide for automation?
It offers a color TFT touchscreen, integrated programmer, and USB, RS232/RS485, and Ethernet ports. Modbus TCP/IP support lets it integrate into facility control systems.
