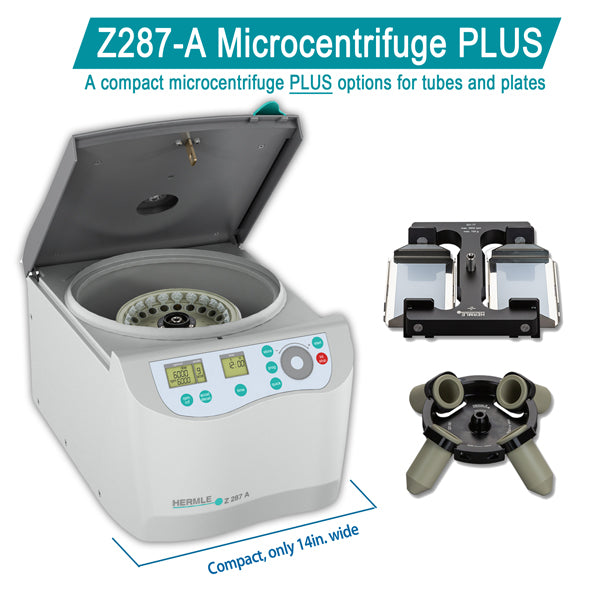

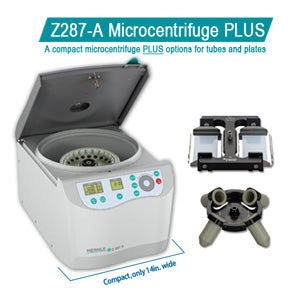

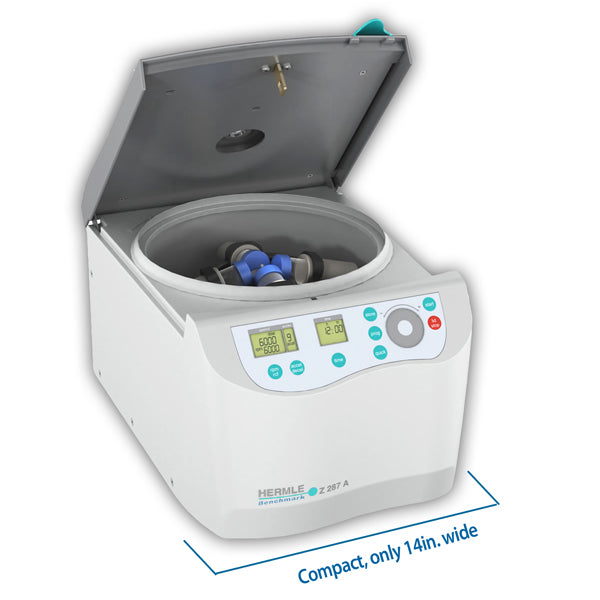

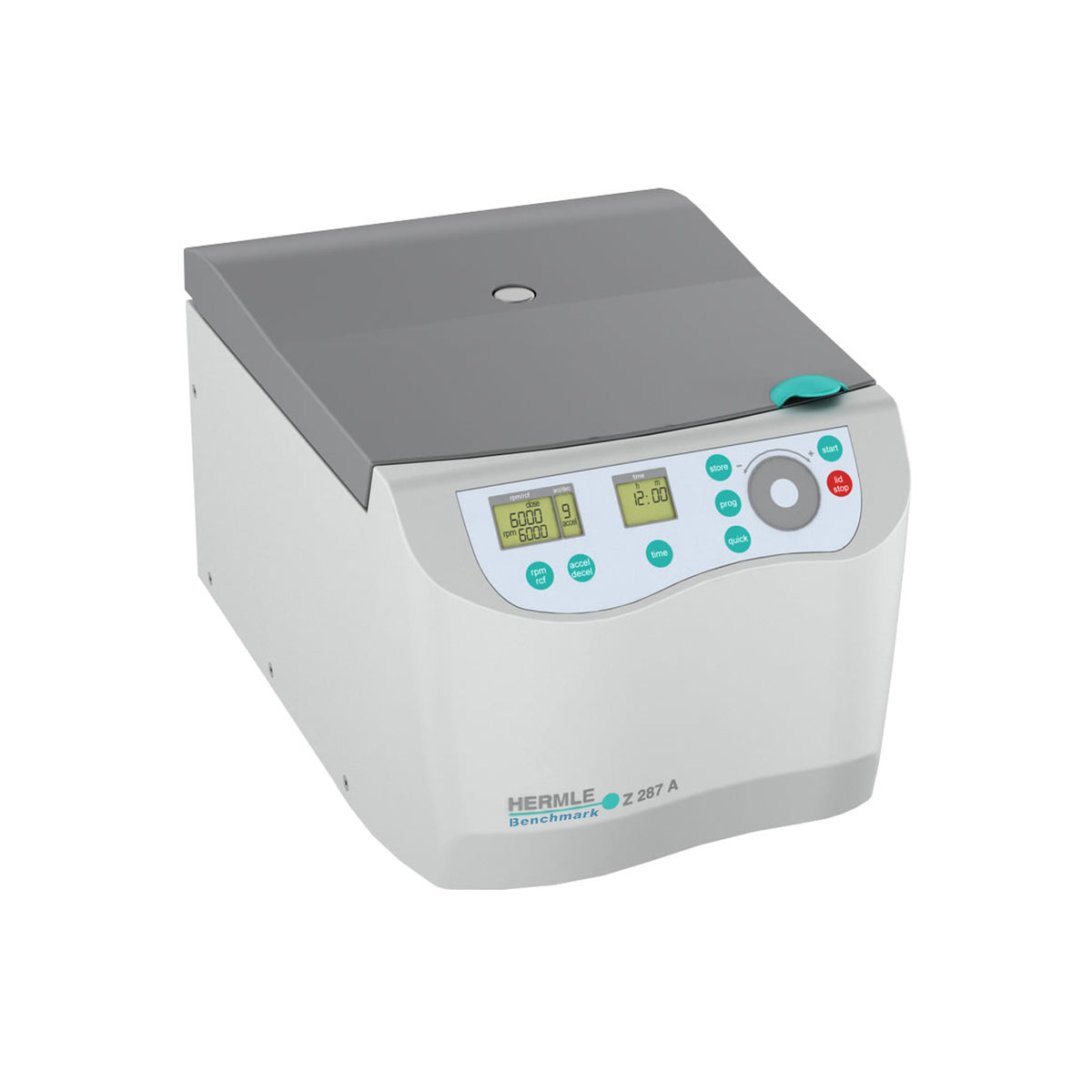

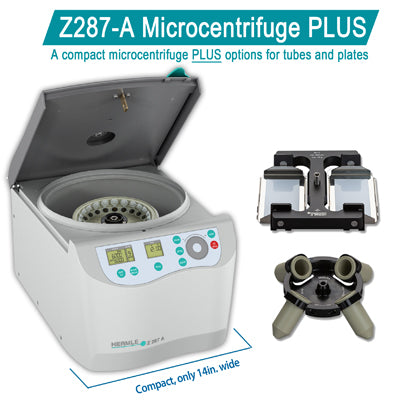

The Hermle Z287-A is a compact universal centrifuge that covers a wide span of applications from one benchtop unit. It reaches 14,000 rpm and 16,058 × g, with a maximum capacity of 6 × 50 mL. Eleven rotor options include swing-out rotors for tubes and plates. An indicator light shows cycle status, the EZ-Scroll touch pad sets the run, and the unit measures 14 × 17 × 10 in at 39 lb (18 kg).
Key features
- 11 rotor options, including swing-out rotors for tubes and plates
- 200–14,000 rpm with up to 16,058 × g
- Maximum capacity 6 × 50 mL
- Indicator light shows cycle status from across the lab
- EZ-Scroll touch pad; timer to 99 h 59 min or continuous
- 14 × 17 × 10 in; 39 lb (18 kg)
Specifications
| Brand | Hermle |
|---|---|
| Catalog number | Z287-A / Z287-A-E |
| Speed Range | 200–14,000 rpm |
| Max RCF | 16,058 × g |
| Max Capacity | 6 × 50 mL |
| Rotor Options | 11 (fixed angle and swing-out for tubes and plates) |
| Dimensions | 14 × 17 × 10 in (35 × 43 × 26 cm) |
| Timer | Up to 99 h 59 min and continuous |
| Controls | EZ-Scroll touch pad, cycle status indicator light |
| Weight | 39 lb (18 kg) |
| Electrical | 120 V, 60 Hz (Z287-A); 230 V (Z287-A-E) |
| Warranty | 3 years parts and labor, plus 2 more years on the motor and its parts (Benchmark Five program, U.S. purchases) |
Ordering information
| Catalog number | Power |
|---|---|
| Z287-A | 120V, US plug |
| Z287-A-E | 230V, European plug |
Rotors, adapters and accessories listed for this model
| Catalog number | Part | Max speed in this model |
|---|---|---|
| Z287-02MP | Hermle 2 × Microplate Swing-Out Rotor Z287-02MP | 3,800 rpm / 1,453 × g |
| Z287-0430H | Hermle 4 × 30 mL Skirted Swing-Out Rotor Z287-0430H | 5,000 rpm / 3,437 × g |
| Z287-0450H | Hermle 4 × 50 mL Conical Swing-Out Rotor Z287-0450H | 5,000 rpm / 3,633 × g |
| Z287-0650 | Hermle 6 × 50 mL Conical Fixed-Angle Rotor Z287-0650 | 6,000 rpm / 4,427 × g |
| Z287-0810H | Hermle 8 × 10 mL Swing-Out Rotor Z287-0810H | 5,000 rpm / 3,717 × g |
| Z287-0815 | Hermle 8 × 15 mL Fixed-Angle Rotor Z287-0815 | 8,000 rpm / 6,153 × g |
| Z287-1215 | Hermle 12 × 15 mL Fixed-Angle Rotor Z287-1215 | 6,000 rpm / 4,427 × g |
| Z287-1820 | Hermle 18 × 1.5/2.0 mL Fixed-Angle Rotor Z287-1820 | 14,000 rpm / 15,994 × g |
| Z287-2420 | Hermle 24 × 1.5/2.0 mL Fixed-Angle Rotor Z287-2420 | 12,000 rpm / 13,683 × g |
| Z287-24HEM | Hermle 24-Place Hematocrit Tube Rotor Z287-24HEM | 13,000 rpm / 16,058 × g |
| Z287-24SC | Hermle 24 × 2.0 mL Spin Column Fixed-Angle Rotor Z287-24SC | 12,000 rpm / 13,683 × g |
| C3100-RG | Hermle Rubber Gasket for 10 mL Tubes C3100-RG | |
| Z287-0810-A10 | Hermle Spare 10 mL Holders for Z287-0810H Rotor Z287-0810-A10 | |
| Z287-0810-A7 | Hermle 5/7 mL Holders for Z287-0810H Rotor Z287-0810-A7 | |
| Z326-15-A20 | Hermle Adapter for 1.5/2.0 mL Tubes Z326-15-A20 | |
| Z326-50-B15 | Hermle 15 mL Round Adapter for Conical 50 mL Rotors Z326-50-B15 |
Questions about the Z287-A Compact Universal Centrifuge
How fast does the Z287-A Compact Universal Centrifuge spin, and what does it hold?
The Z287-A Compact Universal Centrifuge runs at 200–14,000 rpm with a maximum RCF of 16,058 × g and holds 6 × 50 mL.
Which rotors fit the Z287-A Compact Universal Centrifuge?
Rotors listed for the Z287-A Compact Universal Centrifuge include Z287-02MP (2 × Microplate Swing-Out Rotor), Z287-0430H (4 × 30 mL Skirted Swing-Out Rotor), Z287-0450H (4 × 50 mL Conical Swing-Out Rotor), Z287-0650 (6 × 50 mL Conical Fixed-Angle Rotor), Z287-0810H (8 × 10 mL Swing-Out Rotor) and Z287-0815 (8 × 15 mL Fixed-Angle Rotor). Buckets, adapters and inserts for those rotors are listed on this page and on each rotor's page.
Is the Z287-A Compact Universal Centrifuge available with a European plug?
Yes. Z287-A-E is the European-plug version of Z287-A: Z287-A is 120V with a US plug and Z287-A-E is 230V with a European plug.
