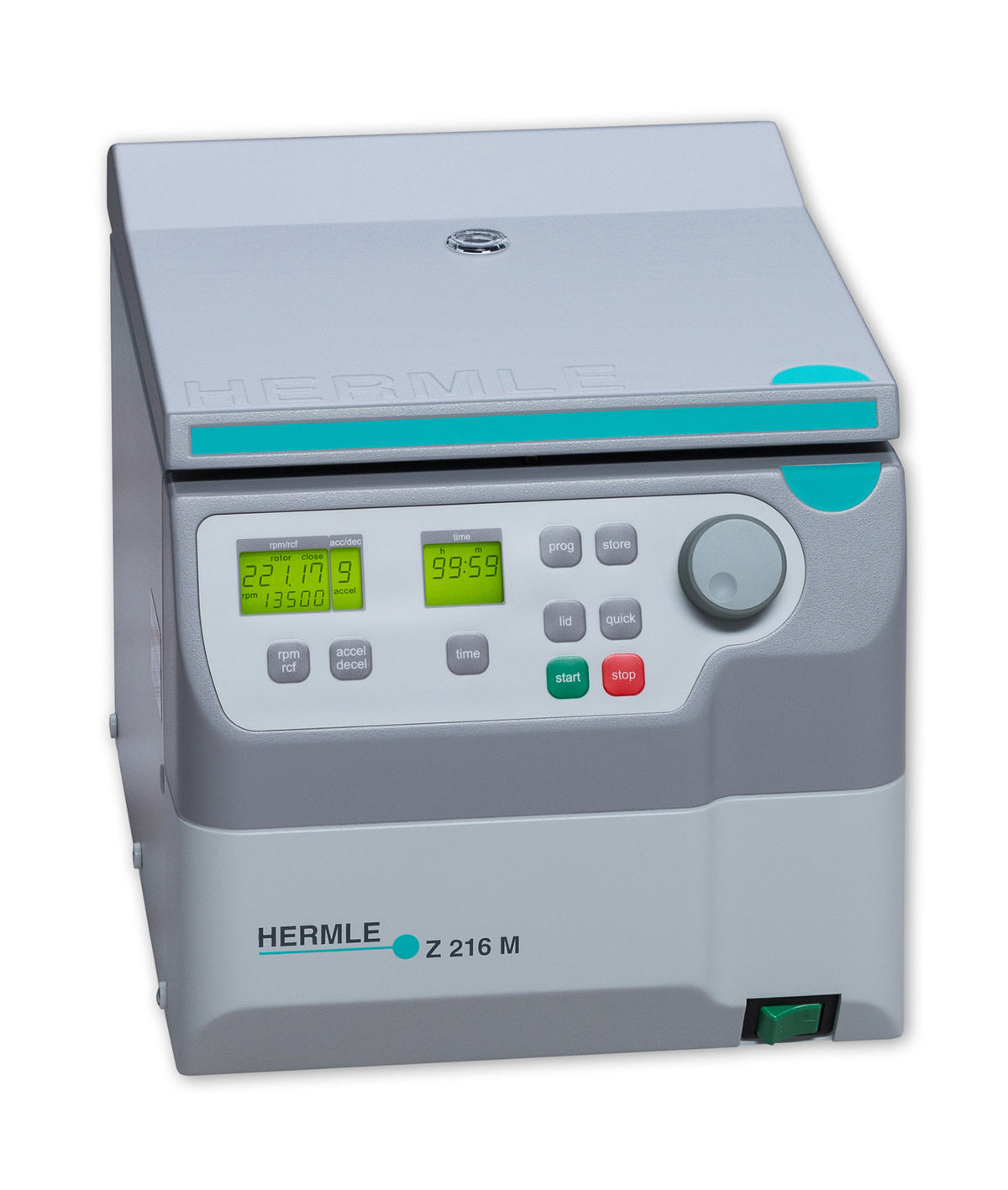

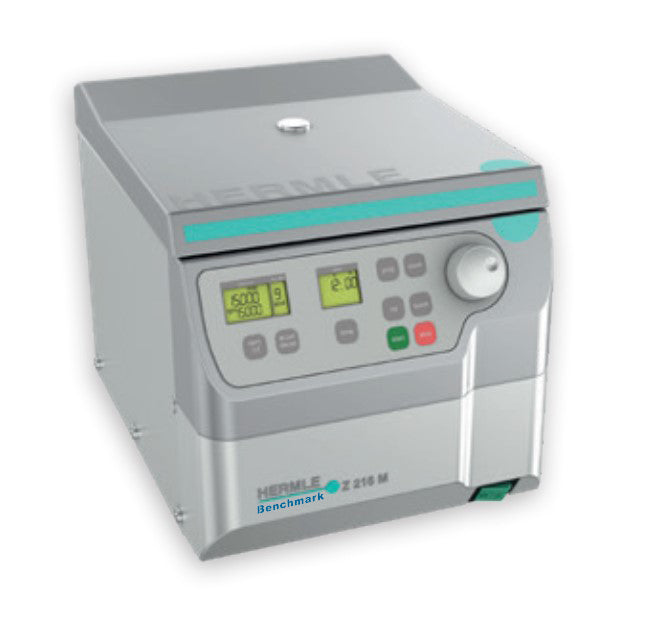

The Hermle Z216-M is a high-capacity, non-refrigerated microcentrifuge with a 200–15,000 rpm speed range and a maximum of 21,631 × g. Ten rotor options take tubes from 0.2 mL to 5 mL, with up to 44 × 1.5/2.0 mL per run. The controller converts between rpm and RCF automatically, and the timer runs to 99 h 59 min or continuously. Footprint is 11 × 15.3 × 11.4 in; weight is 37.4 lb (17 kg).
Key features
- Up to 44 × 1.5/2.0 mL tubes per run
- 10 rotor options for 0.2–5 mL tubes
- 15,000 rpm maximum, 21,631 × g
- Automatic rpm/RCF conversion in the controller
- Timer to 99 h 59 min or continuous
- 11 × 15.3 × 11.4 in; 37.4 lb (17 kg)
Specifications
| Brand | Hermle |
|---|---|
| Catalog number | Z216-M / Z216-M-E |
| Speed Range | 200–15,000 rpm |
| Max RCF | 21,631 × g |
| Max Capacity | 44 × 1.5/2.0 mL |
| Tube Sizes | 0.2–5 mL |
| Rotor Options | 10 |
| Dimensions | 11 × 15.3 × 11.4 in (28 × 38.9 × 29 cm) |
| Timer | Up to 99 h 59 min and continuous |
| Weight | 37.4 lb (17 kg) |
| Electrical | 120 V, 60 Hz (Z216-M); 230 V (Z216-M-E) |
| Warranty | 3 years parts and labor, plus 2 more years on the motor and its parts (Benchmark Five program, U.S. purchases) |
| Rotor | Not included; order a rotor from the table below |
Ordering information
| Catalog number | Power |
|---|---|
| Z216-M | 120V, US plug |
| Z216-M-E | 230V, European plug |
Rotors, adapters and accessories listed for this model
| Catalog number | Part | Max speed in this model |
|---|---|---|
| Z216-1205 | Hermle 12 × 5 mL Rotor Z216-1205 | 14,500 rpm / 19,978 × g |
| Z216-1220H | Hermle 12 × HLA/1.5/2.0 mL Swing-Out Rotor Z216-1220H | 9,000 rpm / 7,510 × g |

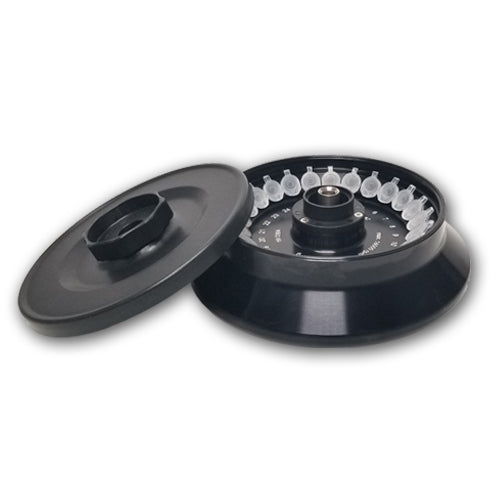

| Z216-2420 | Hermle 24 × 1.5/2.0 mL Hermetically Sealed Rotor Z216-2420 | 15,000 rpm / 21,379 × g |

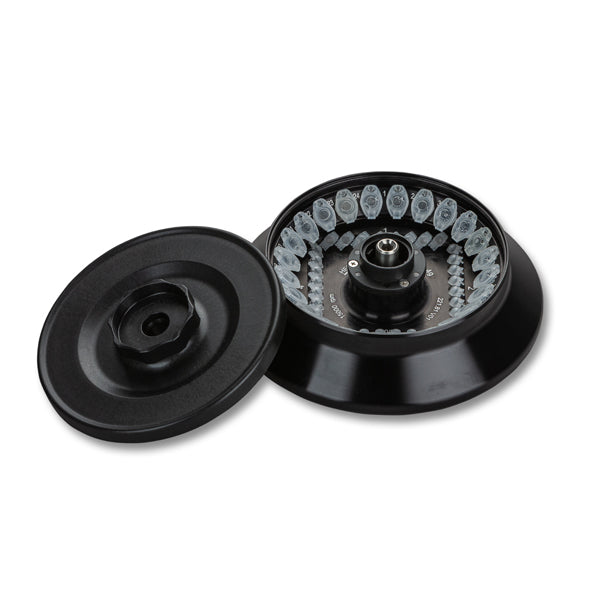

| Z216-2420S | Hermle COMBI-Rotor 24 × 1.5/2.0 mL + 4 PCR Strips Z216-2420S | 15,000 rpm / 21,631 × g |
| Z216-24HEM | Hermle 24-Place Hematocrit Rotor Z216-24HEM | 12,000 rpm / 14,970 × g |
| Z216-3020H | Hermle 30 × 1.5/2.0 mL Rotor Z216-3020H | 13,500 rpm / 19,151 × g |
| Z216-3202 | Hermle 4 × PCR Rotor, Hermetically Sealed Z216-3202 | 15,000 rpm / 15,343 × g |
| Z216-4420 | Hermle 44 × 1.5/2.0 mL Rotor Z216-4420 | 15,000 rpm / 21,379 × g |
| Z216-05-C10 | Hermle 1.0 mL Cryotube Adapter for 5 mL Tube Rotor Z216-05-C10 | |
| Z216-05-C18 | Hermle 1.8 mL Cryotube Adapter for 5 mL Tube Rotor Z216-05-C18 | |
| Z216-24SC | Hermle 24 × 2.0 mL Spin Column Kit Z216-24SC | 13,500 rpm / 17,317 × g |
Questions about the Z216-M Microcentrifuge
How fast does the Z216-M Microcentrifuge spin, and what does it hold?
The Z216-M Microcentrifuge runs at 200–15,000 rpm with a maximum RCF of 21,631 × g and holds 44 × 1.5/2.0 mL.
Which rotors fit the Z216-M Microcentrifuge?
Rotors listed for the Z216-M Microcentrifuge include Z216-1205 (12 × 5 mL Rotor), Z216-1220H (12 × HLA/1.5/2.0 mL Swing-Out Rotor), Z216-2420 (24 × 1.5/2.0 mL Hermetically Sealed Rotor), Z216-2420S (COMBI-Rotor 24 × 1.5/2.0 mL + 4 PCR Strips), Z216-24HEM (24-Place Hematocrit Rotor) and Z216-3020H (30 × 1.5/2.0 mL Rotor). Buckets, adapters and inserts for those rotors are listed on this page and on each rotor's page.
Is the Z216-M Microcentrifuge available with a European plug?
Yes. Z216-M-E is the European-plug version of Z216-M: Z216-M is 120V with a US plug and Z216-M-E is 230V with a European plug.
