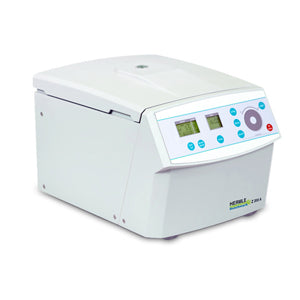

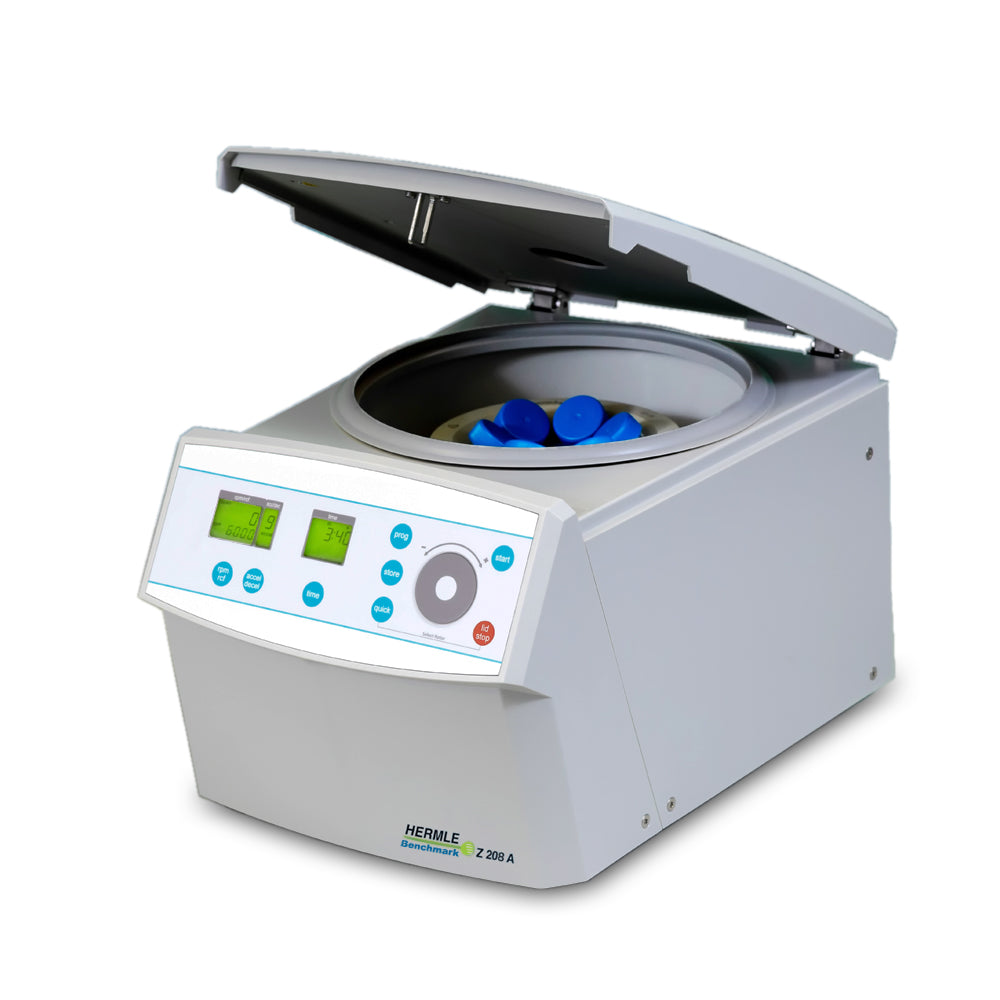

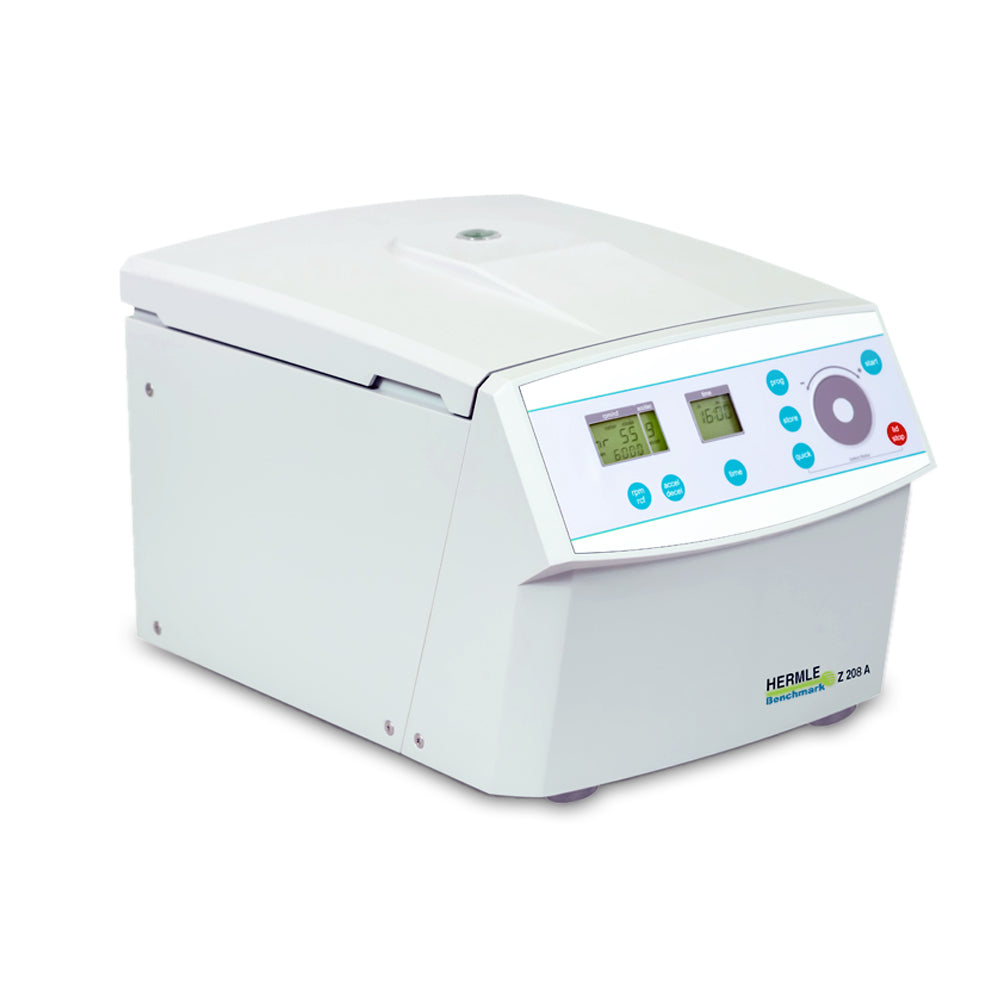

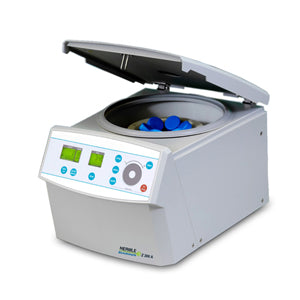

The Hermle Z208-A is a compact benchtop centrifuge for routine clinical and cell culture separations. It runs from 200 to 6,000 rpm and reaches 4,427 × g, with a maximum load of 6 × 50 mL. Rotors take tubes from 1.5 mL to 50 mL, including common blood collection tubes. The timer runs up to 99 h 59 min or continuously, and up to 99 programs can be stored.
Key features
- Speed 200–6,000 rpm; maximum RCF 4,427 × g
- Holds up to 6 × 50 mL; rotors accept 1.5–50 mL tubes
- Rotors for common blood collection tubes, urine and cell culture work
- Stores up to 99 programs; timer to 99 h 59 min or continuous
- LED status light shows run state at a glance
- Weighs 31.3 lb (14.2 kg)
Specifications
| Brand | Hermle |
|---|---|
| Catalog number | Z208-A / Z208-A-E |
| Speed Range | 200–6,000 rpm |
| Max RCF | 4,427 × g |
| Max Capacity | 6 × 50 mL |
| Tube Sizes | 1.5–50 mL |
| Timer | Up to 99 h 59 min and continuous |
| Program Storage | Up to 99 |
| Weight | 31.3 lb (14.2 kg) |
| Electrical | 100–230 V, 50–60 Hz, 70 W |
| Warranty | 3 years parts and labor, plus 2 more years on the motor and its parts (Benchmark Five program, U.S. purchases) |
Ordering information
| Catalog number | Power |
|---|---|
| Z208-A | 120V, US plug |
| Z208-A-E | 230V, European plug |
Rotors, adapters and accessories listed for this model
| Catalog number | Part | Max speed in this model |
|---|---|---|
| Z206-0410 | Hermle 4 × 8–10 mL Swing-Out Rotor Z206-0410 | 4,200 rpm / 2,406 × g |
| Z206-0605 | Hermle 6 × 5 mL Swing-Out Rotor Z206-0605 | 4,000 rpm / 1,896 × g |
| Z206-0650 | Hermle 6 × 50 mL Rotor Z206-0650 | 6,000 rpm / 4,427 × g |
| Z206-1215 | Hermle 12 × 15 mL Rotor Z206-1215 | 6,000 rpm / 4,427 × g |
| Z206-1820 | Hermle 18 × 1.5/2.0 mL Rotor Z206-1820 | 6,000 rpm / 2,938 × g |
| C3100-RG | Hermle Rubber Gasket for 10 mL Tubes C3100-RG | |
| Z206-50-A15 | Hermle 15 mL Adapter for 50 mL PP Rotors Z206-50-A15 | |
| Z206-50-A57 | Hermle 7 mL Round Adapter for 50 mL PP Rotors Z206-50-A57 | |
| Z206-50-A5C | Hermle Cushion for 5 mL Tube in Z206-50-A57 Adapter Z206-50-A5C |
Questions about the Z208-A Compact Benchtop Centrifuge
How fast does the Z208-A Compact Benchtop Centrifuge spin, and what does it hold?
The Z208-A Compact Benchtop Centrifuge runs at 200–6,000 rpm with a maximum RCF of 4,427 × g and holds 6 × 50 mL.
Which rotors fit the Z208-A Compact Benchtop Centrifuge?
Rotors listed for the Z208-A Compact Benchtop Centrifuge include Z206-0410 (4 × 8–10 mL Swing-Out Rotor), Z206-0605 (6 × 5 mL Swing-Out Rotor), Z206-0650 (6 × 50 mL Rotor), Z206-1215 (12 × 15 mL Rotor), Z206-1820 (18 × 1.5/2.0 mL Rotor) and Z206-50-A15 (15 mL Adapter for 50 mL PP Rotors). Buckets, adapters and inserts for those rotors are listed on this page and on each rotor's page.
Is the Z208-A Compact Benchtop Centrifuge available with a European plug?
Yes. Z208-A-E is the European-plug version of Z208-A: Z208-A is 120V with a US plug and Z208-A-E is 230V with a European plug.
