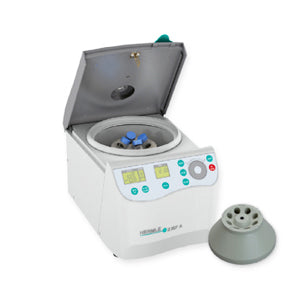

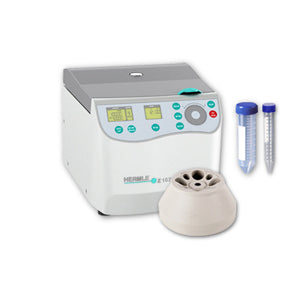

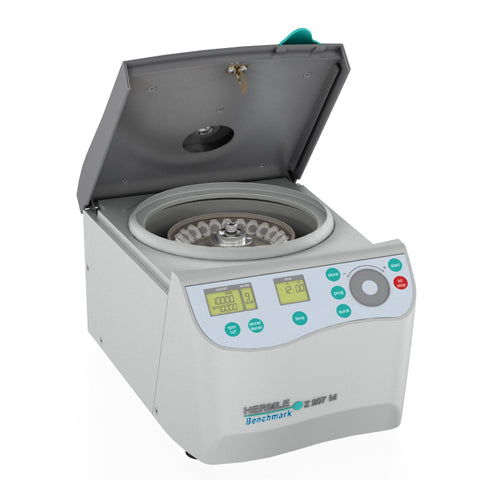

The Hermle Z207-M microcentrifuge spins 24 × 1.5/2.0 mL tubes or 24 × 2.0 mL spin columns at 200–13,500 rpm. Settings are entered on the EZ-Scroll touch pad, and the timer covers up to 99 h 59 min or continuous operation. At 11 in wide and 27.6 lb (12.5 kg), it fits a crowded bench, and several rotor options cover 1.5/2.0 mL tubes.
Key features
- 200–13,500 rpm speed range
- 24 × 1.5/2.0 mL tubes or 24 × 2.0 mL spin columns per run
- EZ-Scroll touch pad for setting speed, force and time
- Timer to 99 h 59 min, plus a continuous mode
- 11 × 13.8 × 9.5 in (W × D × H); 27.6 lb (12.5 kg)
- 120V or 230V, 50/60 Hz, 170 W
Specifications
| Brand | Hermle |
|---|---|
| Catalog number | Z207-M / Z207-M-E |
| Speed Range | 200–13,500 rpm |
| Max Capacity | 24 × 1.5/2.0 mL; 24 × 2.0 mL spin columns |
| Dimensions (W × D × H) | 11 × 13.8 × 9.5 in (28 × 35 × 24 cm) |
| Timer | Up to 99 h 59 min and continuous |
| Controls | EZ-Scroll touch pad |
| Weight | 27.6 lb (12.5 kg) |
| Electrical | 120 V (Z207-M) or 230 V (Z207-M-E), 50/60 Hz, 170 W |
Ordering information
| Catalog number | Power |
|---|---|
| Z207-M | 120V, US plug |
| Z207-M-E | 230V, European plug |
Rotors, adapters and accessories listed for this model
| Catalog number | Part | Max speed in this model |
|---|---|---|

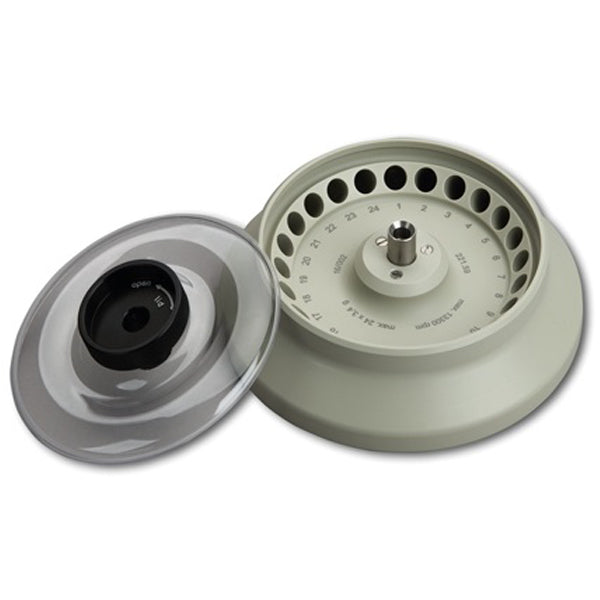

| Z207-2420H | Hermle 24 × 1.5/2.0 mL Hermetically Sealed Rotor Z207-2420H | 13,500 rpm / 17,317 × g |
| Z207-24SC | Hermle 24 × 1.5/2.0 mL Spin Column Rotor Z207-24SC | 13,500 rpm / 17,317 × g |
| Z207-3202 | Hermle 4 × 8 PCR Strip Rotor Z207-3202 | 13,500 rpm / 14,669 × g |
