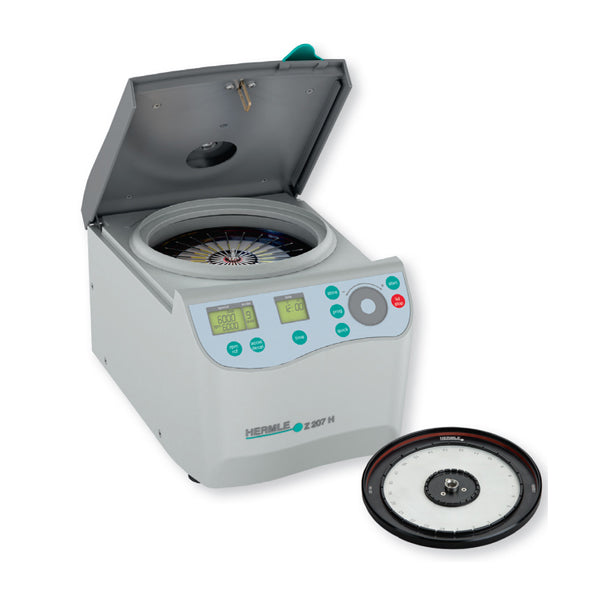

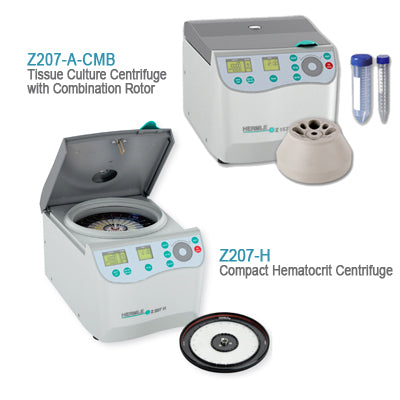

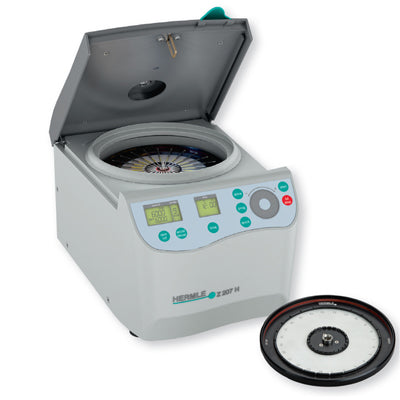

The Hermle Z207-H is a compact hematocrit centrifuge that holds 24 capillary tubes and runs from 200 to 13,000 rpm, reaching 16,058 × g. Run parameters are set on the EZ-Scroll touch pad, and the timer reaches 99 h 59 min or runs continuously. The unit measures 11 × 9.5 × 13.7 in and weighs 27.5 lb (12.5 kg), leaving room on a crowded bench for other work.
Key features
- Hematocrit rotor holds 24 capillaries
- 200–13,000 rpm; up to 16,058 × g
- EZ-Scroll touch pad for quick parameter entry
- Timed runs to 99 h 59 min, or continuous
- 11 in wide; 27.5 lb (12.5 kg)
Specifications
| Brand | Hermle |
|---|---|
| Catalog number | Z207-H / Z207-H-E |
| Speed Range | 200–13,000 rpm |
| Max RCF | 16,058 × g |
| Max Capacity | 24 capillaries |
| Dimensions | 11 × 9.5 × 13.7 in (28 × 24 × 35 cm) |
| Timer | Up to 99 h 59 min and continuous |
| Controls | EZ-Scroll touch pad |
| Weight | 27.5 lb (12.5 kg) |
| Electrical | 120 V, 60 Hz (Z207-H); 230 V (Z207-H-E) |
| Warranty | 3 years parts and labor, plus 2 more years on the motor and its parts (Benchmark Five program, U.S. purchases) |
Ordering information
| Catalog number | Power |
|---|---|
| Z207-H | 120V, US plug |
| Z207-H-E | 230V, European plug |
Rotors, adapters and accessories listed for this model
| Catalog number | Part |
|---|---|
| Z207-HEM-RD | Hermle Capillary Reading Disc Z207-HEM-RD |
Questions about the Z207-H Compact Hematocrit Centrifuge
How fast does the Z207-H Compact Hematocrit Centrifuge spin, and what does it hold?
The Z207-H Compact Hematocrit Centrifuge runs at 200–13,000 rpm with a maximum RCF of 16,058 × g and holds 24 capillaries.
What accessories are available for the Z207-H Compact Hematocrit Centrifuge?
Hermle lists Z207-HEM-RD (Capillary Reading Disc) for the Z207-H Compact Hematocrit Centrifuge.
Is the Z207-H Compact Hematocrit Centrifuge available with a European plug?
Yes. Z207-H-E is the European-plug version of Z207-H: Z207-H is 120V with a US plug and Z207-H-E is 230V with a European plug.
