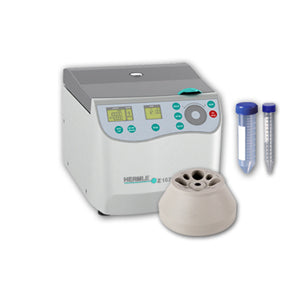

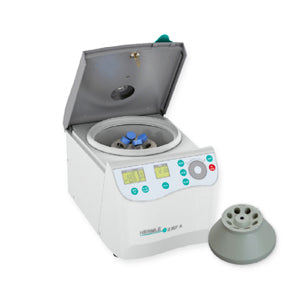

The Hermle Z207-A-CMB is a compact benchtop centrifuge supplied with a combination rotor that accepts 4 × 15 mL tubes and 50 mL tubes in the same rotor, so mixed tube sizes can run without a rotor change. Speed is adjustable from 200–6,800 rpm for a maximum of 4,394 × g. The cabinet is 11 in wide and weighs 17.6 lb (8 kg). Run time is set on the EZ-Scroll touch pad, from short spins up to 99 hr 59 min or continuous.
Key features
- 200–6,800 rpm speed range, 4,394 × g maximum RCF

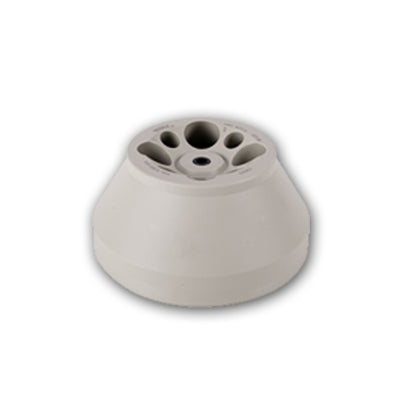

- Combination rotor takes 4 × 15 mL and 50 mL tubes together
- 11 in wide footprint; 11 × 9.5 × 13.7 in (28 × 24 × 35 cm)
- EZ-Scroll touch pad for entering speed and run time
- Timer up to 99 hr 59 min, or continuous operation
- Offered for 120V (US plug) or 230V (European plug) power
Specifications
| Brand | Hermle |
|---|---|
| Catalog number | Z207-A-CMB / Z207-A-CMB-E |
| Speed Range | 200–6,800 rpm |
| Max RCF | 4,394 × g |
| Capacity | Combination rotor, 4 × 15 mL / 50 mL tubes |
| Dimensions | 11 × 9.5 × 13.7 in (28 × 24 × 35 cm) |
| Weight | 17.6 lb (8 kg) |
| Timer | Up to 99 hr 59 min, or continuous |
| Controls | EZ-Scroll touch pad |
| Electrical | 120V, 60 Hz, US plug (Z207-A-CMB); 230V, European plug (Z207-A-CMB-E) |
Ordering information
| Catalog number | Power |
|---|---|
| Z207-A-CMB | 120V, US plug |
| Z207-A-CMB-E | 230V, European plug |
