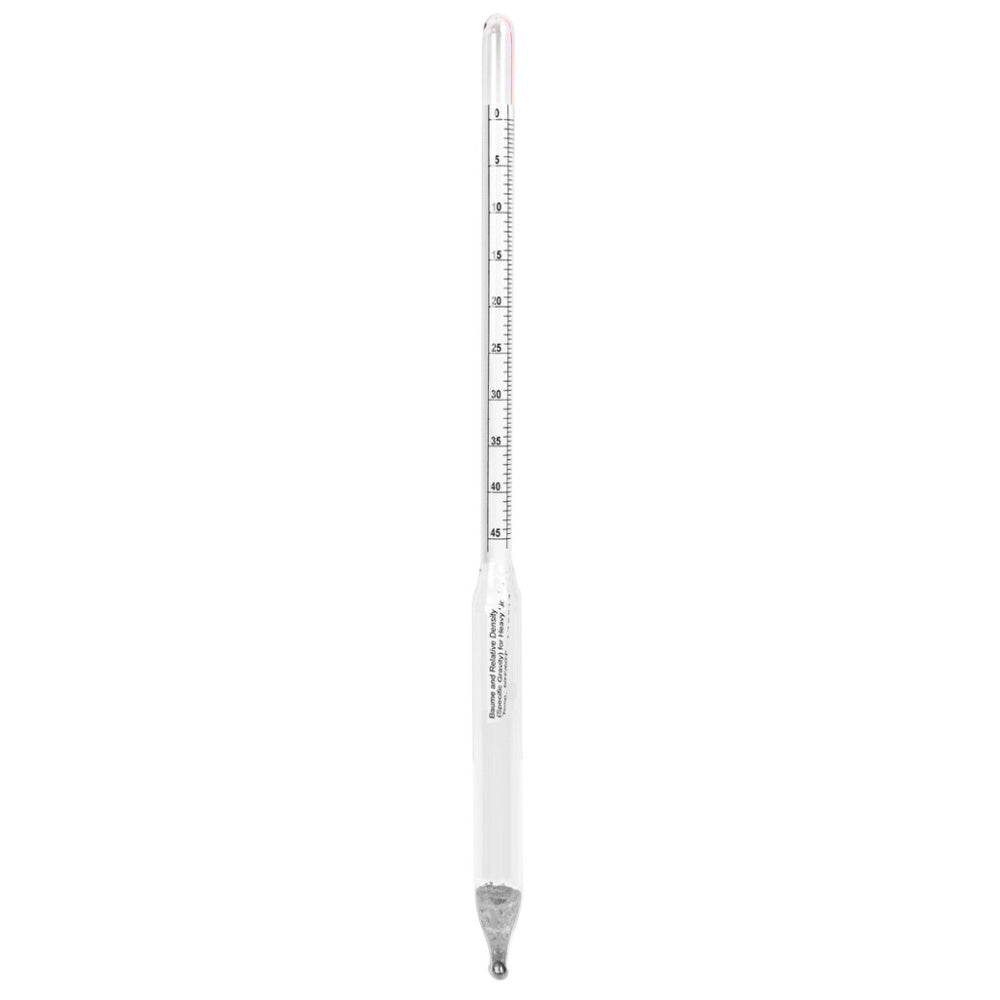

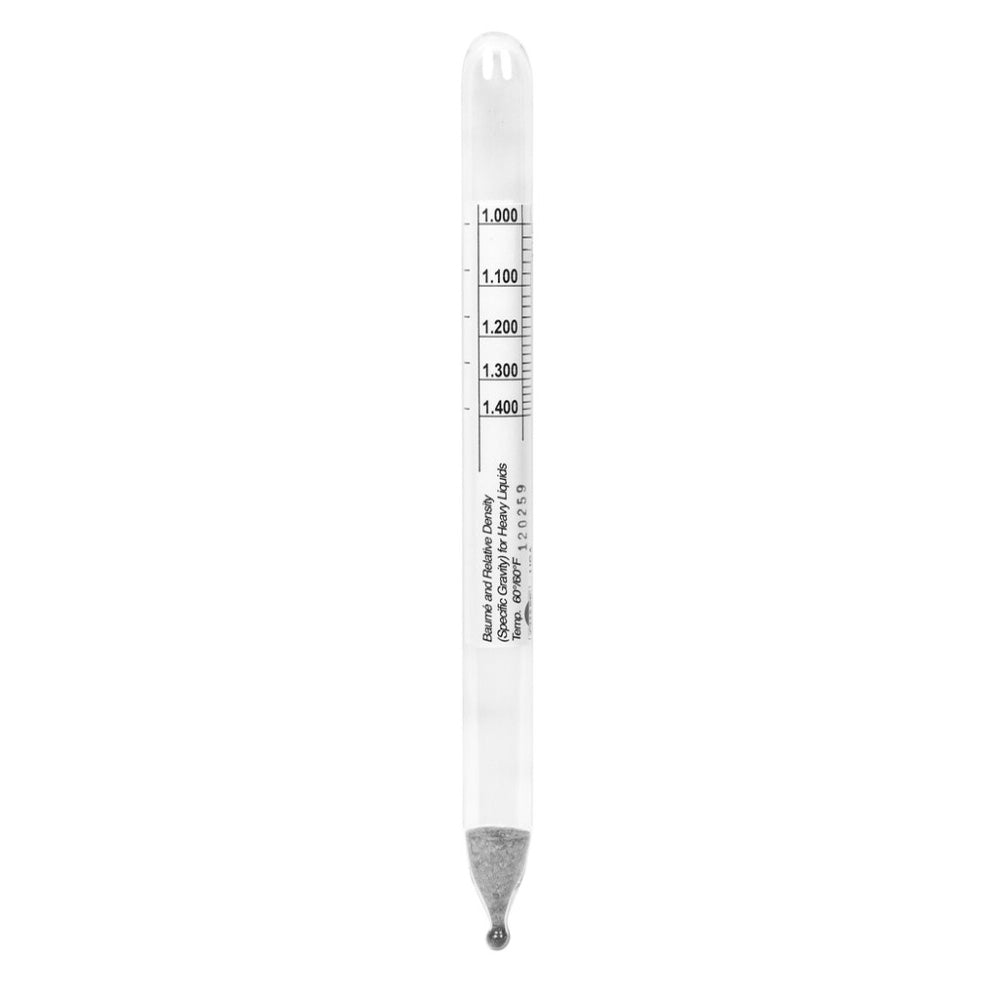

Simplify multi-standard reporting with Heathrow Scientific Dual Scale Specific Gravity and Baume Hydrometers. Designed for heavy industrial applications, chemical manufacturing, and high-density liquid processing, these premium glass hydrometers feature two independent measurement scales printed side-by-side. Technicians can instantly read both the standard Specific Gravity and the corresponding degrees Baume (°Bé) of heavy liquids, eliminating the need for manual conversions or consulting complex reference tables.
Built from thick, corrosion-resistant glass to withstand highly caustic environments, these hydrometers are expertly balanced to provide immediate, parallax-free readings. The inclusion of the Baume scale makes them particularly indispensable for tracking the concentration of acids, heavy syrups, and industrial brines. Calibrated for use at 15°C/60°F, these dual-scale instruments guarantee rigorous, compliance-ready data for any quality control program.
Features and Benefits
Calibrated for use at 15°C/60°F
Baume Range, Heavy: 0 to 72°
Baume Range, Light: 70 to 10°
Specifications
Color: Clear
Length: 15 in (38 cm)
Material: Glass
Measuring Type(s): Specific Gravity, Baume
Quantity: 1 Each
Specific Gravity Range: 0.700 to 2.000
Subdivisions: 1°
Type: Universal
Warranty: 1 Year
Part Numbers
| Option | Manufacturer Part No. | Pack |
|---|---|---|

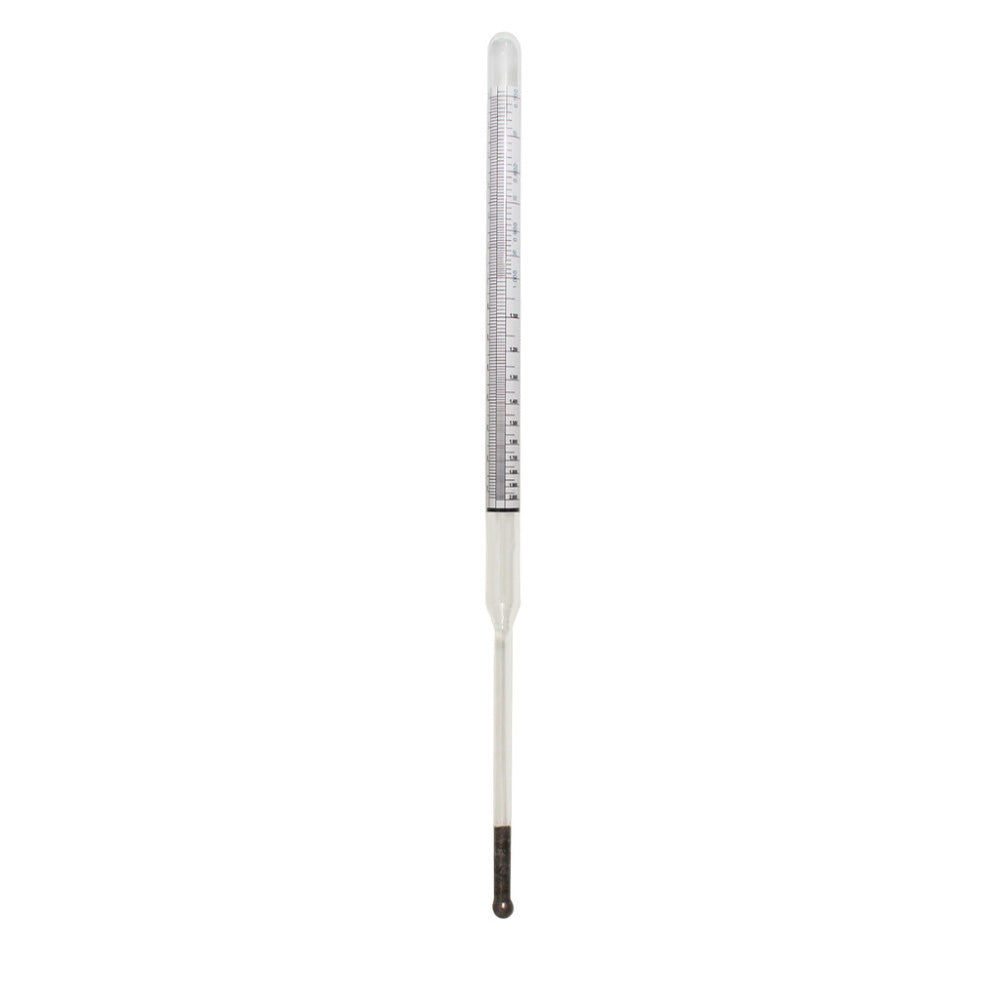

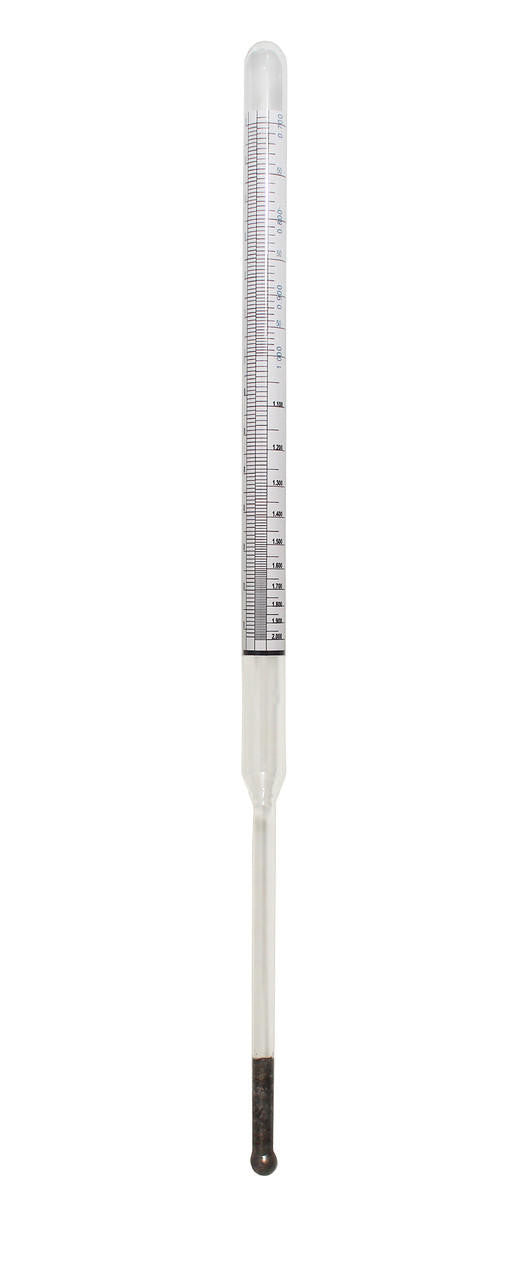

| 0.700 to 2.000 SG / 1 Each | 6605-1 | 1 Each |

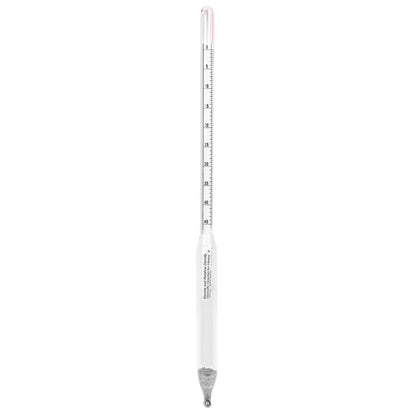

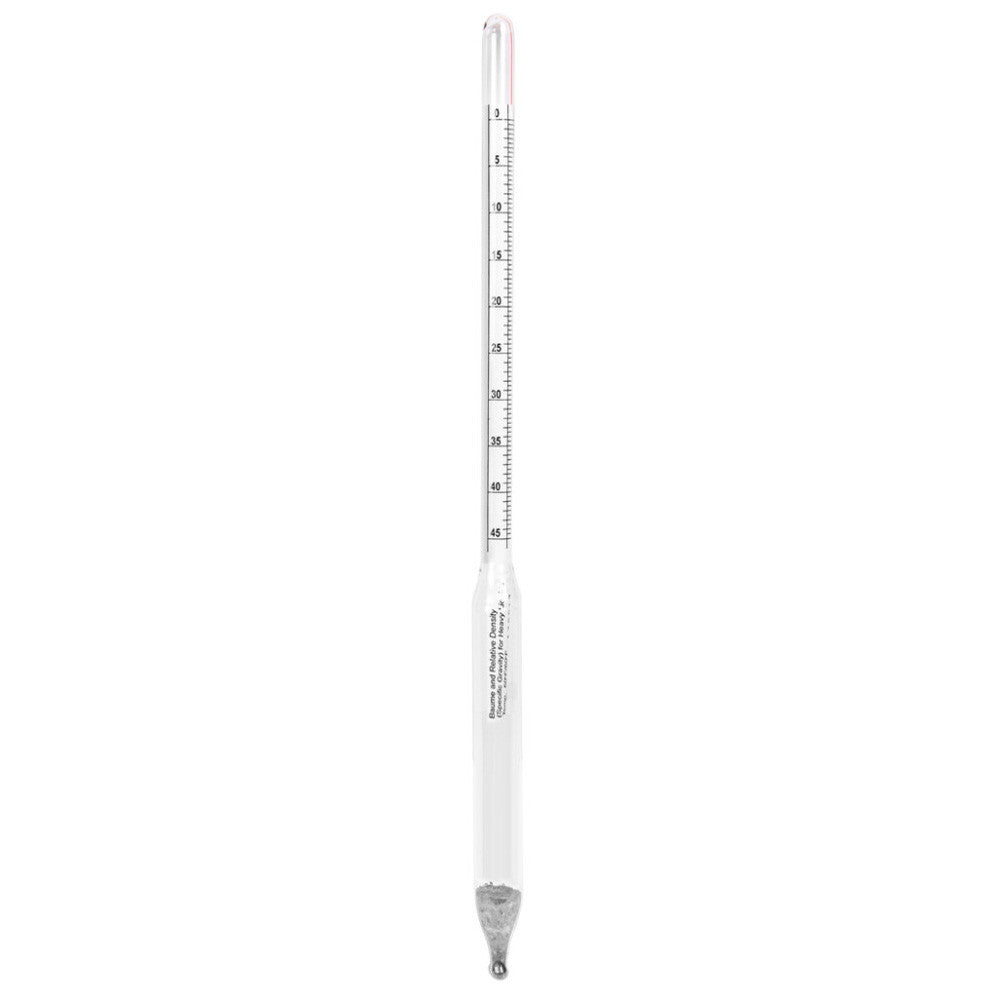

| 1.000 to 1.450 SG / 0 to 45° Baume (305mm) / 1 Each | 6603DS-6 | 1 Each |
| 1.000 to 1.400 SG / 0 to 41° Baume (305mm) / 1 Each | 6603DS-6S | 1 Each |
| 1.000 to 1.220 SG / 0 to 26° Baume (305mm) / 1 Each | 6603DS-1 | 1 Each |

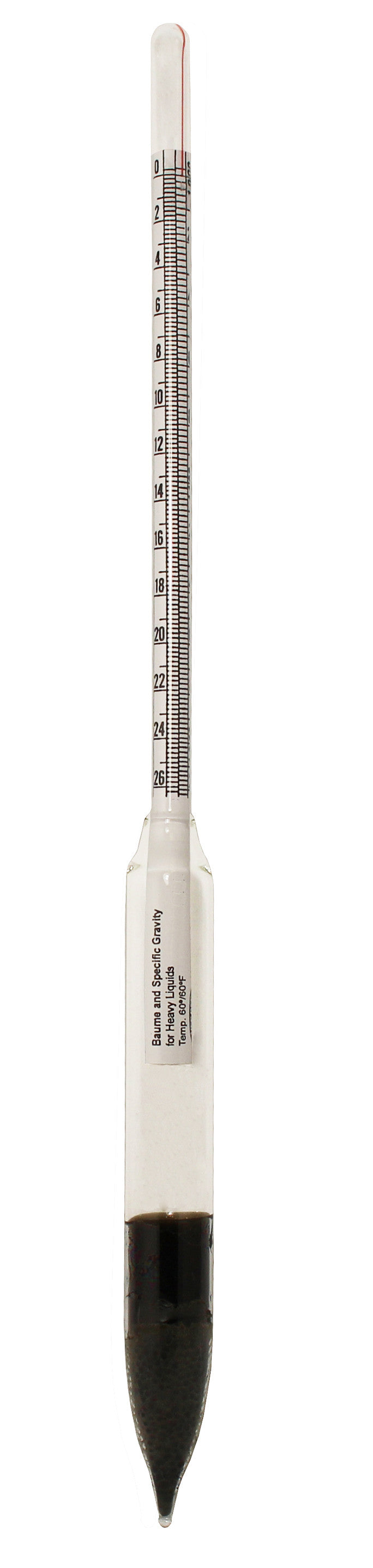

| 1.000 to 1.225 SG / 0 to 26° Baume (165mm) / 1 Each | 6603DS-1S | 1 Each |

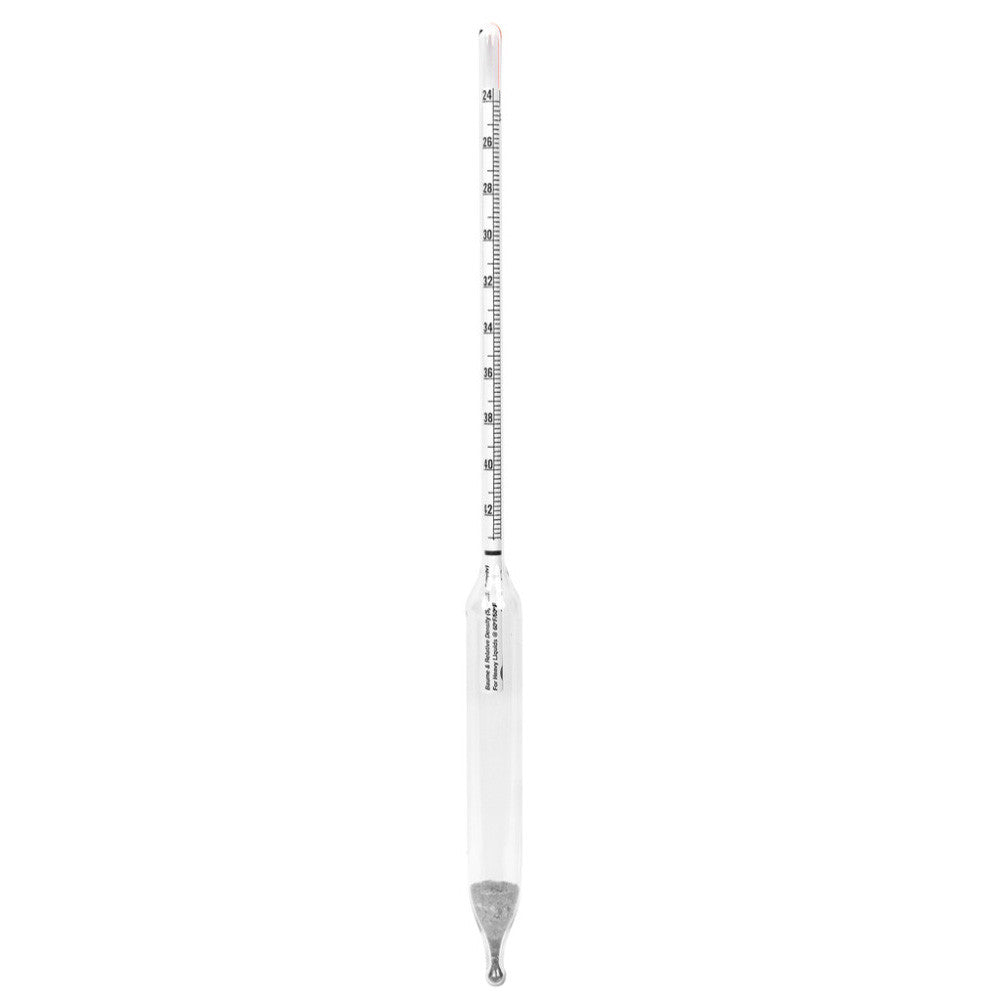

| 1.200 to 1.420 SG / 24 to 42° Baume (305mm) / 1 Each | 6603DS-2 | 1 Each |

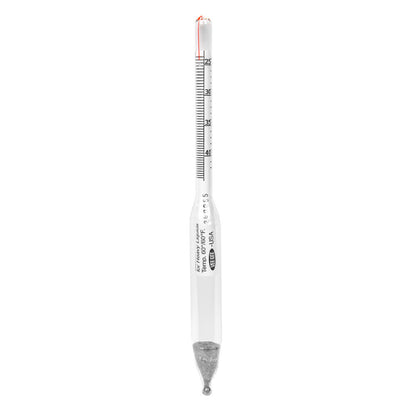

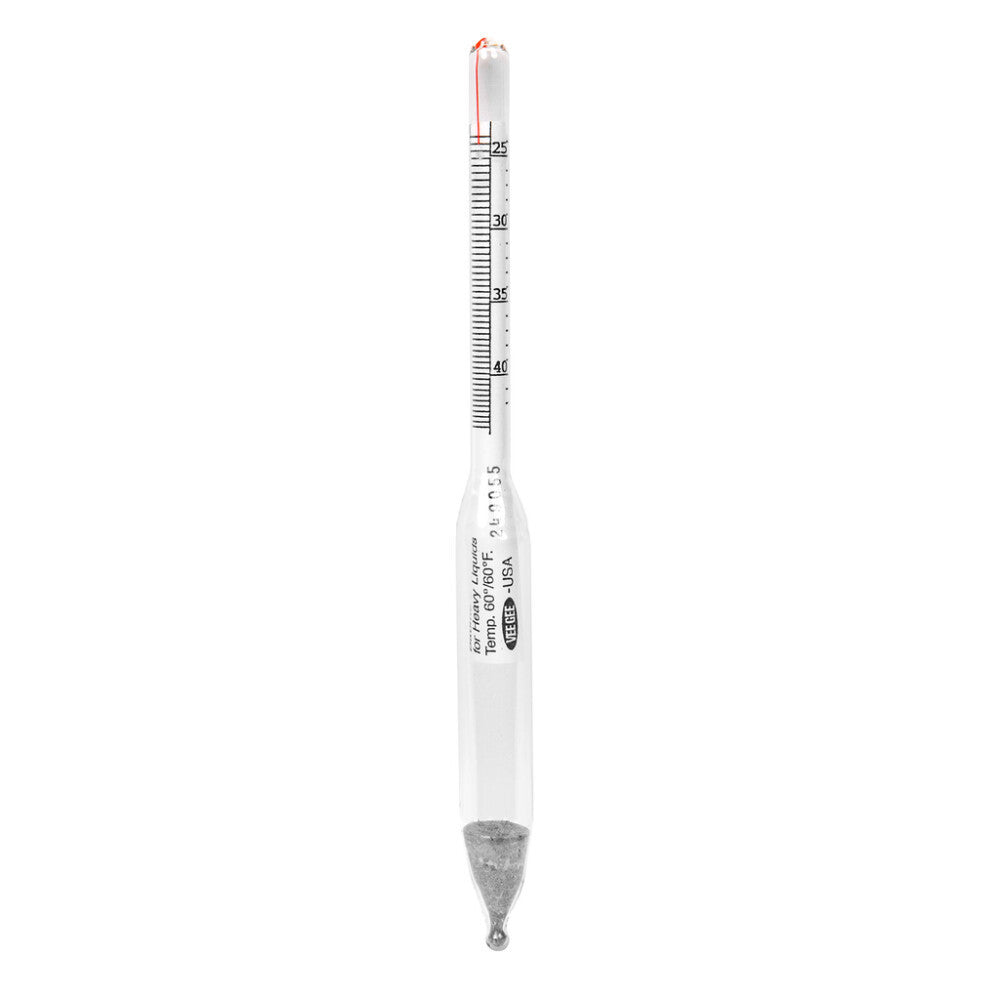

| 1.200 to 1.425 SG / 24 to 42° Baume (305mm) / 1 Each | 6603DS-2S | 1 Each |

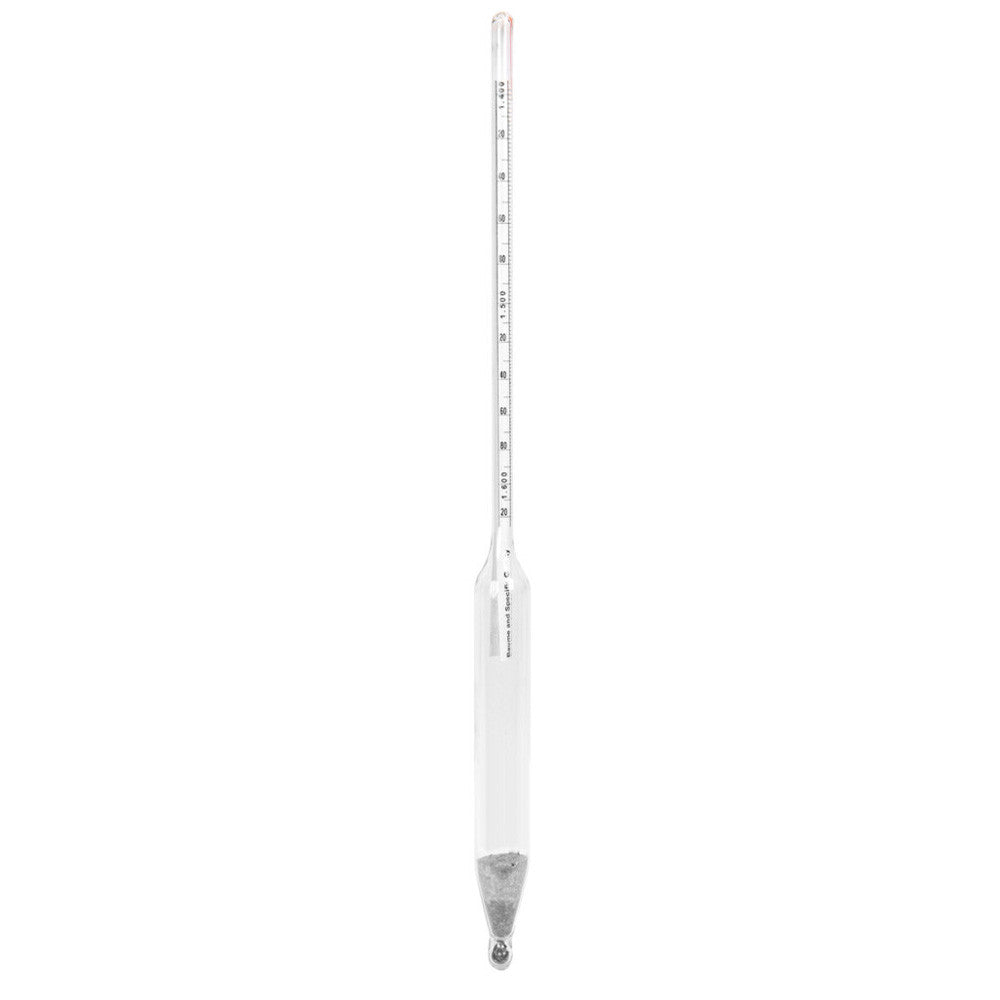

| 1.400 to 1.620 SG / 42 to 55° Baume (305mm) / 1 Each | 6603DS-3 | 1 Each |

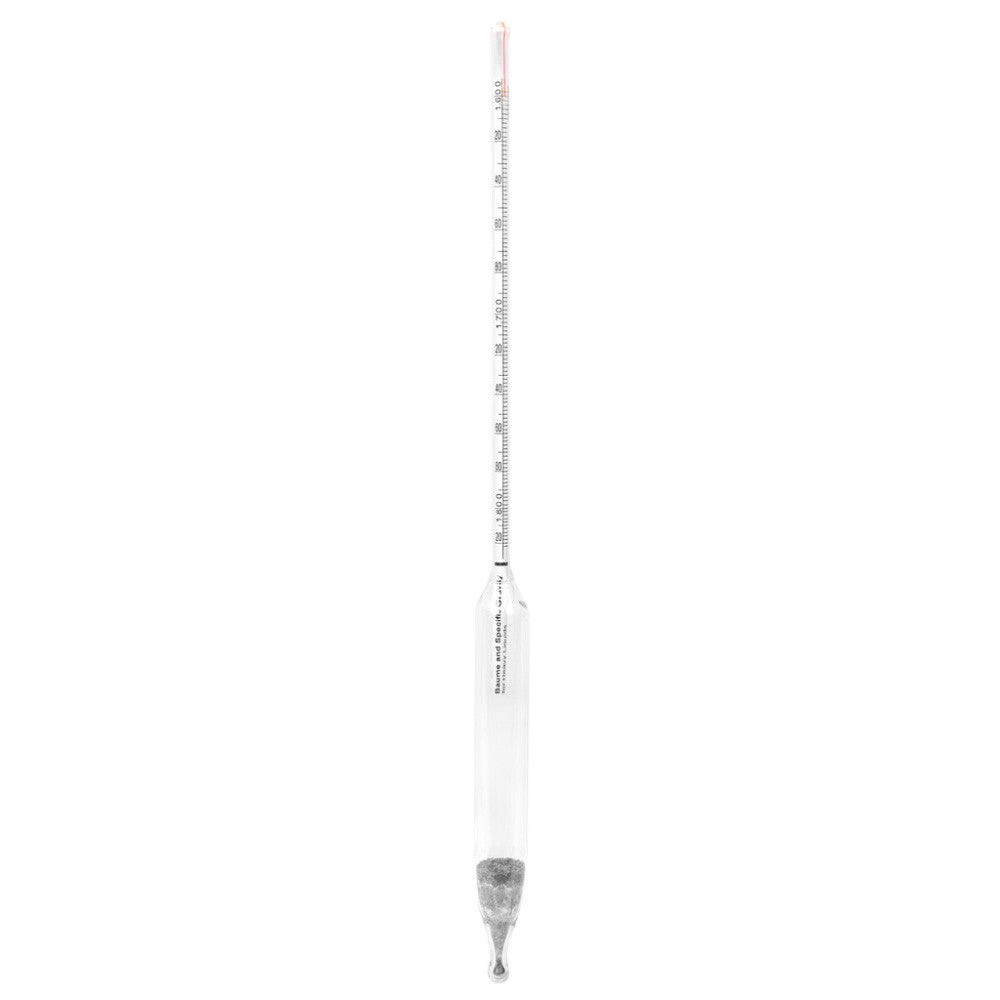

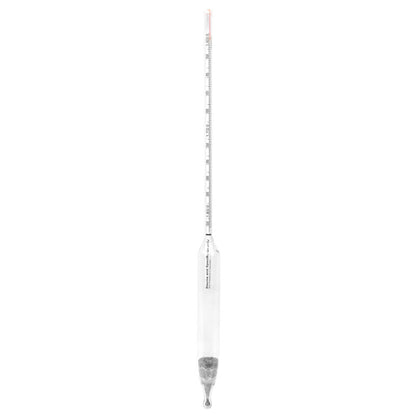

| 1.600 to 1.820 SG / 55 to 65° Baume (305mm) / 1 Each | 6603DS-4 | 1 Each |

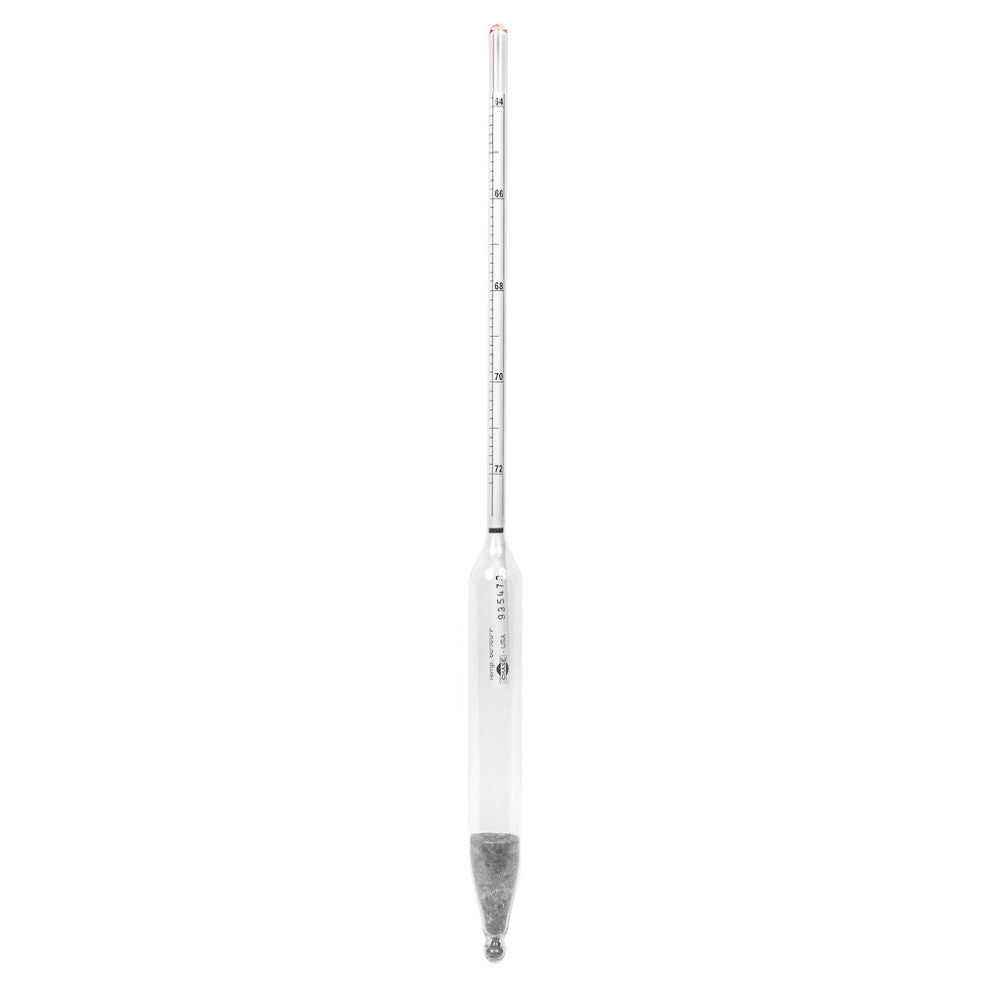

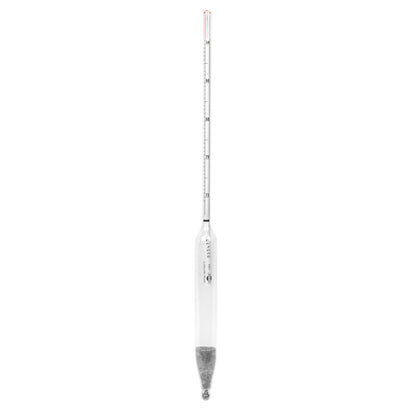

| 1.800 to 2.020 SG / 64 to 72° Baume (305mm) / 1 Each | 6603DS-5 | 1 Each |

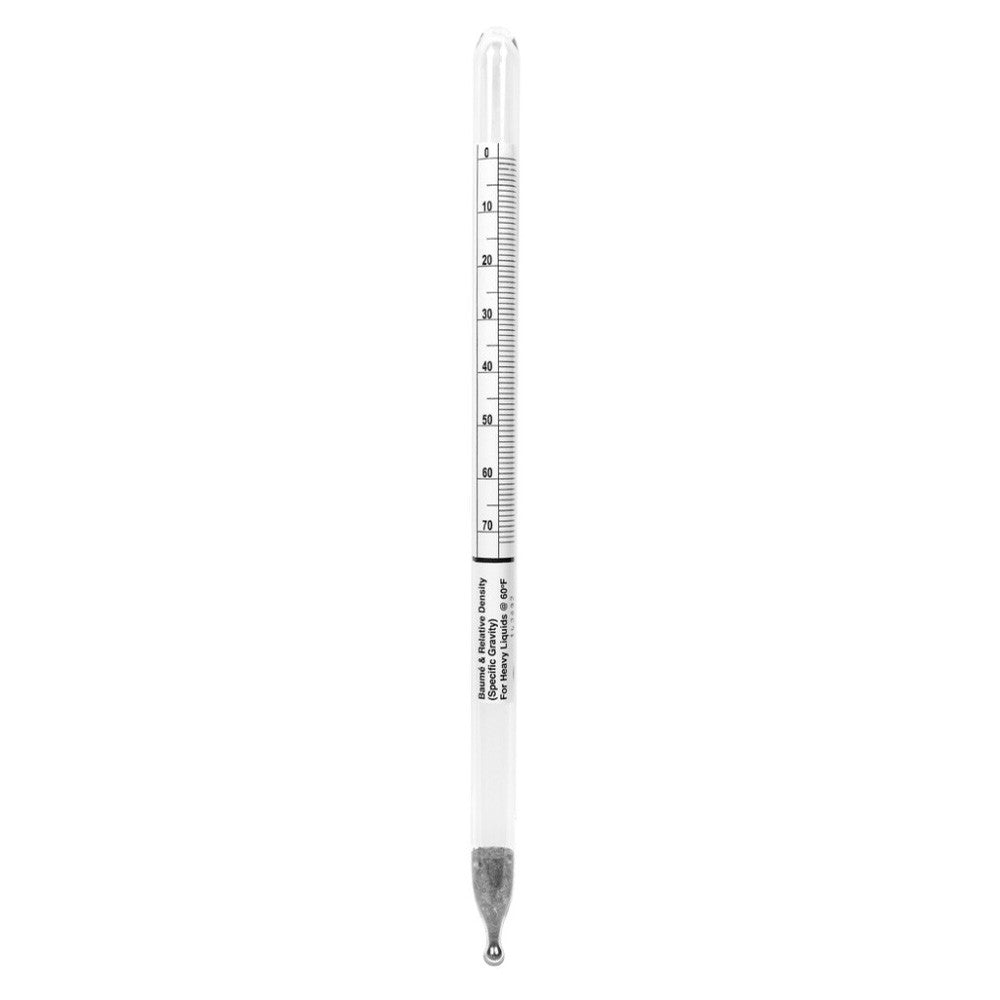

| 1.000 to 2.000 SG / 0 to 72° Baume (305mm) / 1 Each | 6603DS-7 | 1 Each |

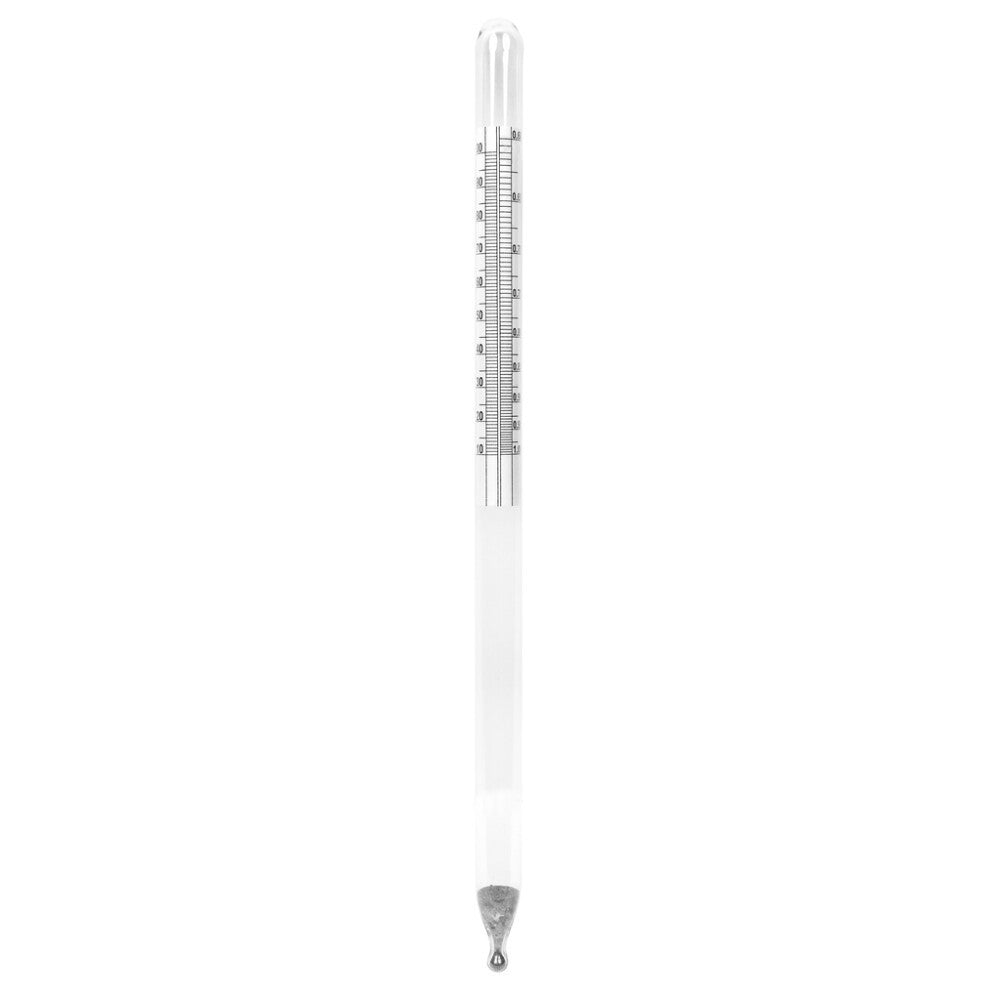

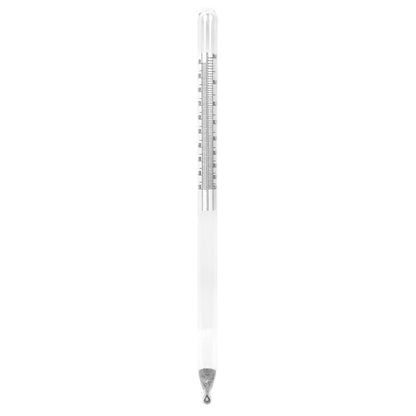

| 0.600 to 1.000 SG / 10 to 100° Baume (305mm) / 1 Each | 6603DS-13 | 1 Each |

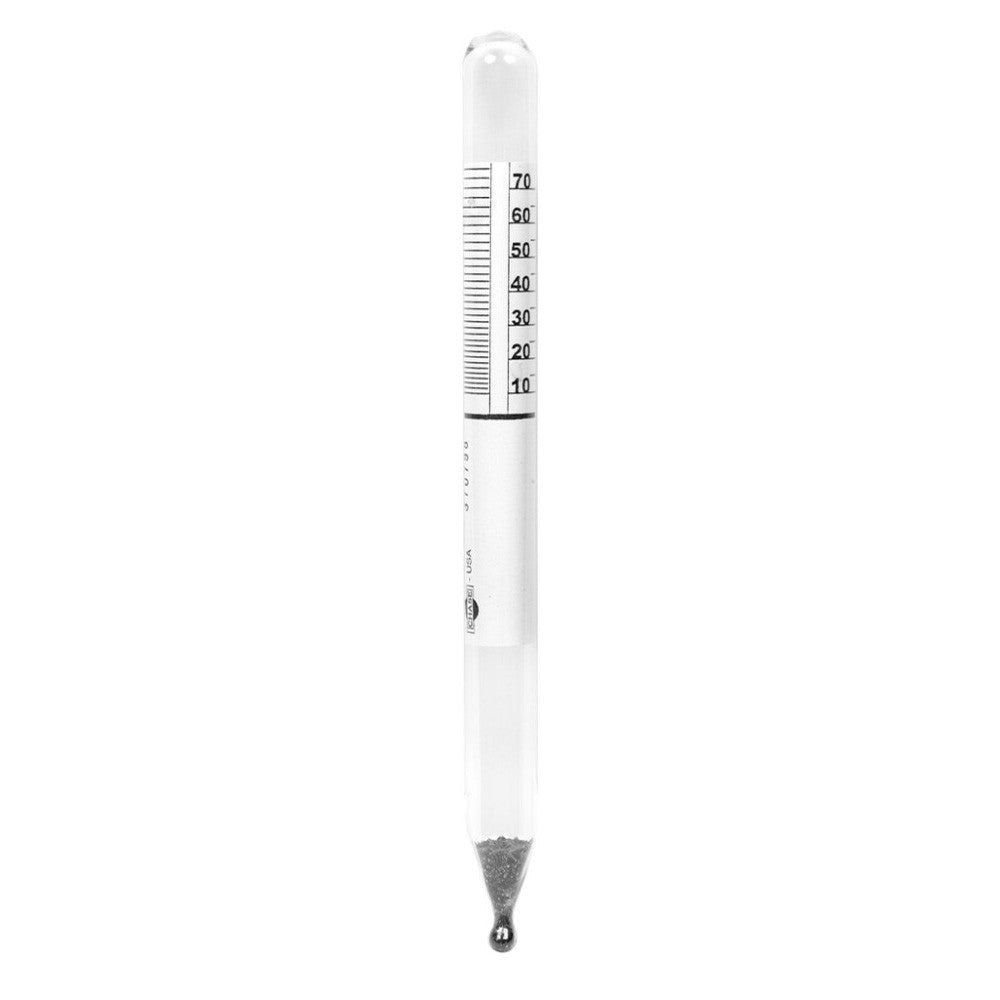

| 0.70 to 1.00 SG / 10 to 70° Baume (165mm) / 1 Each | 6604DS-04 | 1 Each |
Ordering
Authorized dealer, ships from USA inventory. Serving academic, government, and research laboratories nationwide.
Catalog Numbers (MPN)
| Catalog / Item No. (MPN) | Configuration |
|---|---|
| 6605-1 | 0.700 to 2.000 SG, 1 Each |
| 6603DS-6 | 1.000 to 1.450 SG / 0 to 45° Baume (305mm), 1 Each |
| 6603DS-6S | 1.000 to 1.400 SG / 0 to 41° Baume (305mm), 1 Each |
