Guardian Fall Protection Arc-O-Pod System Kit 20001

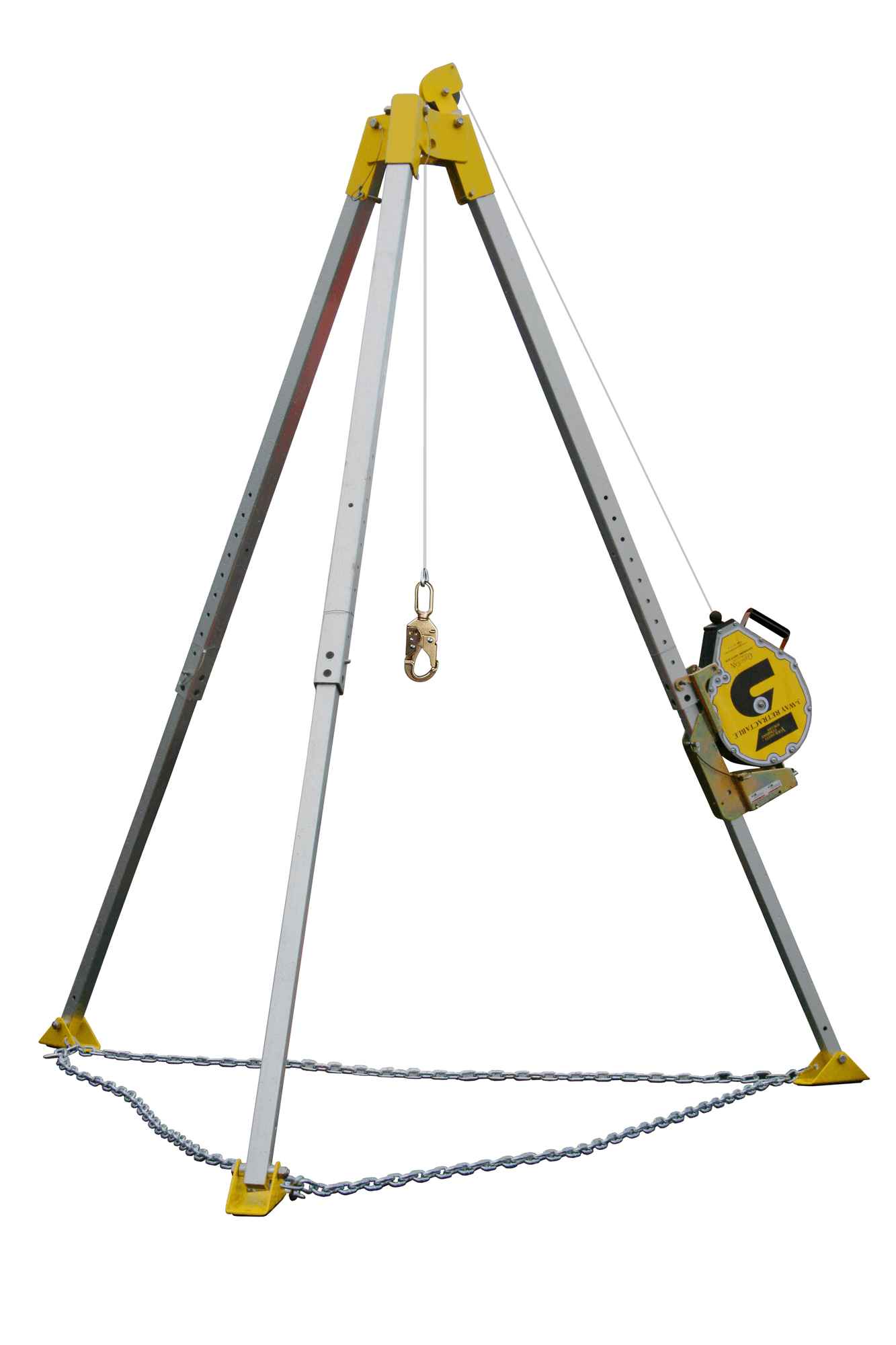

Guardian's Arc-O-Pod is an affordable, high quality Rescue and Retrieval system. The Arc-O-Pod is a 90 inch aluminum tripod that is lightweight, portable, and easily set up. It also includes a storage bag for easy transportation between jobsites. Its adjustable, locking legs can be sized in 2" increments to best fit the layout of a given work area, and are kept in position with locking push pins. The tripod can be sized to fit a maximum 5-1/2 foot diameter hole, and is specially designed to eliminate all risk of slippage or movement when in use. Its high-strength topper incorporates a pulley system to facilitate the proper use of mechanical lifeline equipment, and is also equipped with drop forged steel eyebolts for use as an anchorage point for a secondary or back-up system. The Arc-O-Pod also comes complete with a quick-mount bracket compatible with the Guardian 3-Way SRL.

Features

• Complete confined space system: Includes the Arc-O-Pod tripod, a Guardian 3-Way SRL with retrieval capability, quick-mount bracket, and Ultra Sack for rescue, retrieval, and fall arrest applications.
• Adjustable for versatile setup: Locking aluminum legs adjust in 2-inch increments, helping position the tripod securely over confined space openings up to 5-1/2 feet in diameter.
• Lightweight and portable: The durable aluminum tripod reaches a maximum height of 90 inches while remaining easy to transport, position, and set up across multiple jobsites.
• Integrated retrieval support: A high-strength top assembly with an integrated pulley guides the SRL lifeline directly over the entry point, while steel eyebolts provide connection points for a secondary or backup system.
• Built for fall protection and rescue: Supports workers weighing 130–420 lb., with a combined capacity of up to 620 lb. during assisted rescue, and meets applicable OSHA and ANSI fall protection requirements.
• PRODUCT MAY HAVE EXTENDED LEAD TIMES. PLEASE CALL FOR AVAILABILITY.
