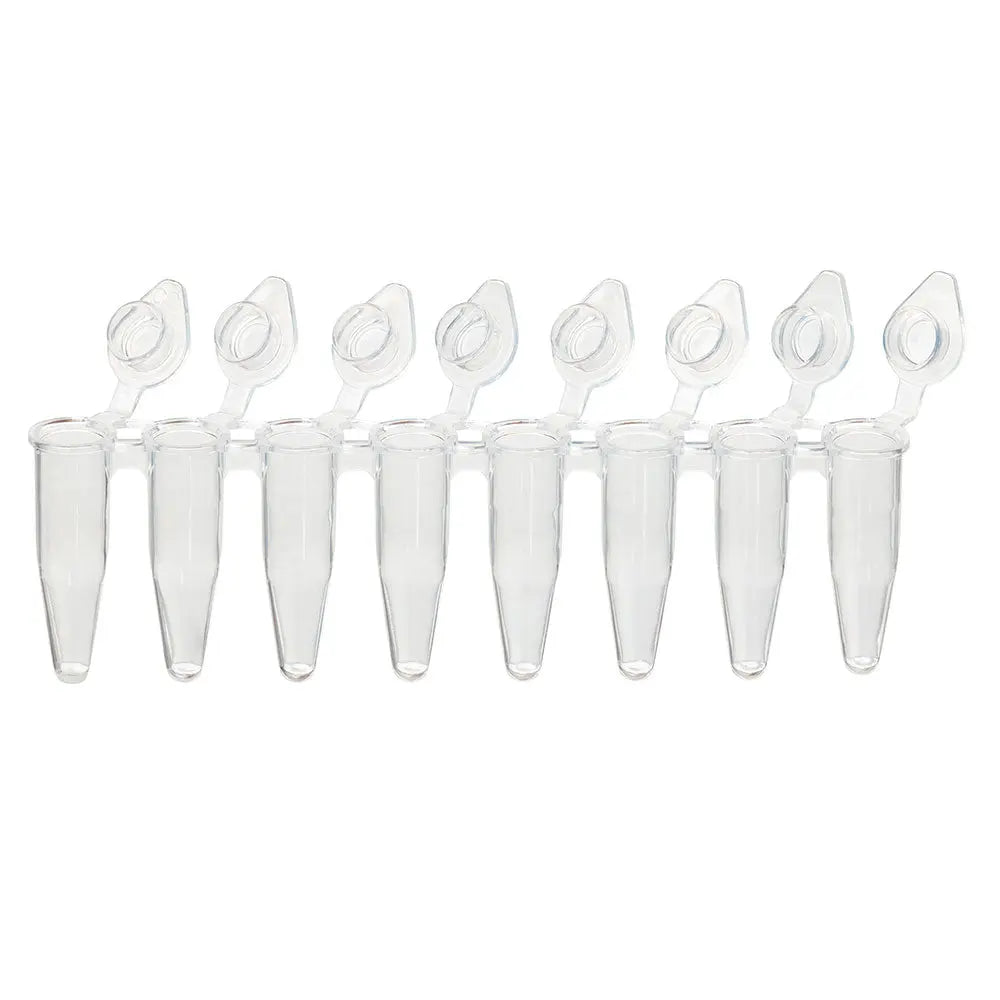

DiamondLink 0.2 mL 8-Strip PCR Tubes with Individually-Attached Flat Caps — 120 Strips/Pack
The DiamondLink 0.2 mL 8-Strip Tubes deliver thin-wall, uniform-fit strips engineered for endpoint PCR, qPCR, and high-throughput thermal cycling. Individually-attached flat caps hinge cleanly per tube, reducing cross-contamination during sample loading. Optically clear flat caps suit fluorescence reading, while white shells improve signal reflectance for real-time chemistry.
Technical Specifications
| Product Type | 0.2 mL 8-Strip PCR Tubes with Attached Flat Caps |
| Volume/Size | 0.2 mL per well, 8 wells per strip |
| Material | Thin-wall virgin polypropylene |
| Closure/Cap | Individually-attached hinged flat caps |
| Graduation | None |
| Sterility | RNase-, DNase- and DNA-free; non-sterile |
| Pack Size | 120 strips per pack |
Available Colors
| Color | SKU | Price (per pack) |
| Clear — Box of 120 | PCR-DL-02F | $131.00 |
| Assorted (Blue, Red, Green, Yellow, Violet) — Box of 120 | PCR-DL-02F-RW | $137.60 |
| White — Box of 120 | PCR-DL-02FW | $144.10 |
Applications
- Endpoint and gradient PCR on standard 96-well block thermal cyclers
- Real-time qPCR using SYBR or probe-based chemistries with white strips
- High-throughput genotyping and SNP assays requiring color-coded tracking
- Reverse transcription (RT-PCR) reaction setup and cycling
- Library prep amplification steps for NGS workflows
- Multiplex assay batching where assorted colors aid plate-map organization
Chemical Resistance
| Reagent Class | Compatibility |
| Aqueous buffers | Excellent |
| Dilute acids | Good |
| Dilute bases | Good |
| Alcohols (ethanol, isopropanol) | Good |
| Acetonitrile | Limited |
| Aromatic solvents | Poor |
| Chlorinated solvents | Poor |
Quality & Procurement
labsupplies.com is an authorized Globe Scientific dealer shipping from US inventory. Each pack carries lot numbers supporting traceability for CAP-, CLIA-, and ISO 15189-accredited laboratories. Institutional and grant-funded tiered pricing is available—contact our procurement team for quantity quotes and standing-order terms.
Frequently Asked Questions
Are these strips compatible with standard 96-well thermal cyclers?
Yes. The 0.2 mL thin-wall geometry seats in standard 96-well blocks and most rotor and block-based instruments accepting 8-strip formats for uniform heat transfer.
Which color is best for real-time qPCR?
White strips (PCR-DL-02FW) reflect fluorescence and improve signal intensity for real-time detection. Clear flat caps support optical reading from above on plate-format readers.
Are the tubes nuclease-free?
Yes. DiamondLink strips are certified RNase-, DNase- and human-DNA-free, suitable for sensitive amplification and downstream sequencing workflows.
What does the Assorted pack contain?
The Assorted pack (PCR-DL-02F-RW) includes blue, red, green, yellow and violet strips for color-coded sample tracking and plate-map organization across batched runs.
