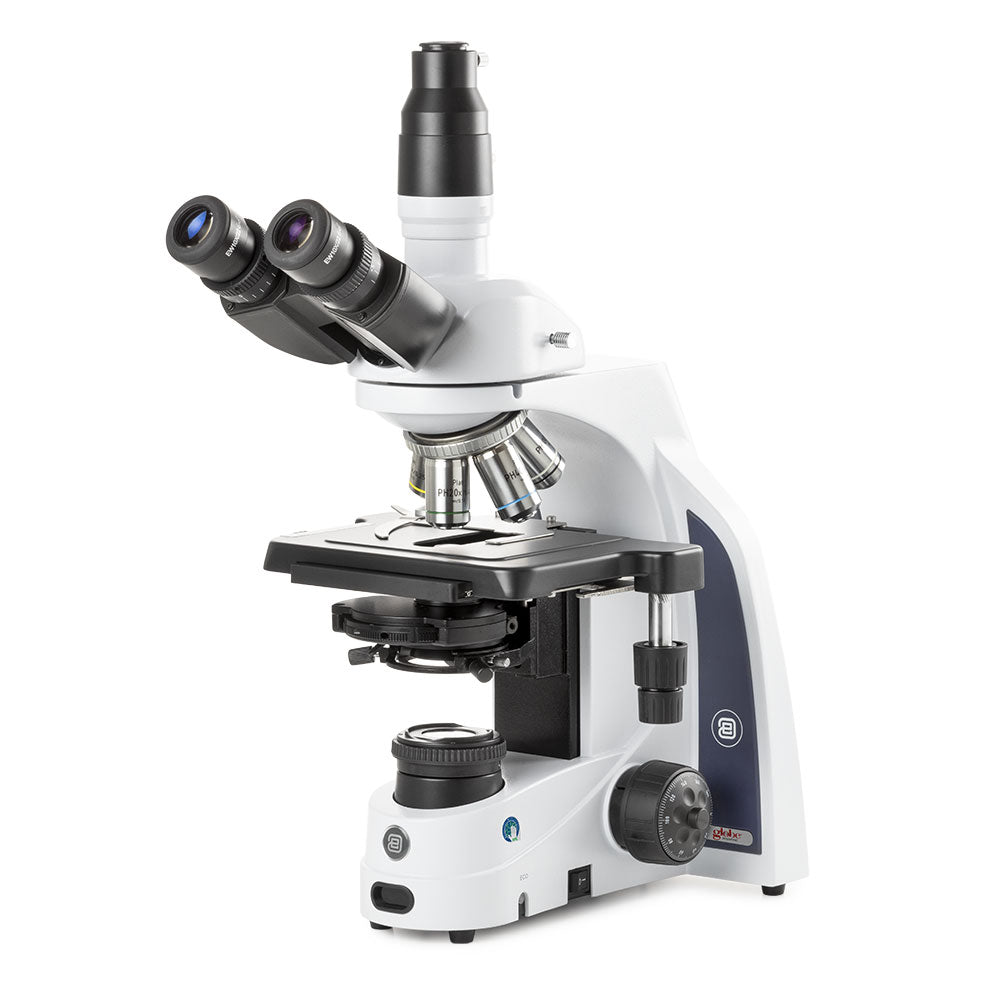

iScope Trinocular Microscope with EWF 10x/22mm Eyepieces and PLPHi Phase Objectives, 1/Unit
The Globe Scientific iScope trinocular microscope pairs wide-field EWF 10x/22mm eyepieces with plan phase PLPHi 10/20/S40/S100x oil IOS objectives for high-contrast imaging of unstained specimens. Built around a Zernike phase system with darkfield condenser, it supports clinical phase-contrast work, live-cell and culture review, and routine microbiology screening on a single stable platform.
Technical Specifications
| Product Type | Trinocular phase-contrast microscope |
| Eyepieces | EWF 10x/22mm (extra wide field) |
| Objectives | Plan phase PLPHi 10x, 20x, S40x, S100x oil IOS |
| Condenser | Zernike phase with darkfield capability |
| Head | Trinocular (dual viewing + camera port) |
| Configurations | Condenser-only or HD-Mini camera with 13" screen |
| Pack Size | 1 microscope per unit |
Available Options
| Zernike Condenser Darkfield | EIS-1153-PLPHI | $3043.80 |
| HD-Mini Camera 13" Screen | EIS-1153-PLPHI-HDS | $3985.70 |
Applications
- Phase-contrast examination of unstained living cells and cultures
- Clinical wet-prep and sediment analysis in diagnostic labs
- Microbiology screening and morphology assessment
- Cell-culture confluence and viability checks
- Oil-immersion review at S100x for fine cellular detail
- Darkfield visualization of low-contrast or motile specimens
Quality & Procurement
Purchase through labsupplies.com, an authorized Globe Scientific dealer shipping from US inventory. Each unit ships with documentation, and packaging carries lot numbers to support traceability for CAP-, CLIA-, and ISO 15189-accredited laboratories. Institutional and grant-funded tiered pricing is available on request for multi-unit or department orders.
Frequently Asked Questions
What is the difference between the two configurations?
Both share the same iScope trinocular body, EWF 10x/22mm eyepieces, and PLPHi phase objectives. The EIS-1153-PLPHI includes the Zernike condenser for darkfield, while the EIS-1153-PLPHI-HDS adds an HD-Mini camera with a 13" screen for live display and capture.
Does the trinocular port support documentation cameras?
Yes. The trinocular head provides a dedicated third port for camera mounting. The HDS option ships with the HD-Mini camera and 13" screen integrated; the standard option leaves the port open for your existing camera setup.
Which objectives are included?
Both configurations include plan phase PLPHi objectives at 10x, 20x, S40x, and S100x oil IOS, enabling consistent phase contrast across magnifications with infinity-corrected optics.
Is darkfield imaging supported?
Yes. The Zernike phase condenser supports darkfield capability, making the system suitable for low-contrast and motile specimens in addition to standard phase-contrast work.
