384-Well PCR Plate Double Notch A24/P24 | Globe Scientific

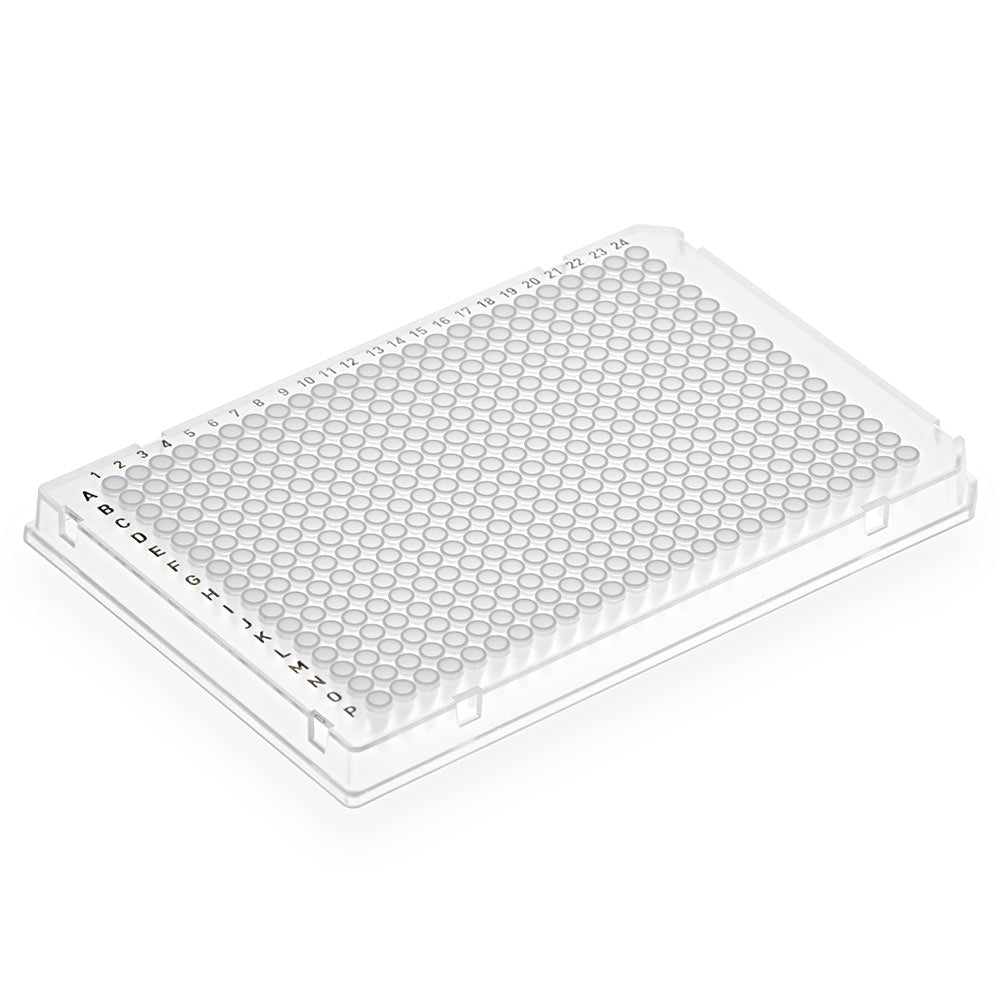

The Diamond Shell 384-well PCR plate from Globe Scientific delivers high-throughput performance for automated laboratories. These hard-shell plates feature a rigid polycarbonate frame with thin-wall polypropylene wells for optimal thermal transfer during low-volume PCR and qPCR applications. The A24 corner notch ensures correct plate orientation.

384-Well PCR Plate Specifications

• Format: 384 wells, full skirt design

• Working Volume: 30µL maximum

• Frame: Rigid polycarbonate (PC) eliminates warping

• Wells: Thin-wall polypropylene (PP)

• Corner Notch: A24/P24 for dual orientation

• ANSI/SBS compliant footprint

High-Throughput Automation

The rigid two-component design maintains flatness under thermal stress for reliable robotic handling. Compatible with Bio-Rad CFX384, Applied Biosystems QuantStudio, Roche LightCycler 480, and other 384-well thermal cyclers and liquid handling systems.

Thermal Performance

Uniform thin-wall construction enables efficient heat transfer for consistent amplification across all 384 wells. Raised well rims provide secure sealing with adhesive films or heat seals to minimize evaporation during cycling.
