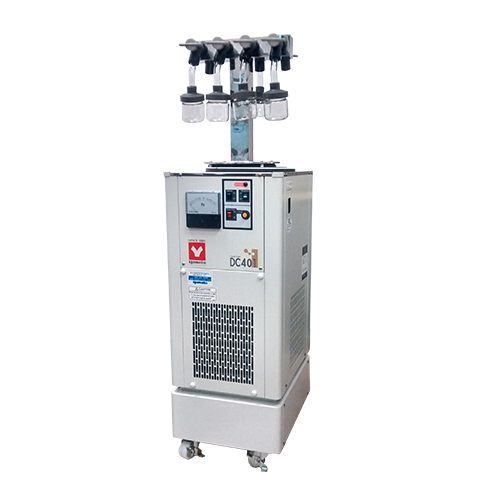

Yamato DC401B Freeze Dryer with 8-Port Manifold A Overview
The Yamato DC401 freeze dryer with Manifold A (8-port) and five 120 mL dry flasks is a benchtop lyophilizer with a refrigerated cold trap reaching −45°C and roughly 4 L internal capacity. LabSupplies.com, an authorized dealer, supplies this Yamato Scientific unit complete with straight-glass-joint flasks and caps for direct, sample-ready drying.
A cylindrical stainless steel trap (Dia. 153 × H235 mm) anchors the system, paired with a Pirani vacuum gauge for pressure monitoring. The Hot Gas Bypass System refreezes and removes ice without manual scraping. Automatic safety vacuum venting blocks oil backflow during power-off or power failure, keeping the dried product contaminant-free.
Air cooling rated at 400 W drives the R404A refrigeration circuit (300 g ±5 g). Power runs on AC115V 12 A or AC220V 7 A (50/60 Hz). The cabinet measures 300 × 450 × 920 mm, weighs about 60 kg, rolls on casters, and is made in Japan.
Key Features
- −45°C cold trap: stainless steel cylindrical trap reaches minimum temperature in about 50 minutes from 20°C.
- 8-port Manifold A: drying chamber W304 × D60 × H263 mm with 80 mm port pitch, supplied with five 120 mL dry flasks (straight glass joint and cap).
- Hot Gas Bypass defrost: ice is refrozen and removed smoothly, eliminating manual scraping between runs.
- Contaminant-free venting: automatic safety vacuum venting prevents oil backflow on power-off or power failure.
- Pirani vacuum gauge: integrated pressure readout with a Dia. 17 mm exhaust port for vacuum pump connection.
- Mobile benchtop build: caster-mounted cabinet, ~60 kg, with layered safety devices including an electric leakage breaker and back-flow prevention valve.
How to Choose the Right Freeze Dryer
Selecting a benchtop lyophilizer means matching trap temperature, capacity, and collection format to your sample chemistry and throughput. Use these axes to scope the right unit .
- Trap temperature: a −45°C cold trap suits aqueous and water-based samples; lower-eutectic solvents may need colder traps.
- Capacity: weigh dehumidifying capacity (0.6 L) and internal volume (~4 L) against your batch sizes and run frequency.
- Collection format: manifold drying with glass flasks fits multiple small batches; confirm port count and flask volume match your sample mix.
- Voltage: verify your site supports AC115V 12 A or AC220V 7 A (50/60 Hz) before specifying.
- Footprint and mobility: check bench clearance for the 300 × 450 × 920 mm cabinet; casters allow relocation.
- Safety and uptime: features like Hot Gas Bypass defrost and automatic vacuum venting reduce manual handling and protect samples.
Specifications
| Specification | Detail |
|---|---|
| Material | Glass |
| Type | Benchtop freeze dryer with refrigerated cold trap |
| Trap Cooling Temperature | -45°C |
| Time to Reach Minimum Temperature | 50 min (20°C to -45°C) |
| Dehumidifying Capacity | 0.6 L |
| Internal Capacity | ~4 L |
| Refrigeration System | Air cooling, 400 W |
| Refrigerant | R404A (300 g ±5 g) |
| Vacuum Gauge | Pirani vacuum gauge |
| Trap Defrost | Hot Gas Bypass System (ice refrozen and removed smoothly without manual scraping) |
| Contaminant-Free System | Automatic safety vacuum venting prevents oil backflow on power-off or power failure |
| Trap Material / Shape | Cylinder, stainless steel |
| Trap Dimensions | Dia. 153 × H235 mm |
| Exhaust Port | Dia. 17 mm (vacuum pump connection) |
| Operating Ambient Temperature | 5°C to 30°C |
| Safety Devices | Electric leakage breaker with overcurrent protection, refrigerator overload relay, back-flow prevention valve, safety valve linked with vacuum-pump service receptacle |
| Drain | Vacuum hose with stopper |
| Mobility | Highly mobile on casters |
| External Dimensions (W×D×H) | 300 × 450 × 920 mm |
| Weight | ~60 kg |
| Country of Origin | Japan |
| Included Accessories | Vacuum silicone grease, vacuum hose |
| Drying Chamber | Manifold A, 8-port (W304 × D60 × H263 mm; 80 mm port pitch) |
| Included Glassware | 5 × 120 mL dry flasks with straight glass joint and cap |
| Power Source | AC115V 12 A / AC220V 7 A (50/60 Hz) |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DC-401B | SET | SET |
Documentation
More in This Series
- Freeze Dryer With Refrigerated Cold Trap Main Unit 4L . Trap Cooling Temp. -45°C
- Dc401 With 12 Port Flask Mounting Chamber & 5 Pcs. Of 120mL Dry Flask With Straight Glass Joint & Cap
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, delivering a genuine DC401 freeze dryer backed by full manufacturer warranty. Order directly and ship from USA inventory.
- Authorized Yamato dealer: genuine unit with manufacturer warranty intact.
- In stock: ready to ship from USA inventory.
- Lab-equipment specialists: dedicated team for technical and specification questions.
Frequently Asked Questions
What trap temperature does the Yamato DC401 reach?
The DC401 cold trap reaches −45°C. It cools from 20°C to −45°C in approximately 50 minutes, supporting reliable vapor collection for aqueous samples.
What capacity and dimensions does the DC401 offer?
The DC401 provides a dehumidifying capacity of 0.6 L and roughly 4 L internal capacity. Its stainless steel trap measures Dia. 153 × H235 mm, and the cabinet is 300 × 450 × 920 mm.
What power supply does the DC401 require?
The DC401 operates on AC115V 12 A or AC220V 7 A at 50/60 Hz. Confirm your site circuit matches the configuration you order before installation.
What glassware is included with this configuration?
This configuration includes Manifold A, an 8-port drying chamber (W304 × D60 × H263 mm, 80 mm port pitch), plus five 120 mL dry flasks with straight glass joint and cap. Vacuum silicone grease and a vacuum hose are also supplied.
How does the DC401 handle defrosting and contamination?
The DC401 uses a Hot Gas Bypass System that refreezes and removes ice without manual scraping. Automatic safety vacuum venting prevents oil backflow on power-off or power failure, protecting the dried product.
Where is the Yamato DC401 manufactured?
The DC401 is made in Japan. It ships from LabSupplies.com USA inventory as an authorized Yamato Scientific dealer, with manufacturer warranty included.
