Cooling Water Circulator 16L Overview

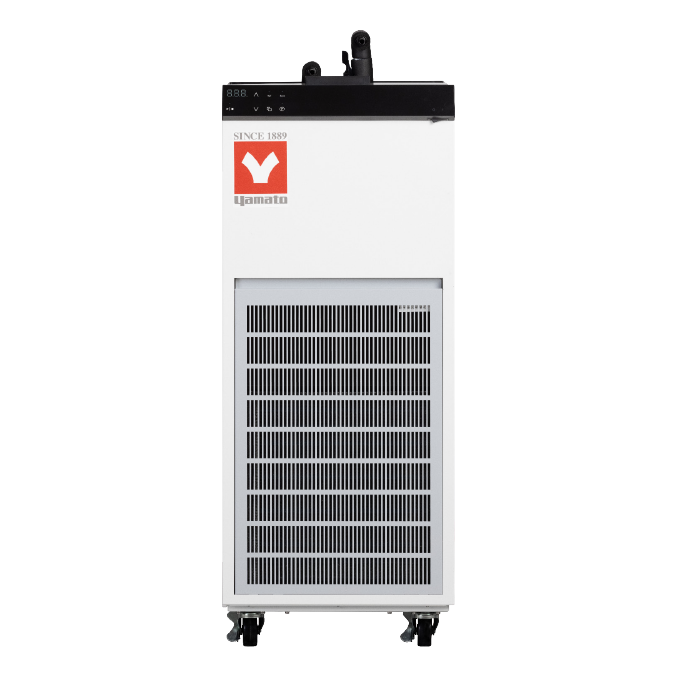

The Cooling Water Circulator 16L (model CF802A) from Yamato Scientific is a refrigerated recirculating water circulator offering a 16 L capacity and a setting range of -20°C to 30°C. LabSupplies.com, an authorized dealer, supplies this closed-circulation cooler for labs that must hold process temperatures without a heating function.
A stainless steel water bath and stainless steel cooling coil resist corrosion across roughly 15.5 L of internal volume. The R410A air-cooled refrigeration system delivers about 1320 W of cooling at 10°C, while a Pt100Ω sensor and ON-OFF refrigeration control hold ±1.0°C accuracy. One unit can feed up to four rotary evaporators through a single rear circulation line.
Power comes from a single-phase AC115V, 15 A supply with plug. Bench footprint measures 340 × 370 × 838 mm, and the circulator weighs approximately 44 kg. Country of origin is China. Included accessories cover a 1 m condensation drain hose, two hose clamps, two hose nozzles, and a spare 2 A service-outlet fuse.
Key Features
- Cooling performance: approximately 1320 W at 10°C and 700 W at -10°C, with a -20°C to 30°C setting range and ±1.0°C control accuracy.
- Stainless steel construction: stainless steel water bath and stainless steel cooling coil for durable, corrosion-resistant circulation.
- Multi-evaporator support: connects up to four rotary evaporators from a single rear-panel circulation line with a one-touch swivel L-type connector and flow-rate valve.
- Digital control: white LED display with key entry, 1°C resolution, Pt100Ω sensor, and refrigeration ON-OFF temperature control.
- Comprehensive safety suite: overcurrent ELCB, sensor-failure detection, upper/lower temperature limit alerts, high-pressure cutoff, fan and pump protection, and refrigerator-protection delay timer.
- Flow capability: maximum flow rate near 14 L/min and maximum head of roughly 14.3 m using tap water or anti-freeze solution above 10°C.
How to Choose the Right Circulator / Chiller
Matching a recirculating chiller to your workflow means weighing thermal load, fluid delivery, and site power before issuing a PO. Review these axes against the CF802A specifications.
- Cooling capacity: confirm the wattage your application removes at the target temperature; the CF802A provides about 1320 W at 10°C and 700 W at -10°C.
- Temperature range: verify the low-end setpoint your process needs. This unit sets from -20°C to 30°C and has no heating function.
- Flow and head: size pump output to your loop length and lift; here flow reaches roughly 14 L/min with a 14.3 m maximum head.
- Voltage and power: match circuit availability. The CF802A runs on single-phase AC115V at 15 A with a plug.
- Footprint and weight: plan bench or floor space for a 340 × 370 × 838 mm unit weighing about 44 kg.
- Safety devices: evaluate protection features such as ELCB, high-pressure cutoff, and limit alerts when the chiller runs unattended.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 16 L |
| Voltage | 115V |
| Type | Refrigerated recirculating water circulator (cooling) |
| Cooling System | Closed circulation |
| Circulating Medium | Tap water; anti-freeze solution (over 10°C) |
| Temperature Setting Range | -20°C to 30°C (no heating function) |
| Temperature Control Accuracy | ±1.0°C |
| Temperature Fluctuation | 3.0°C |
| Cooling Capacity | ~1320 W at 10°C; ~700 W at -10°C |
| Max Flow Rate | ~14 L/min |
| Max Head (Lift) | ~14.3 m |
| Operating Ambient Temperature | 5°C to 35°C |
| Temperature Control System | Refrigeration ON-OFF |
| Temperature Sensor | Pt100Ω |
| Controller | White LED digital display, key entry, 1°C resolution |
| Refrigeration System | Air cooling / 700 W |
| Refrigerant | R410A |
| Cooling Coil | Stainless steel |
| Circulation Connection | Rear top panel, single line; one-touch swivel L-type connector with flow-rate valve |
| Water Bath Material | Stainless steel |
| Water Bath Capacity | ~15.5 L (liquid volume 14 L) |
| Multiple Evaporator Support | Connects up to four (4) rotary evaporators |
| Solvent Recovery | Optional in-body solvent recovery secondary trap (glass container) |
| Service Outlet | 2 A |
| Safety Devices | Overcurrent ELCB, temperature sensor failure detection, temperature upper/lower limit alert and error, refrigerator high-pressure cutoff, fan motor protection, circulation pump protection, refrigerator-protection delay timer, refrigerator overload relay, service-outlet overcurrent fuse |
| External Dimensions (W×D×H) | 340 × 370 × 838 mm (340 × 408 × 920 mm incl. protrusions) |
| Weight | ~44 kg |
| Power Source | Single-phase AC115V, 15 A (with plug) |
| Country of Origin | China |
| Included Accessories | Condensation drain hose (1 m), hose clamps (2), hose nozzles (2), spare 2 A service-outlet fuse |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| CF-802A-115V | EA | EA |
Documentation
More in This Series
Why Buy From LabSupplies.com
LabSupplies.com supplies the Yamato Scientific CF802A as an authorized dealer, so every order ships as a genuine, warranty-backed unit ready to install. Our team answers spec and compatibility questions directly, then fulfills your order without a back-and-forth quote process.
- Authorized Yamato Scientific dealer: genuine unit with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Lab-equipment specialists: dedicated support for circulator and chiller spec questions.
Frequently Asked Questions
What temperature range does the CF802A cover?
The CF802A sets from -20°C to 30°C with ±1.0°C control accuracy. It is a cooling-only circulator and has no heating function, using refrigeration ON-OFF control and a Pt100Ω sensor.
How much cooling capacity does this circulator deliver?
Cooling capacity is approximately 1320 W at 10°C and about 700 W at -10°C. The air-cooled refrigeration system uses R410A refrigerant rated near 700 W.
What are the dimensions and weight of the CF802A?
External dimensions are 340 × 370 × 838 mm (340 × 408 × 920 mm including protrusions), and the unit weighs roughly 44 kg. The stainless steel water bath holds about 15.5 L with a 14 L liquid volume.
What power supply does the CF802A require?
The CF802A requires single-phase AC115V at 15 A and ships with a plug. It also includes a 2 A service outlet protected by an overcurrent fuse, with a spare fuse supplied.
What materials contact the circulating fluid?
The water bath and cooling coil are both stainless steel. The circulating medium can be tap water, or an anti-freeze solution when operating above 10°C, delivered through a one-touch swivel L-type connector with a flow-rate valve.
Can the CF802A support multiple rotary evaporators?
Yes, one CF802A connects to up to four rotary evaporators through a single rear top-panel circulation line. An optional in-body solvent recovery secondary trap with a glass container is also available.
