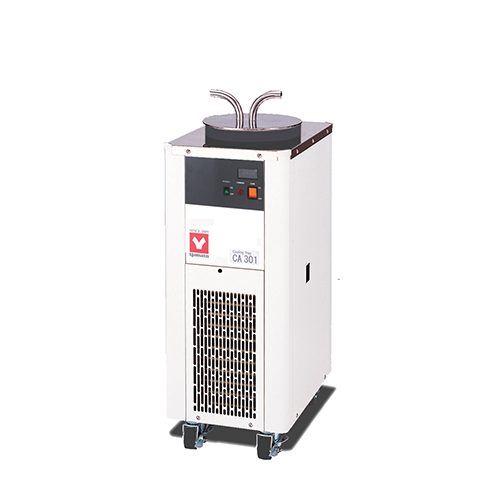

Yamato CA301 Refrigerated Cold Trap, 4L (−45°C) Overview
The Yamato CA301 Cold Trap is a refrigerated cold trap with a 4 L trap capacity and a minimum temperature of -45°C, sold by LabSupplies.com as an authorized Yamato Scientific dealer. Mechanical cooling removes the need for dry ice or liquid nitrogen during operation.
A stainless steel condenser handles standard moisture capture, while an optional glass trap accommodates corrosive vapors. CFC-free refrigerant and an air-cooled refrigeration system drive a dehumidifying capacity of up to 0.9 kg for water-type liquids. Built construction targets continuous vapor trapping ahead of vacuum pumps.
Power options cover AC115V and 220V, letting labs match site supply. Casters with front-wheel stoppers make the unit mobile across benches and equipment rows. Dual roles as a low-temperature bath or pre-cooling tank extend its use beyond pump protection.
Key Features
- Minimum temperature -45°C: mechanically cooled trap reaches deep cold without dry ice or liquid nitrogen.
- 4 L trap capacity: condenses and holds moisture and harmful vapors ahead of the vacuum pump.
- Dehumidifying capacity to 0.9 kg: rated maximum for water-type liquids during continuous operation.
- CFC-free, air-cooled refrigeration: environmentally conscious refrigerant with an air-cooling condenser system.
- Stainless steel condenser: standard build, with an optional glass trap for corrosive vapors.
- Mobile cart design: mounted on casters with front-wheel stoppers for positioning and lock-down.
How to Choose the Right Cold Trap
Selecting a cold trap comes down to matching trapping capacity, achievable temperature, and your site power against the vapors you need to capture and the pump you are protecting.
- Trap capacity: a 4 L volume sets how much condensed moisture and vapor the trap holds between service intervals.
- Minimum temperature: -45°C determines which vapors condense; deeper cold captures lower-boiling solvents.
- Cooling method: mechanical refrigeration avoids the recurring cost and handling of dry ice or liquid nitrogen.
- Voltage: choose 115V or 220V to match your laboratory's available circuit.
- Condenser material: stainless steel suits general moisture; specify the optional glass trap for corrosive vapors.
- Mobility and footprint: caster mounting with wheel stoppers lets the unit move between rotary evaporators, freeze dryers, and vacuum ovens.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 4 L |
| Voltage | 115V |
| Type | Refrigerated cold trap (CFC-free, mechanically cooled) |
| Minimum Trap Temperature | -45°C |
| Dehumidifying Capacity | Max 0.9 kg (water-type liquid) |
| Trap Capacity | 4 L |
| Refrigerant | CFC-free refrigerant |
| Condenser | Stainless steel (standard); optional glass trap for corrosives |
| Refrigeration System | Air cooling |
| Mobility | Mounted on casters with front-wheel stoppers |
| Operation | Worry-free — no dry ice or liquid nitrogen required |
| Application | Protects vacuum pumps on vacuum ovens, rotary evaporators and freeze dryers by trapping moisture and harmful vapors; also usable as a low-temperature or pre-cooling tank |
| Power Source | AC115V |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| CA-301-115V | 115V | EA |
| CA-301-220V | 220V | EA |
Documentation
Why Buy From LabSupplies.com
LabSupplies.com ships the Yamato CA301 cold trap directly from USA inventory, so your order moves without a quote request or callback.
- Authorized Yamato Scientific dealer: genuine unit backed by the manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Direct ordering: place the order online — no PO chase or support ticket required.
- Lab-equipment specialists: dedicated team for spec and configuration questions.
Frequently Asked Questions
What is the minimum temperature of the Yamato CA301 cold trap?
The CA301 reaches a minimum trap temperature of -45°C. Mechanical refrigeration drives the cooling, so no dry ice or liquid nitrogen is required to hit that temperature.
What is the trap capacity of the CA301?
The CA301 has a 4 L trap capacity. It carries a dehumidifying capacity of up to 0.9 kg for water-type liquids during operation.
What voltage options are available?
Two voltage configurations are offered: 115V (CA-301-115V) and 220V (CA-301-220V). Select the option that matches your laboratory's available circuit.
What is the condenser made of?
The standard condenser is stainless steel. An optional glass trap is available for applications involving corrosive vapors.
Does the CA301 need dry ice or liquid nitrogen?
No. The CA301 uses a CFC-free, air-cooled mechanical refrigeration system, eliminating the recurring cost and handling of dry ice or liquid nitrogen.
What can the CA301 cold trap be used for?
It protects vacuum pumps on vacuum ovens, rotary evaporators, and freeze dryers by trapping moisture and harmful vapors. The unit also functions as a low-temperature or pre-cooling tank.
