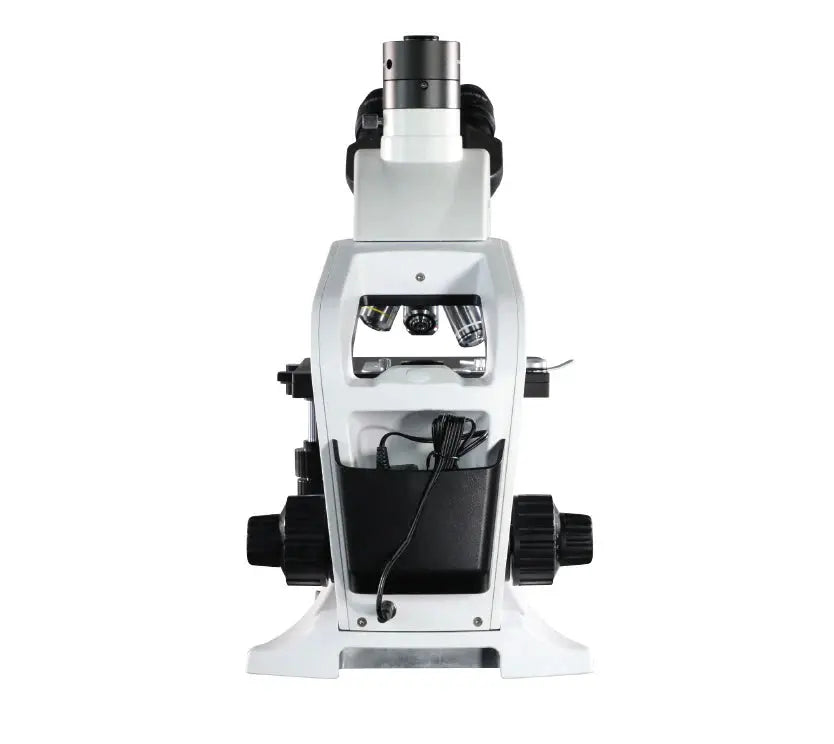

The LW Scientific Binocular Compound Microscope INM-B04A-IPL3 delivers high-resolution imaging for clinical, research, and educational laboratories. Binocular Compound Microscope features Infinity Plan optics that produce sharp, flat-field images across the entire field of view, ensuring precise specimen analysis from edge to edge.
Specifications
| Specification | Detail |
|---|---|
| Infinity Plan objectives | 4x, 10x, 40xR, 100xR (oil) |
| Head | Binocular |
| Objectives | 4 infinity PLAN |
| Magnification | 40×–1000× |
| Illumination | LED |
| Model year | 2025 |
Compare the Innovation Infinity PLAN Family (2025)
| Model | Head | Objectives | Notes |
|---|---|---|---|
| iNM-B04A-iPL3 (this model) | Binocular | 4 PLAN | |
| iNM-B05A-iPL3 | Binocular | 5 PLAN | |
| iNM-T04A-iPL3 | Trinocular | 4 PLAN | Camera-ready |
| iNM-T05A-iPL3 | Trinocular | 5 PLAN | Camera-ready |
| iNS-T4BV-iPL3 | Trinocular | 4 PLAN | + BioVID 4K camera & 13.3" monitor |
All Innovation models use infinity-corrected PLAN optics, 40×–1000×, and LED.
Applications
Ideal for cytology, hematology, and microbiology applications
Frequently Asked Questions
What viewing head does the iNM-B04A-iPL3 have?
The iNM-B04A-iPL3 has a binocular head.
What is the iNM-B04A-iPL3 designed for?
The iNM-B04A-iPL3 is designed for clinical, research, and veterinary laboratories.
Parts and accessories for the Innovation Infinity PLAN Microscope
LW Scientific lists these 21 part numbers for iNM-B04A-iPL3:
| Part number | Part | Type |
|---|---|---|
| INP-ASB7-LED7 | LED Bulb Assembly for Innovation | Microscope Bulbs, LED Assemblies & Power |
| MSP-CSE7-HDLK | Universal Hard Microscope Carry Case with Wheels | Microscope Cases, Covers & Slides |
| INE-1022-30HP | 10x/22 mm Super-Wide High-Point Eyepiece | Microscope Eyepieces |
| INE-1022-WRET | 10x/22 mm Super-Wide High-Point Eyepiece with Reticle | Microscope Eyepieces |
| MSE-1615-3077 | 16x/15 mm Eyepiece, 30 mm | Microscope Eyepieces |
| MSE-2012-30HP | 20x/12 mm Eyepiece, 30 mm | Microscope Eyepieces |
| INH-BSFI-77NE | Binocular Head for Innovation (Infinity) | Microscope Heads & Camera Tubes |
| I4P-CMNT-F05X | Focusable 0.5x C-Mount Trinocular Pipe | Microscope Heads & Camera Tubes |
| INH-TRII-ET0E | Trinocular Head for Innovation (Infinity) with Eyetube & C-Mount | Microscope Heads & Camera Tubes |
| MSO-100X-IPDR | 100x Infinity Plan Objective | Microscope Objectives |
| I4O-100X-IPOL | 100x Infinity Plan Oil Objective | Microscope Objectives |
| I4O-010X-IPDR | 10x Infinity Plan Objective | Microscope Objectives |
| MSO-0025-iPDR | 2.5x Infinity Plan Objective | Microscope Objectives |
| I4O-020X-IPDR | 20x Infinity Plan Objective | Microscope Objectives |
| I4O-040X-IPDR | 40x Infinity Plan Objective | Microscope Objectives |
| I4O-004X-IPDR | 4x Infinity Plan Objective | Microscope Objectives |
| MSO-050X-IPOL | 50x Infinity Plan Oil Objective | Microscope Objectives |
| MSO-060X-IPDR | 60x Infinity Plan Objective | Microscope Objectives |
| INP-PHST-20BF | Infinity Turret Phase Kit for Innovation | Phase, Darkfield & Polarizing Kits |
| INP-CND7-DFOL | Oil Darkfield Condenser for Innovation | Phase, Darkfield & Polarizing Kits |
| INP-POL7-7777 | Simple Polarizer Attachment for Innovation | Phase, Darkfield & Polarizing Kits |
Browse by type: Microscope Bulbs, LED Assemblies & Power, Microscope Cases, Covers & Slides, Microscope Eyepieces, Microscope Heads & Camera Tubes, Microscope Objectives, Phase, Darkfield & Polarizing Kits.
Every LW Scientific part number is on the LW Scientific catalog page, which filters by the model you own.
