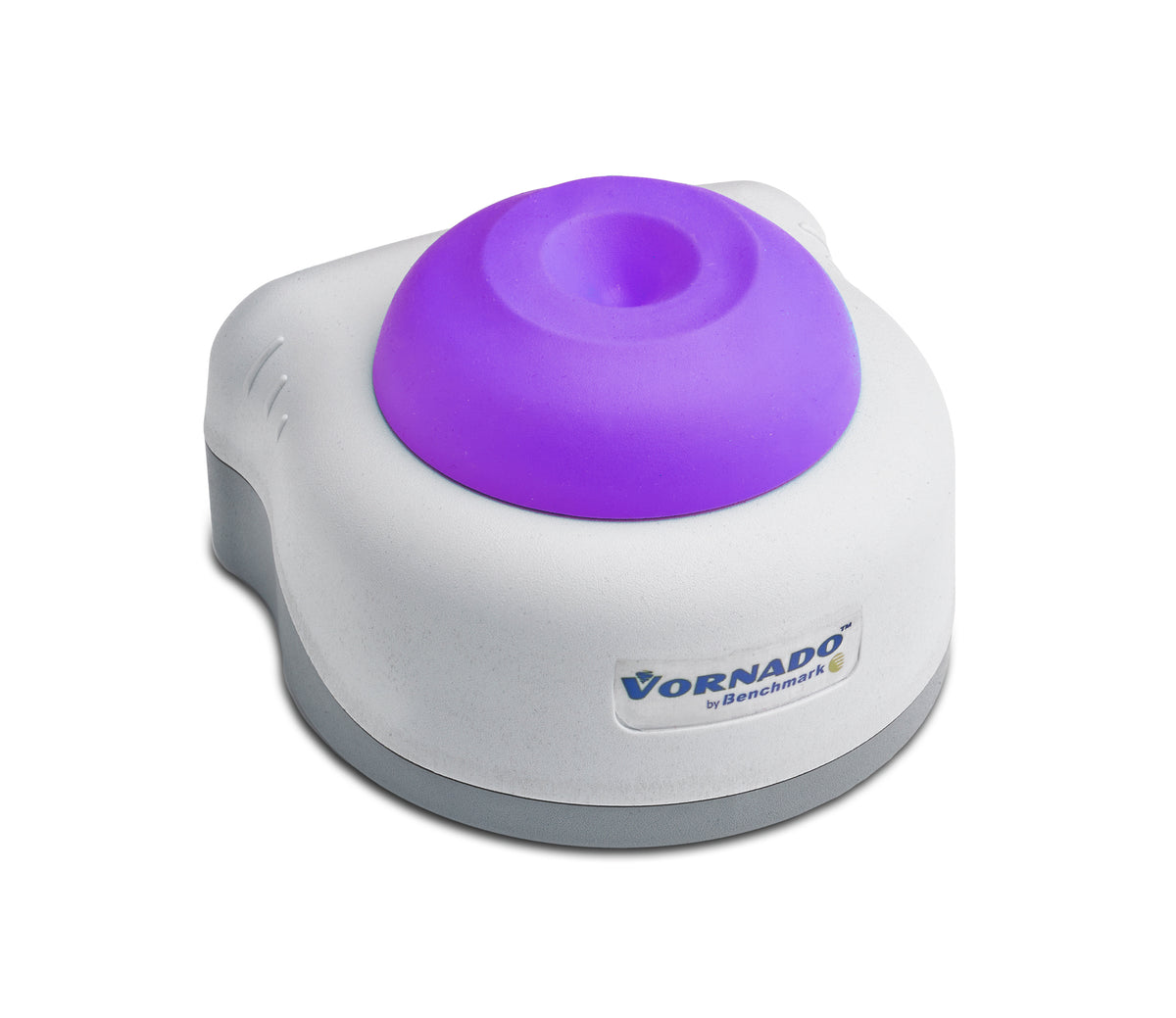

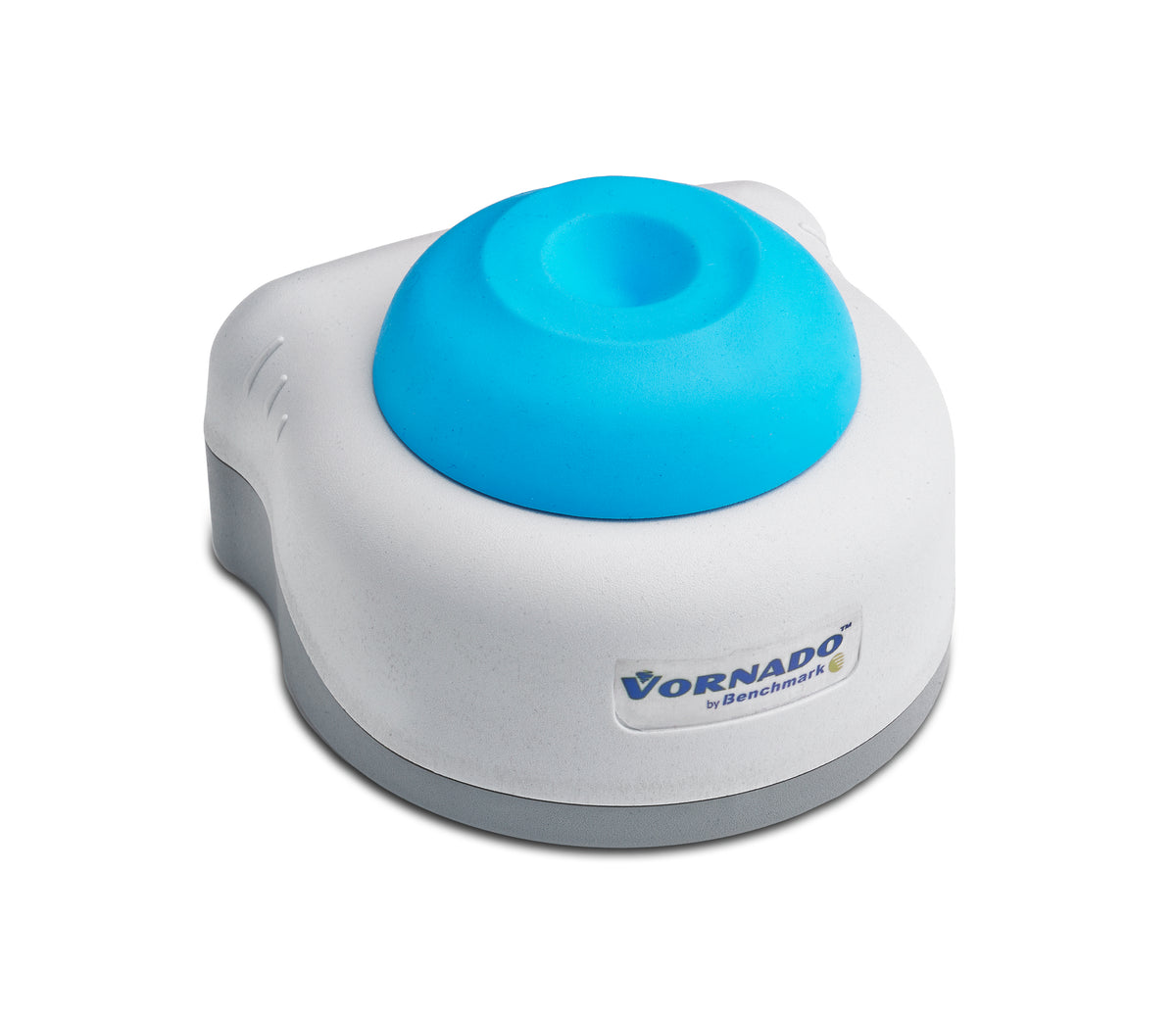

The Vornado is a miniature touch-activated vortex mixer that runs at a fixed 2,800 rpm with a 4 mm orbit, enough to vortex nearly full 50 mL tubes. Light pressure on the cup head starts the motor, and releasing it stops the motor at once. The housing measures 3.7 × 3.9 × 2.6 in and weighs 1 lb, and the head is shaped to keep liquid out of the motor housing. A 100–240V, 50W supply covers both plug versions, and the cup head comes in five colors.
Key features
- Fixed 2,800 rpm with a 4 mm orbit for tubes up to 50 mL

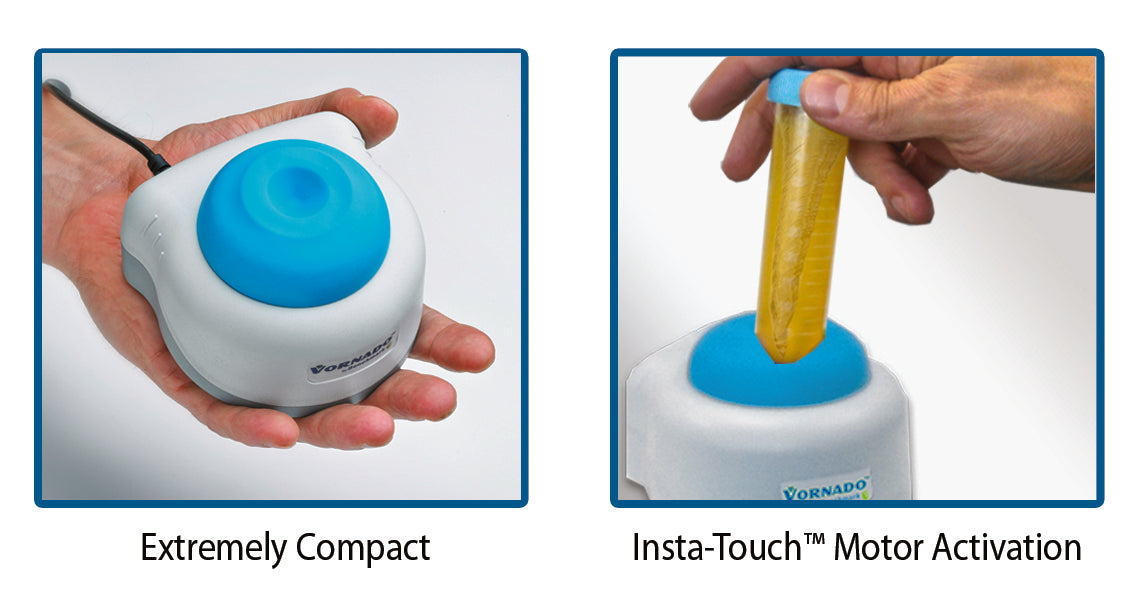

- Insta-Touch pressure start: runs only while a tube presses the cup head
- 3.7 × 3.9 × 2.6 in footprint, 1 lb
- Head design keeps liquids out of the motor housing
- 100–240V, 50–60Hz, 50W; operates from 4 to 45°C
- Cup head in blue, green, grey, purple or red
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Speed | 2,800 rpm (fixed) |
| Operating Mode | Touch (pressure-activated) |
| Orbit | 4 mm |
| Max Tube Size | 50 mL |
| Dimensions (W × D × H) | 3.7 × 3.9 × 2.6 in (9.4 × 9.9 × 6.6 cm) |
| Operating Temperature | 4–45°C |
| Weight | 1 lb (0.4 kg) |
| Electrical | 100–240 V, 50–60 Hz; 50 W |
| Warranty | 2 years |
Ordering information
| Catalog number | Cup Head Color | Power |
|---|---|---|
| BV101-B | Blue | 100–240V, US plug |
| BV101-B-E | Blue | 100–240V, European plug |
| BV101-G | Green | 100–240V, US plug |
| BV101-G-E | Green | 100–240V, European plug |
| BV101 | Grey | 100–240V, US plug |
| BV101-E | Grey | 100–240V, European plug |
| BV101-P | Purple | 100–240V, US plug |
| BV101-P-E | Purple | 100–240V, European plug |
| BV101-R | Red | 100–240V, US plug |
| BV101-R-E | Red | 100–240V, European plug |
