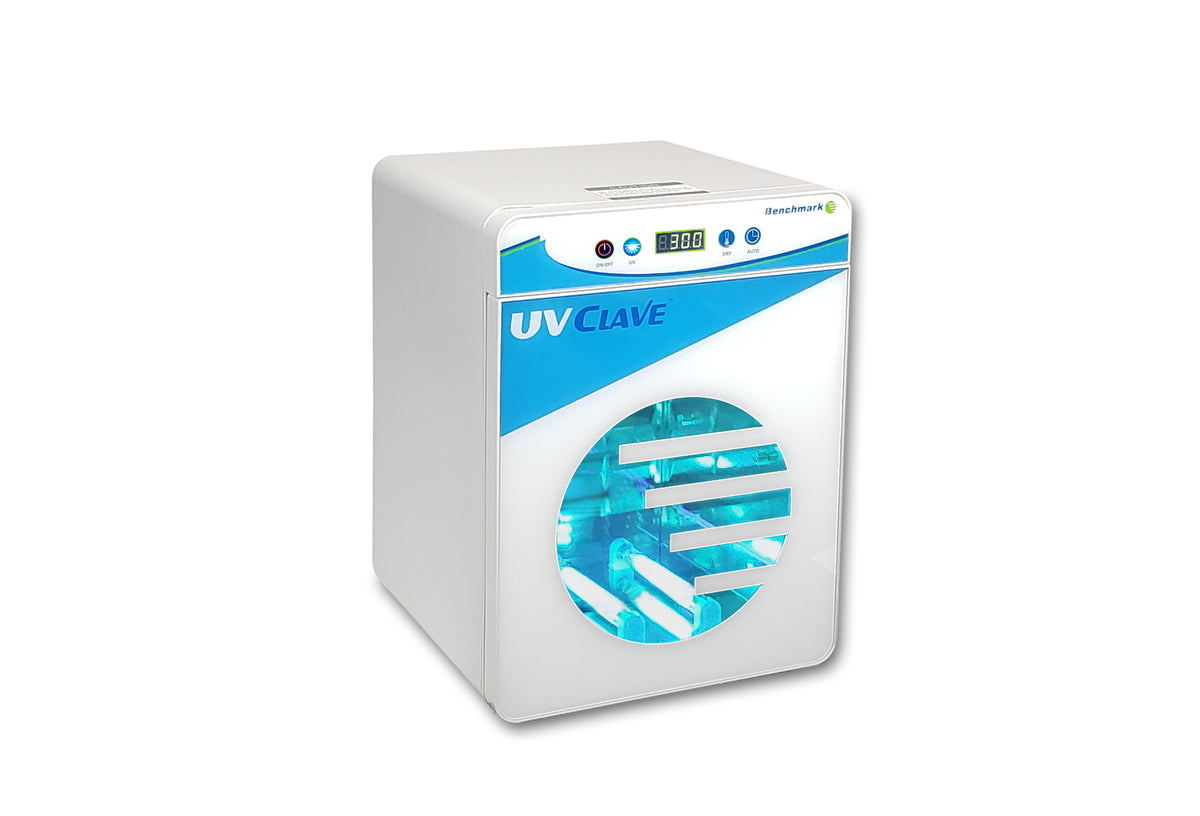

The UV Clave is a benchtop ultraviolet chamber for decontaminating PCR vessels, tools and other research items of surface DNA, RNA and microorganisms. Six 4 W UV-C lamps at 254 nm sit at the top and bottom of a reflective chamber, and a UV-C transparent shelf passes more than 90% of the light, so items receive exposure from all sides. A 20 minute cycle delivers 600 mJ/cm². UV time is set from 5 to 20 minutes, and an optional 55°C heating cycle of 30–120 minutes dries washed items. The lamps shut off automatically when the door opens.
Key features
- Six 4 W UV-C lamps at 254 nm, mounted top and bottom
- UV intensity above 500 µW/cm² at chamber center
- UV timer 5–20 min in 5 min steps; 600 mJ/cm² per 20 min run
- 55°C drying heater, 30–120 min in 30 min steps
- 10 × 8 in shelves: two stainless steel wire, one UV-C transparent
- Lamps switch off automatically when the door is opened
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | B1450 / B1450-E |
| UV Lamps | 6 × 4 W (top and bottom of chamber) |
| UV Wavelength | 254 nm |
| UV Intensity | 500+ µW/cm² (center of chamber) |
| UV Dose | 600 mJ/cm² (20 min cycle) |
| UV Timer | 5–20 min (5 min increments) |
| Heater Timer | 30–120 min (30 min increments) |
| Heater Temperature | 55 °C |
| Exterior Dimensions | 11.5 × 10.5 × 15.7 in (29.2 × 26.7 × 40 cm) |
| Shelf Dimensions | 10 × 8 in (25.4 × 20.3 cm) |
| Shelves | 2 stainless steel wire; 1 UV-C transparent |
| Weight | 11 lb (5 kg) |
| Electrical | 115 V, US plug (B1450); 230 V, European plug (B1450-E) |
| Power | 110 W |
| Warranty | 2 Years |
Ordering information
| Catalog number | Power |
|---|---|
| B1450 | 115V, US plug |
| B1450-E | 230V, European plug |
