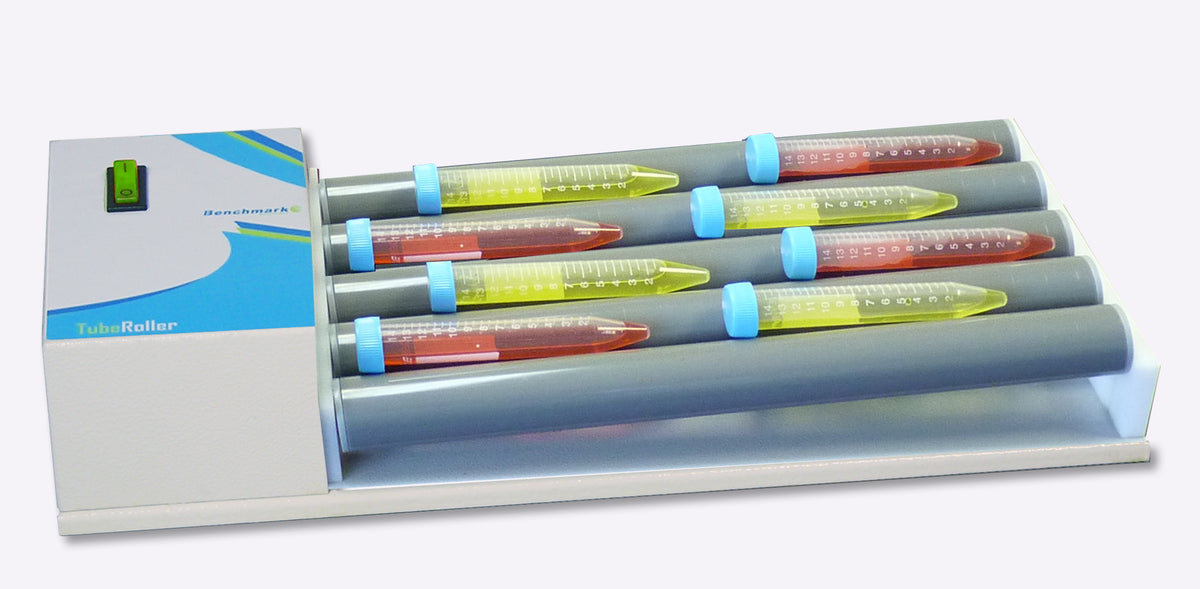

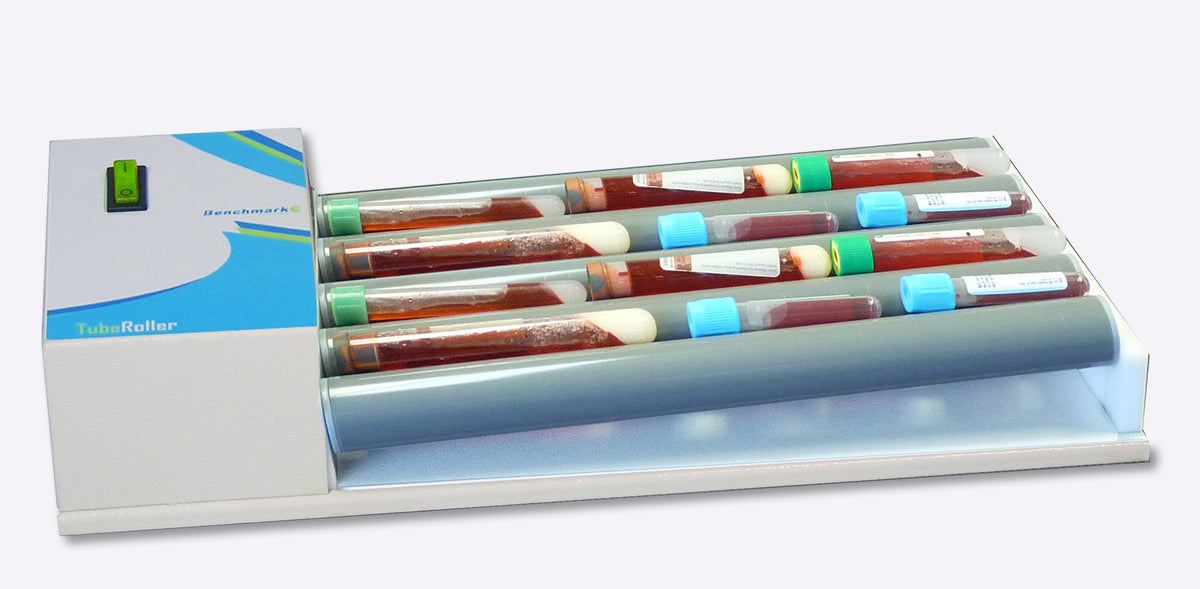

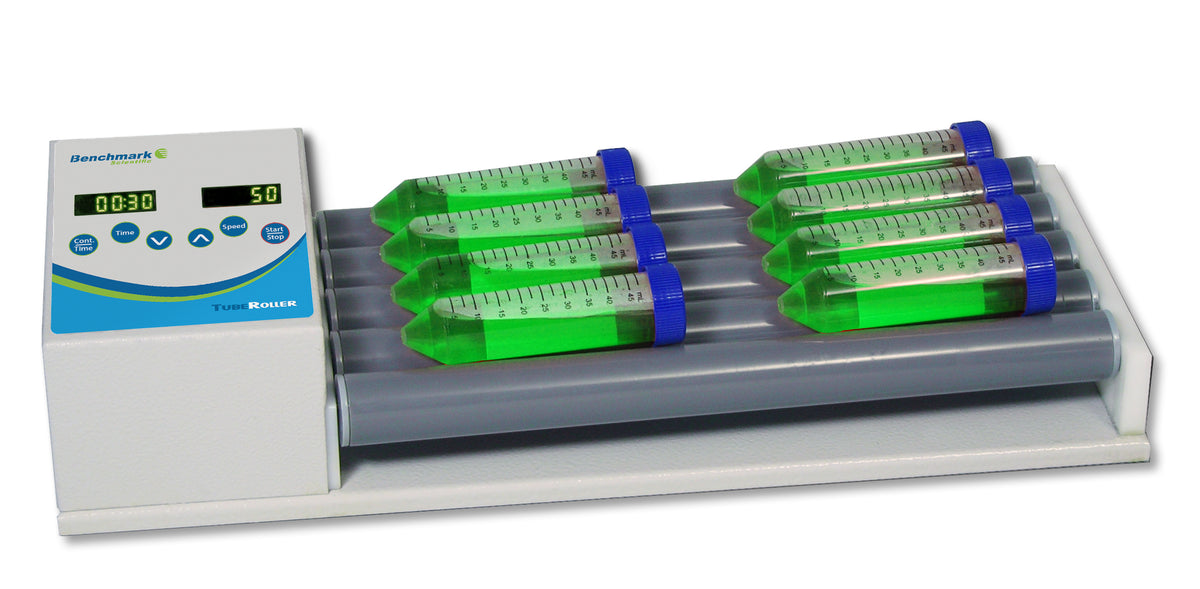

The R3005 TubeRoller mixes blood collection tubes, test tubes, centrifuge tubes, bottles and roller bottles on five rollers, each 1.2 × 12.5 in. Speed is variable from 2 to 80 rpm. With each revolution one side of the rollers rises about 0.5 in and returns, adding a ±5° tilt that mixes samples end to end. It accepts vessels 8 to 200 mm in diameter and weighs 11 lb.
Key features
- 5 rollers, each 1.2 × 12.5 in
- Variable speed 2–80 rpm
- Simultaneous roll and ±5° tilt
- Takes vessels from 8 to 200 mm diameter
- Operates from 4°C to 40°C
- 11 lb; 115 or 230V, 50W
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | R3005 / R3005-E |
| Speed Range | 2–80 rpm (variable) |
| Motion | Simultaneous roll and tilt (±5°) |
| Number of Rollers | 5 |
| Roller Dimensions | 1.2 × 12.5 in (3 × 32 cm) |
| Vessels Accepted | 8–200 mm diameter |
| Operating Temperature | 4–40°C |
| Weight | 11 lb (5 kg) |
| Electrical | 115 V or 230 V, 50–60 Hz; 50 W |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| R3005 | 115V, US plug |
| R3005-E | 230V, European plug |
