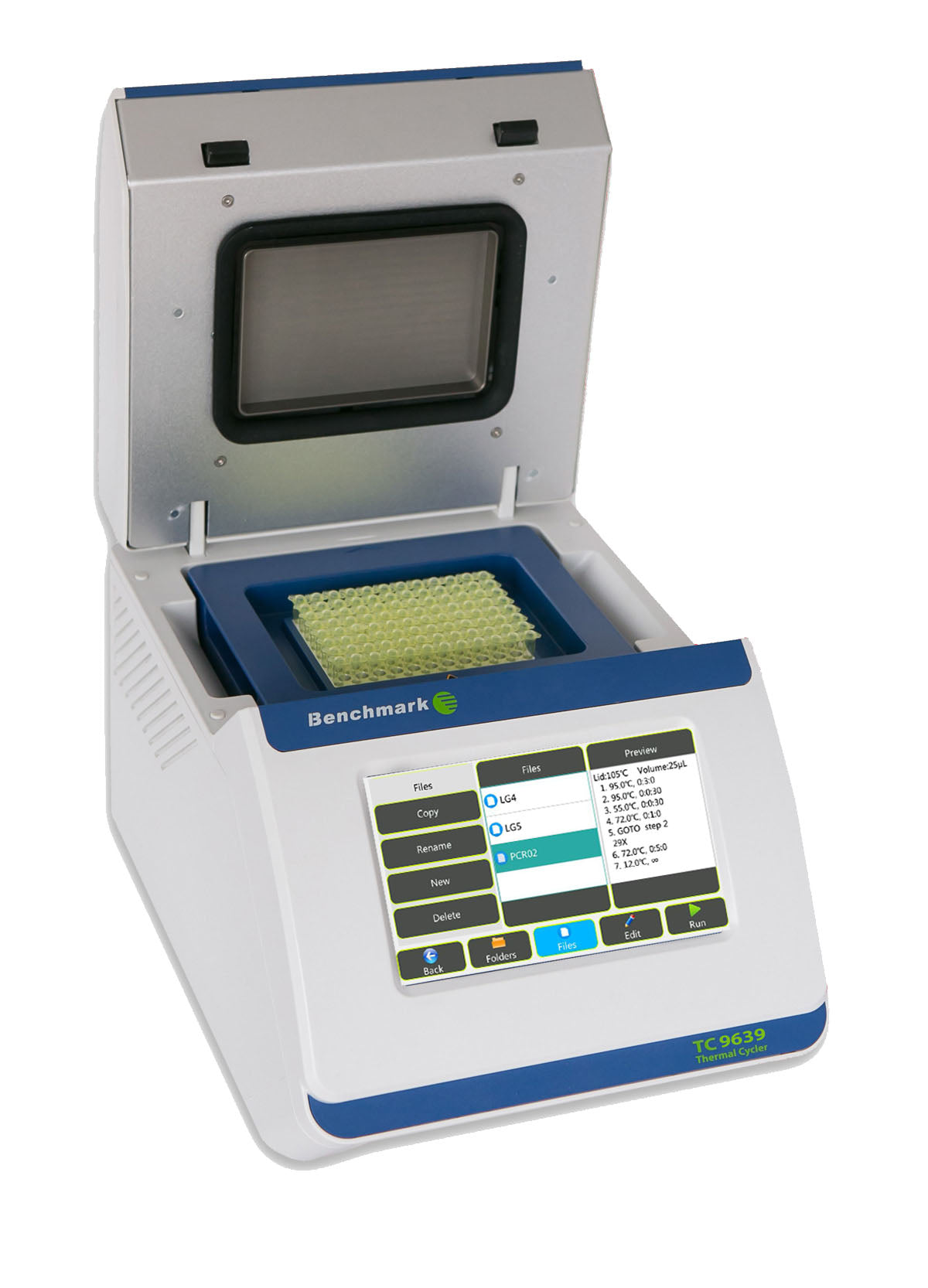

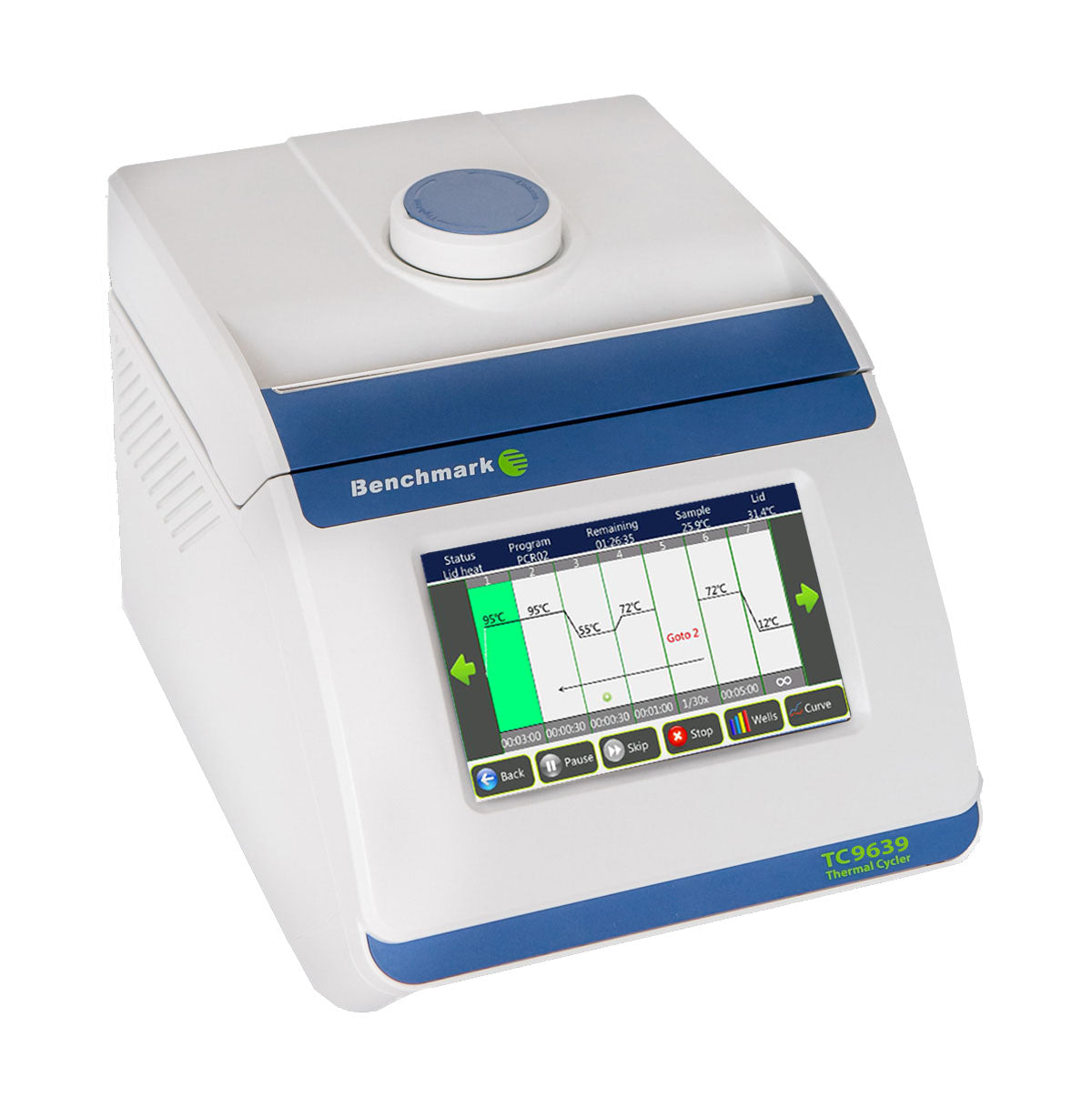

The TC 9639 T5000-96 is a gradient thermal cycler fitted with a multiformat block that holds 96 × 0.2 mL tubes, 0.2 mL strips or one non-skirted 96-well plate. Block temperature is held to ±0.2°C accuracy and uniformity, ramping at up to 5°C per second, and the heated lid adjusts from 30°C to 112°C. Protocols are entered through an on-screen wizard and stored without limit on a flash drive.
Key features
- ±0.2°C accuracy and uniformity, 5°C/s maximum ramp
- Heated lid 30–112°C; switches off below a 35°C block temperature
- Multi-user login with password-protected program folders
- USB, LAN and RS232; universal 75–275V power
- In-situ adapter for the 9639 block holds 4 slides
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | T5000-96 / T5000-96-E |
| Capacity | 96 × 0.2 mL tubes, 0.2 mL strips or 1 × 96-well plate (non-skirted) |
| Temperature Control Mode | Simulated sample or block |
| Temperature Accuracy | ±0.2 °C |
| Temperature Uniformity | ±0.2 °C |
| Max Ramp Rate | 5 °C/s |
| Heated Lid Temperature | 30–112 °C (user adjustable) |
| Program Memory | Unlimited with flash drive |
| Communication | USB, LAN, RS-232 |
| Electrical | 75–275 V, 50–60 Hz; 600 W |
| Dimensions | 10.2 × 14.2 × 9.9 in (26 × 36 × 25 cm) |
| Weight | 16 lb (7.3 kg) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| T5000-96 | 115V, US plug |
| T5000-96-E | 230V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| T5000-A-IS | Benchmark Scientific In-Situ Adapter T5000-A-IS |
