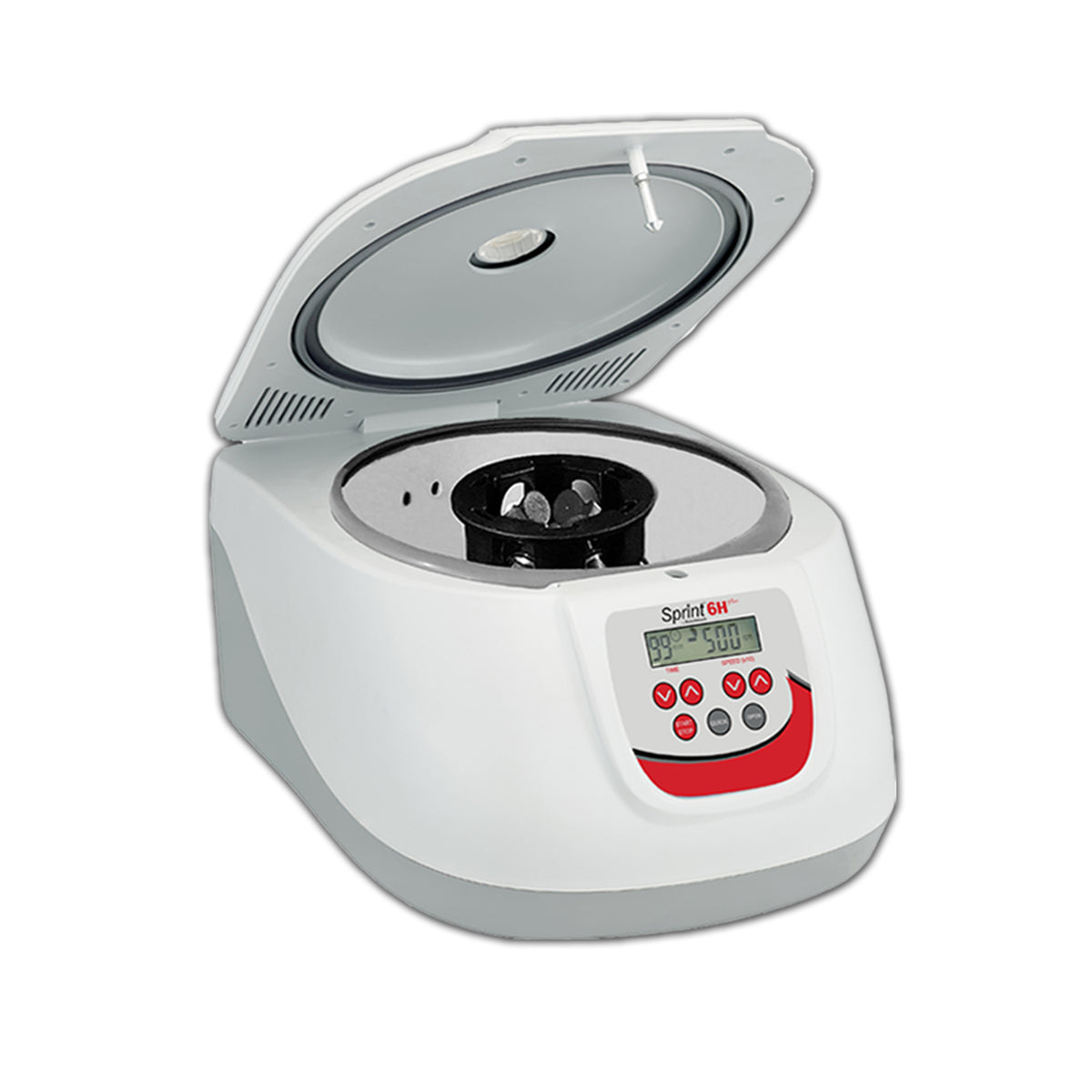

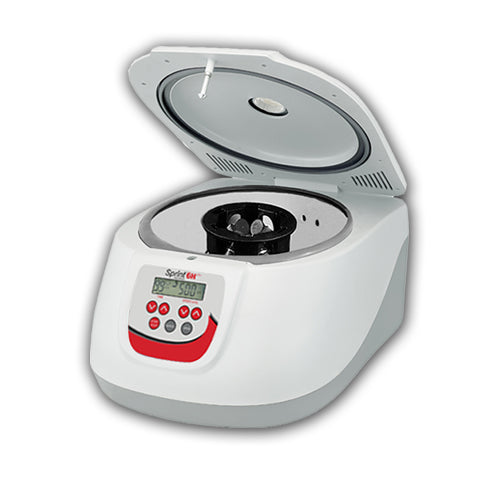

The Sprint 6H Plus is the premium Sprint model, a horizontal swing-out centrifuge for coagulation, PPP and urinalysis work. Speed is set digitally from 100 to 4,000 rpm (100–2,504 × g) in 100 rpm or 100 rcf steps, with adjustable acceleration and deceleration and a momentary mode. The standard rotor holds 6 × 15 mL conical or round-bottom tubes, and an optional fixed-angle rotor raises capacity to 12 × 15 mL. A backlit LCD, a timer from 20 seconds to 99 minutes or continuous, and imbalance detection complete the controls.
Key features
- 100–4,000 rpm, up to 2,504 × g, in 100 rpm or 100 rcf steps
- Swing-out rotor for 6 × 15 mL conical or round-bottom tubes
- Optional fixed-angle rotor holds 12 × 15 mL
- Adjustable acceleration and deceleration; momentary spin
- Safety imbalance detection system
- Timer 20 s to 99 min or continuous; 12 × 16 × 10.5 in
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | C3303-6HP / C3303-6HP-E |
| Speed Range | 100–4,000 rpm |
| Max RCF | 2,504 × g |
| Rotor | 6-place swing-out (horizontal), included |
| Capacity | 6 × 15 mL (swing-out); 12 × 15 mL with optional fixed-angle rotor |
| Speed Increment | 100 rpm or 100 × g |
| Timer | 20 sec–99 min, or continuous |
| Momentary Spin | Yes |
| Safety | Imbalance detection |
| Dimensions | 12 × 16 × 10.5 in (30.5 × 40.6 × 26.7 cm) |
| Weight | 21 lb (9.5 kg) |
| Electrical | 115 V, US plug (C3303-6HP); 230 V, European plug (C3303-6HP-E); 50–60 Hz; 100 W |
| Warranty | 2 Years |
Ordering information
| Catalog number | Power |
|---|---|
| C3303-6HP | 115V, US plug |
| C3303-6HP-E | 230V, European plug |
