The RotoBot Mini is a programmable tube rotator with digital speed control from 1 to 80 rpm and more than 10 operating modes covering rotation, mixing and vibration. Runs can be full 360° rotation or interrupted with pauses and mixing intervals, and the C1 and C2 custom modes chain actions in sequence. It comes with holders for 12 × 1.5 mL, 2 × 15 mL and 2 × 50 mL tubes, and accepts up to 60 × 1.5 mL, 10 × 15 mL or 6 × 50 mL. The timer runs from 1 sec to 99 hrs 59 min or continuous, and it operates from 2 to 70°C.
Key features
- 1–80 rpm digital speed control

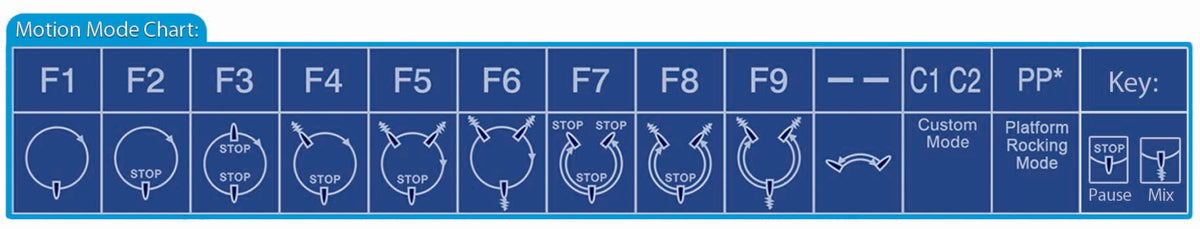

- More than 10 modes; C1 and C2 custom sequences

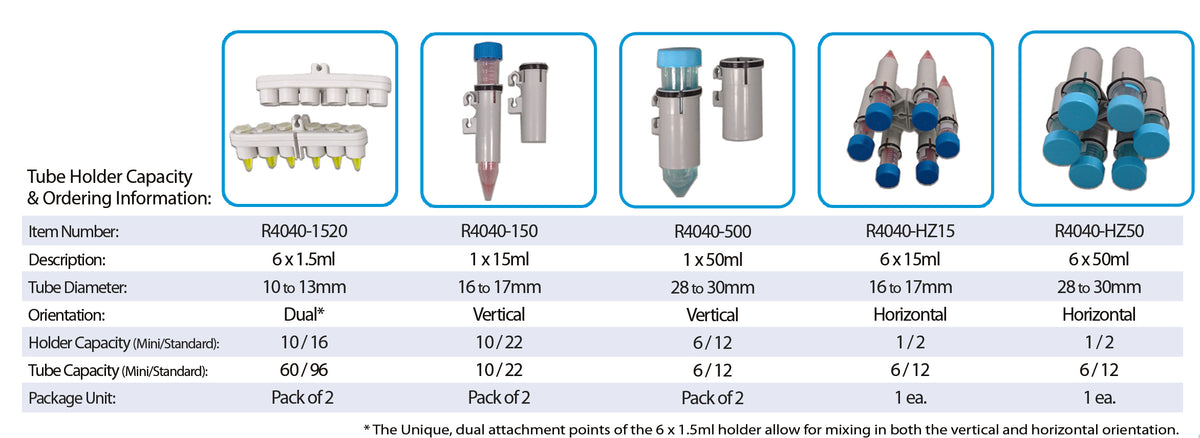

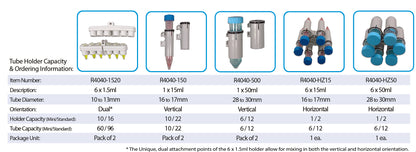

- Holders for 12 × 1.5 mL, 2 × 15 mL and 2 × 50 mL included
- Max 60 × 1.5 mL, 10 × 15 mL or 6 × 50 mL
- Timer 1 sec to 99 hrs 59 min, or continuous
- Cold room and incubator safe, +2 to +70°C
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | R4040 / R4040-E |
| Speed Range | 1–80 rpm (variable) |
| Operating Modes | More than 10, plus 2 custom modes (C1, C2) |
| Timer | 1 s–99 h 59 min or continuous |
| Max Capacity | 6 × 50 mL; 10 × 15 mL; 60 × 1.5 mL |
| Included Tube Holders | 12 × 1.5 mL; 2 × 15 mL; 2 × 50 mL |
| Operating Temperature | 2–70°C |
| Dimensions | 11.4 × 5.4 × 7.8 in (29 × 13.7 × 19.9 cm) |
| Weight | 4 lb (1.8 kg) |
| Electrical | 100–240 V, 50–60 Hz; 3 A |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| R4040 | 100–240V, US plug |
| R4040-E | 100–240V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| R4040-HZ15 … | Benchmark Scientific RotoBot Horizontal Rotisserie R4040-HZ Series |
| R4040-RP | Benchmark Scientific Rocking Platform for RotoBot Mini R4040-RP |
Questions about the RotoBot Mini Programmable Rotator R4040
What accessories are available for the RotoBot Mini Programmable Rotator R4040?
Benchmark Scientific lists R4040-HZ15 (RotoBot Horizontal Rotisserie) and R4040-RP (Rocking Platform for RotoBot Mini) for the RotoBot Mini Programmable Rotator R4040.
Is the RotoBot Mini Programmable Rotator R4040 available with a European plug?
Yes. R4040-E is the European-plug version of R4040; both run on 100–240V, so only the plug differs.
