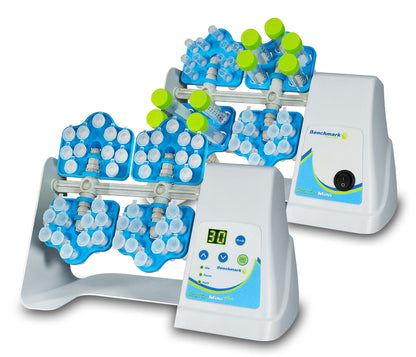

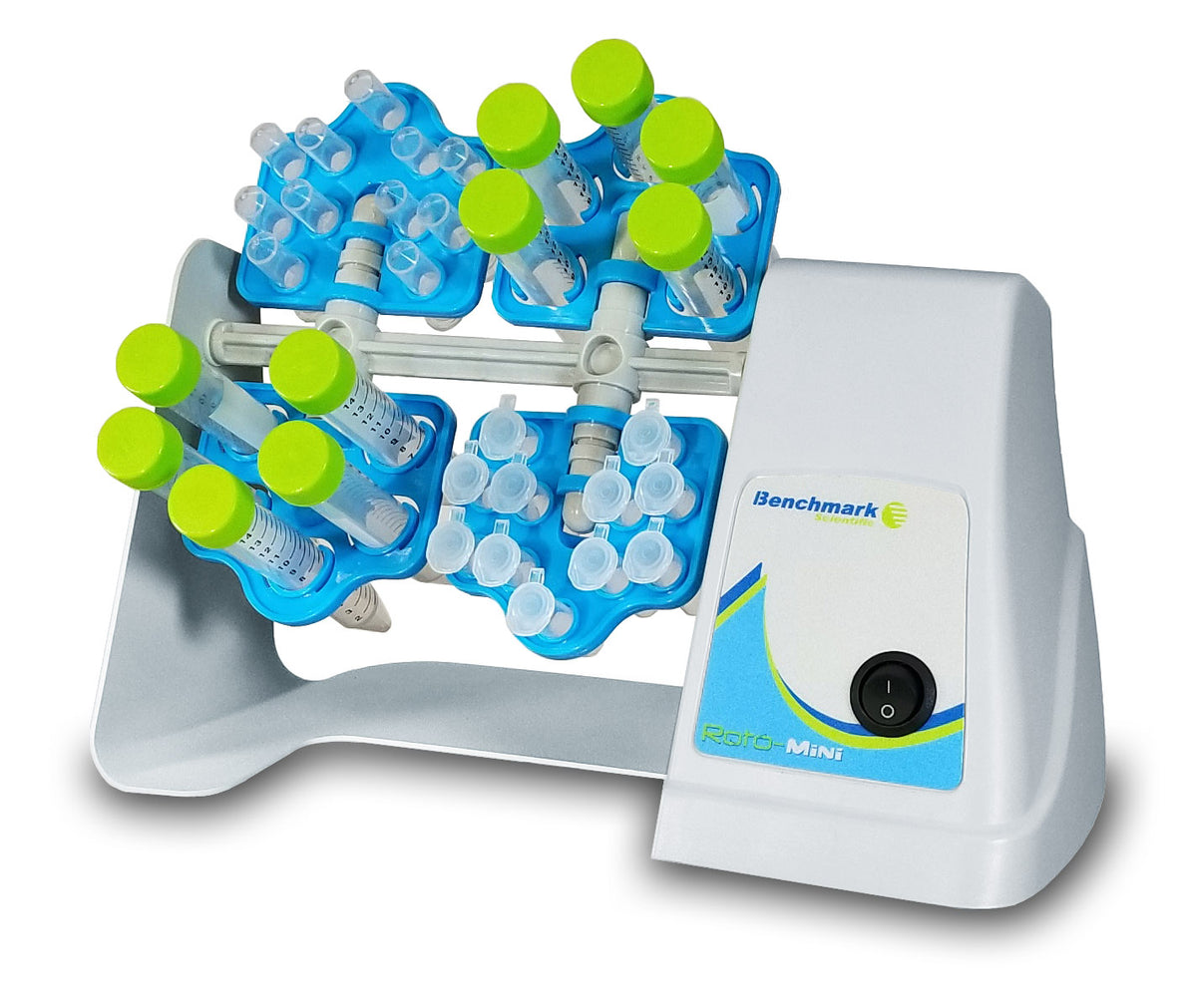

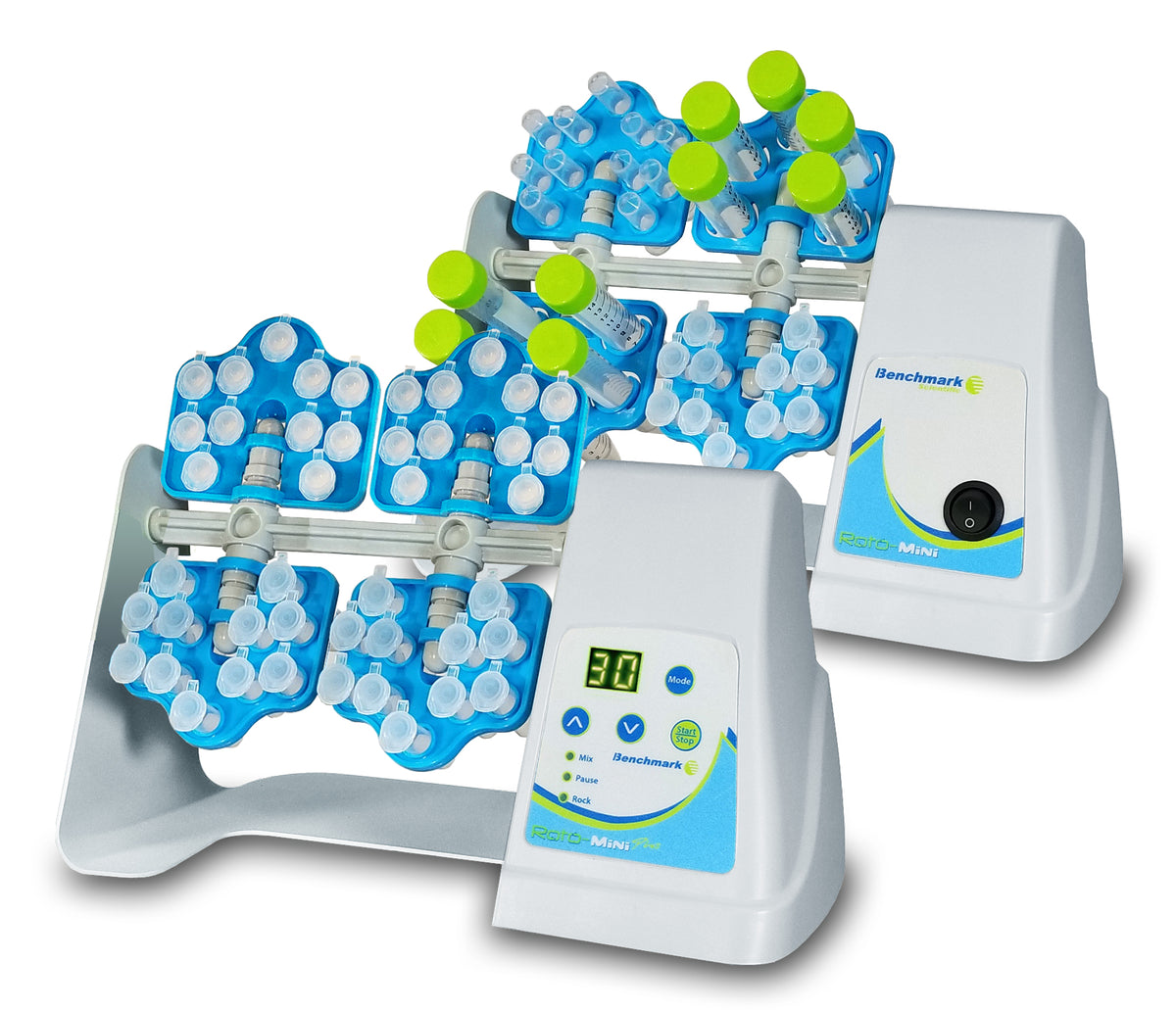

The Roto-Mini is a fixed-speed tube rotator running at 24 rpm for resuspension, protein binding, nucleic acid purification and hybridization. Interchangeable holders take tubes from 0.5 to 50 mL. Rotation can be set anywhere from vertical end-over-end to horizontal rolling. Holders are included in pairs for 1.5/0.2 mL, 5–7 mL, 10–15 mL and 50 mL tubes.
Key features
- Fixed 24 rpm rotation
- Motion adjusts from end-over-end to horizontal rolling
- Interchangeable holders for tubes from 0.5 to 50 mL
- Includes pairs of holders: 11 × 1.5/0.2, 5 × 5–7, 5 × 10–15, 6 × 50 mL
- 100–240V, 0.5A; 3 lb
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | R2020 / R2020-E |
| Speed | 24 rpm (fixed) |
| Motion | Adjustable from vertical (end-over-end) to horizontal (rolling) |
| Tube Sizes | 0.5–50 mL |
| Included Tube Holders | 11 × 1.5/0.2 mL; 5 × 10–15 mL; 5 × 5–7 mL; 6 × 50 mL (2 of each) |
| Weight | 3 lb (1.4 kg) |
| Electrical | 100–240 V, 50–60 Hz; 0.5 A |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| R2020 | 100–240V, US plug |
| R2020-E | 100–240V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| R2020-150 … | Benchmark Scientific Roto-Mini Tube Holder R2020 Series |
| R2020-RP | Benchmark Scientific Mini Rocking Platform with Rubber Mat R2020-RP |
