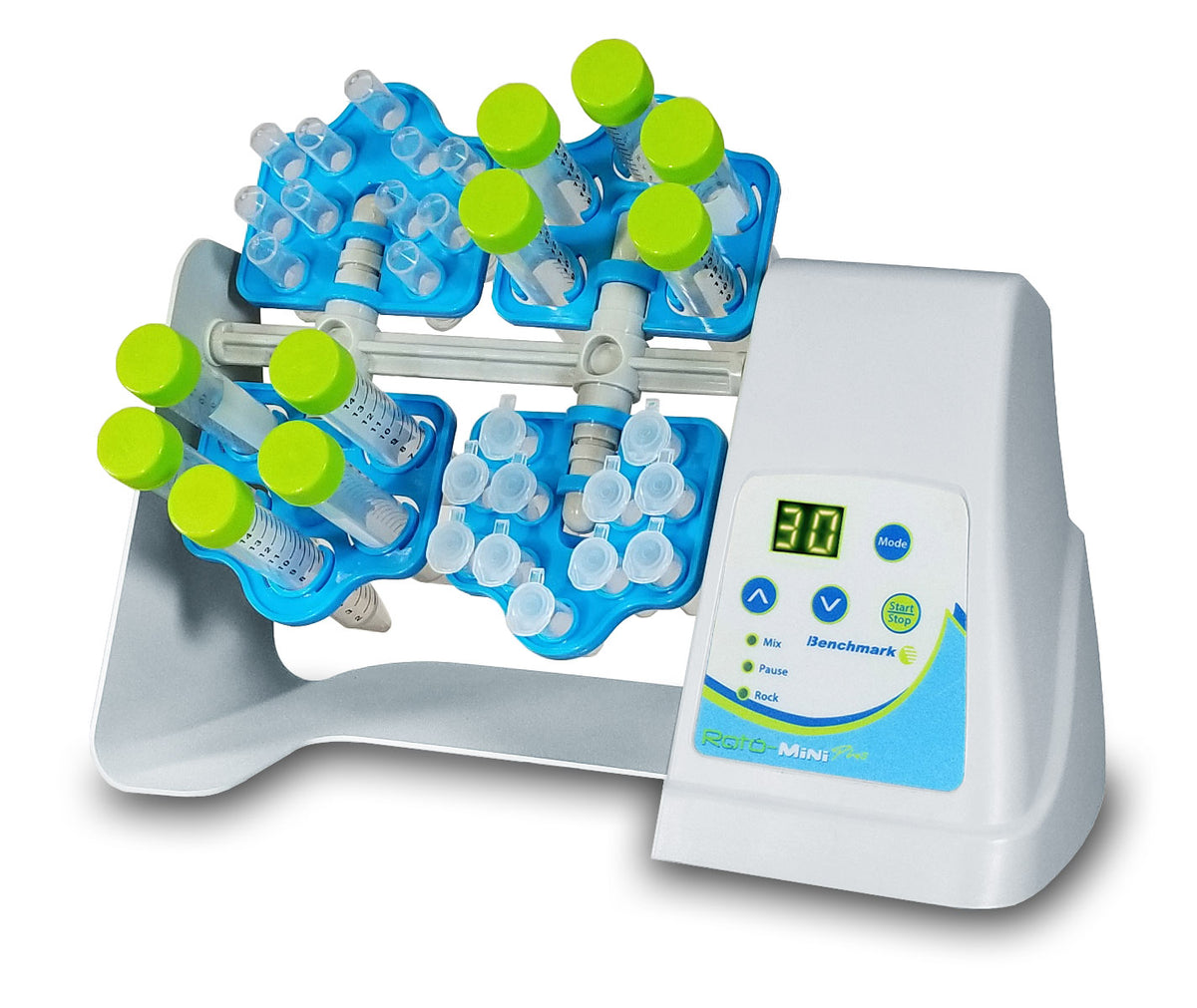

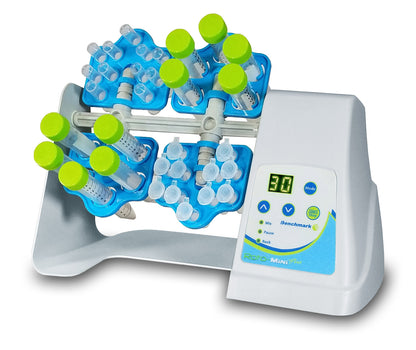

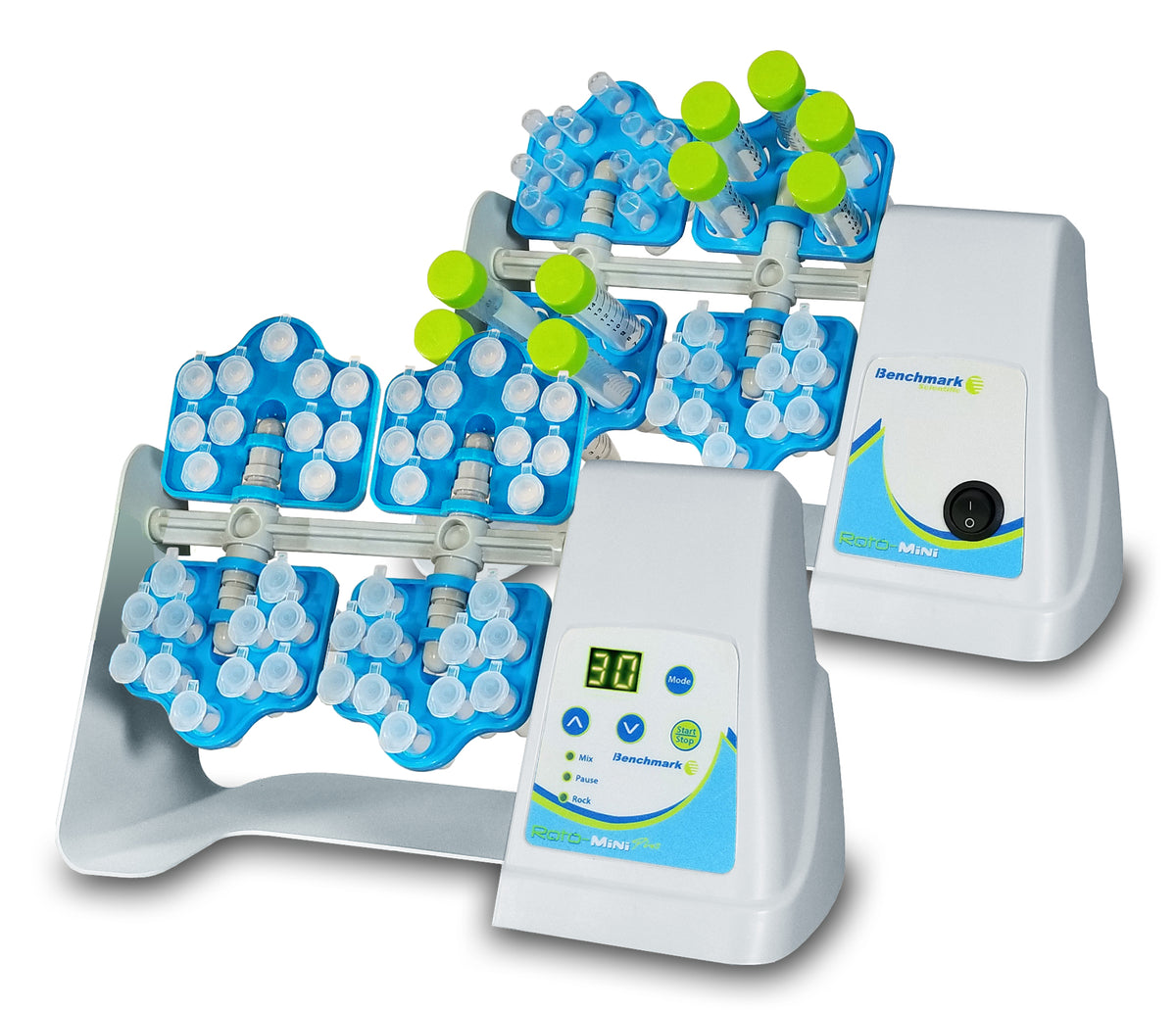

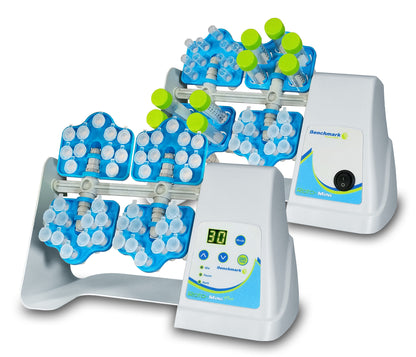

Roto-Mini Plus is the variable speed version of the Roto-Mini, adjustable from 5 to 70 rpm. Beyond rotation it offers three modes: Mix adds oscillation, Pause inserts intermittent stops, and Rock tilts back and forth like a see-saw. Interchangeable holders cover tubes from 0.5 to 50 mL, with motion set end-over-end or rolling. Plus models also offer a 4.5 × 3 in. rocking platform and a 96 × 0.2 mL holder for PCR tubes, strips and plates.
Key features
- Variable speed 5–70 rpm
- Mix (oscillating), Pause and Rock modes
- Motion adjusts from end-over-end to horizontal rolling
- Tube holders in pairs for 1.5/0.2 mL, 5–7 mL, 10–15 mL and 50 mL
- 4.5 × 3 in. rocking platform and 96 × 0.2 mL PCR holder available
- Universal 100–240V, 0.5A
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | R2024 / R2024-E |
| Speed Range | 5–70 rpm (variable) |
| Mixing Modes | Mix (oscillating), Pause, Rock |
| Motion | Adjustable from vertical (end-over-end) to horizontal (rolling) |
| Tube Sizes | 0.5–50 mL |
| Included Tube Holders | 11 × 1.5/0.2 mL; 5 × 10–15 mL; 5 × 5–7 mL; 6 × 50 mL (2 of each) |
| Weight | 3 lb (1.4 kg) |
| Electrical | 100–240 V, 50–60 Hz; 0.5 A |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| R2024 | 100–240V, US plug |
| R2024-E | 100–240V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| R2020-150 … | Benchmark Scientific Roto-Mini Tube Holder R2020 Series |
| R2020-RP | Benchmark Scientific Mini Rocking Platform with Rubber Mat R2020-RP |
