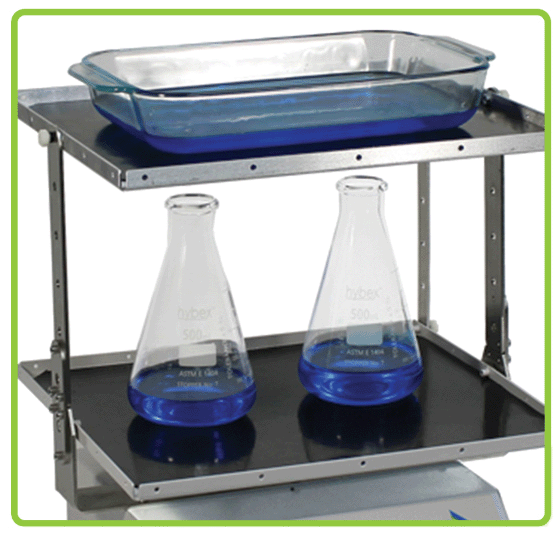

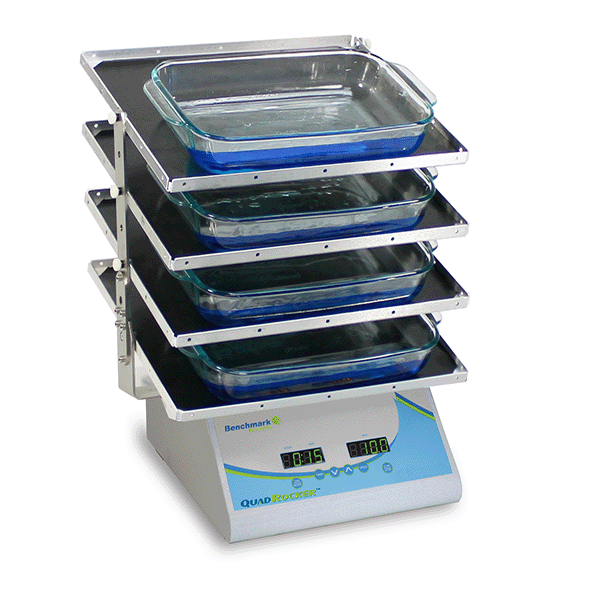

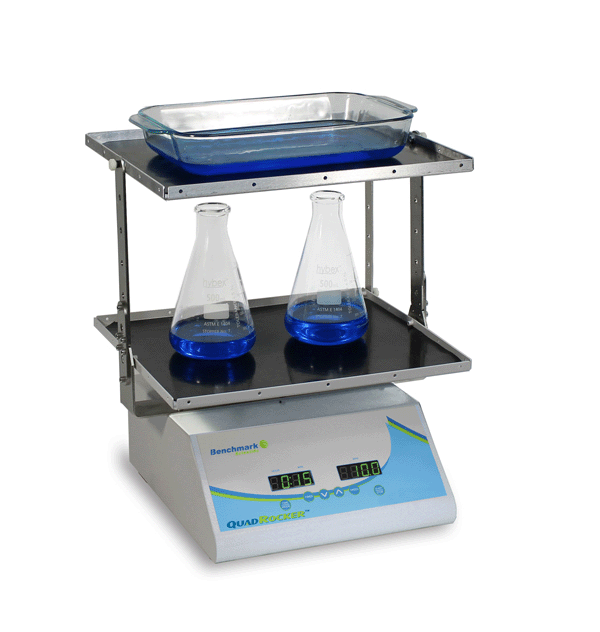

The QuadRocker stacks a base platform and three additional tiers on one drive, giving more than 750 sq. in. of rocking surface. All four 16 × 12 in platforms are included with non-slip rubber mats. Removing tiers opens up to 8¼ in (21 cm) of clearance for taller vessels. Digital controls set speed from 5 to 80 rpm and run time, and tilt is user adjustable from 6° to ±22°.
Key features
- Four 16 × 12 in platforms with non-slip rubber mats included
- Over 750 sq. in. of total rocking surface
- Up to 8¼ in (21 cm) clearance with tiers removed
- Digital speed control 5–80 rpm with built-in timer
- Tilt adjustable from 6° to ±22°; 12 lb (5.45 kg) load capacity
- Rated for 0°C to 65°C ambient for cold room and incubator use
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | BR5404 / BR5404-E |
| Speed Range | 5–80 rpm (variable) |
| Tilt Angle | 6° to ±22° (variable) |
| Platforms | 4 included (base plus 3 stacking), 16 × 12 in (40.5 × 30 cm) each |
| Max Clearance | 8¼ in (21 cm) |
| Load Capacity | 12 lb (5.45 kg) |
| Operating Temperature | 0–65°C |
| Weight | 20 lb (9 kg) |
| Electrical | 115 V or 230 V, 50–60 Hz; 50 W |
Ordering information
| Catalog number | Power |
|---|---|
| BR5404 | 115V, US plug |
| BR5404-E | 230V, European plug |
Questions about the QuadRocker Tiered Rocker BR5404
What speed range and motion does the QuadRocker Tiered Rocker BR5404 have?
The QuadRocker Tiered Rocker BR5404 runs at 5–80 rpm (variable) with a 6° to ±22° (variable) tilt.
Is the QuadRocker Tiered Rocker BR5404 available with a European plug?
Yes. BR5404-E is the European-plug version of BR5404: BR5404 is 115V with a US plug and BR5404-E is 230V with a European plug.
