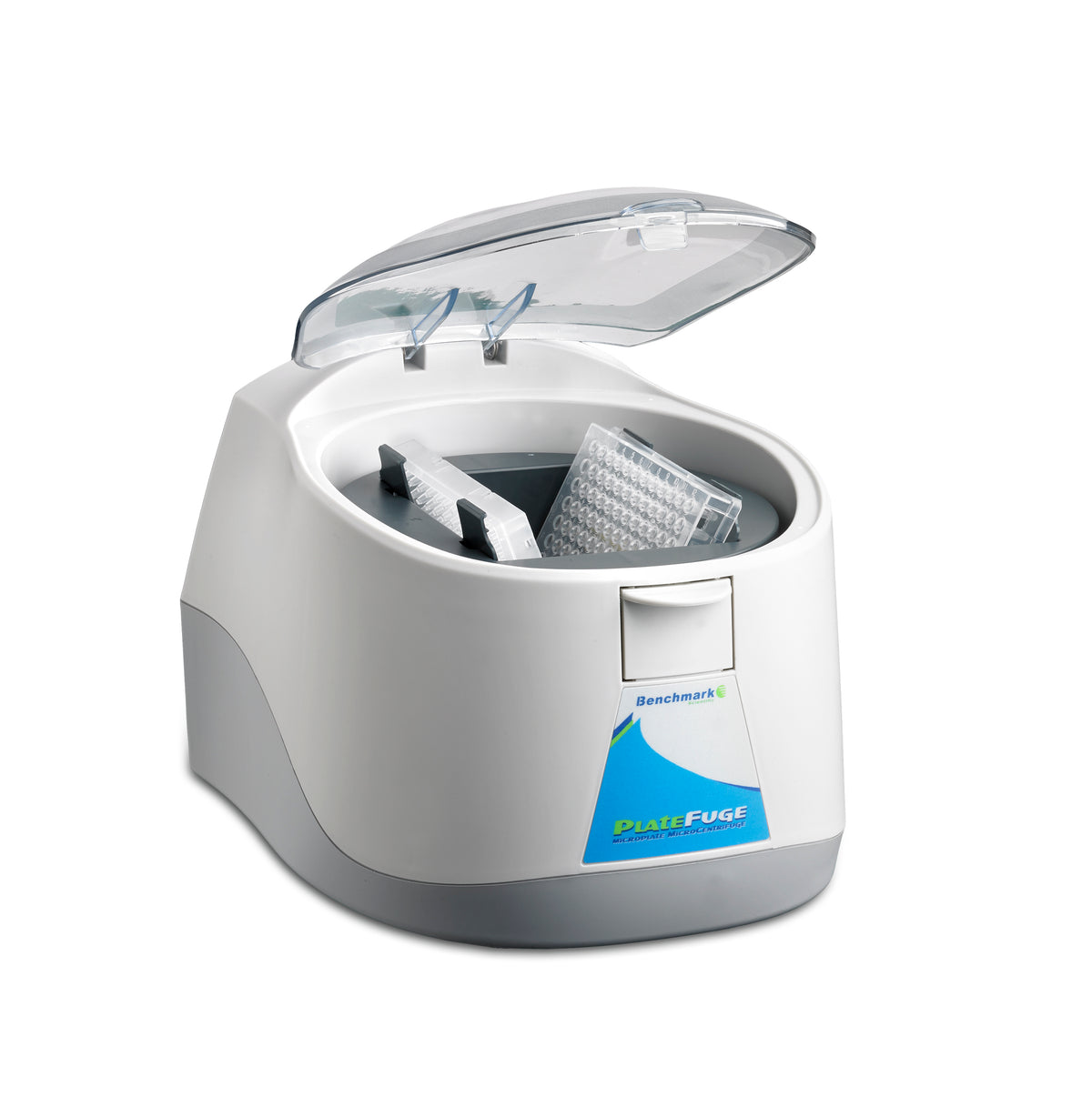

The PlateFuge is a mini-sized centrifuge with a swing-out rotor for spinning down PCR and microtiter plates before amplification, so reactants collect at the bottom of each well. Two plate carriers rest at 75°, letting plates load without sealing tape or caps; as the rotor accelerates to 2,550 rpm (600 × g) they swing level. Most samples are spun down in under 20 seconds, and opening the lid triggers an electric brake that stops the rotor in 4 seconds. It accepts skirted, semi-skirted and non-skirted PCR plates and most microtiter plates.
Key features

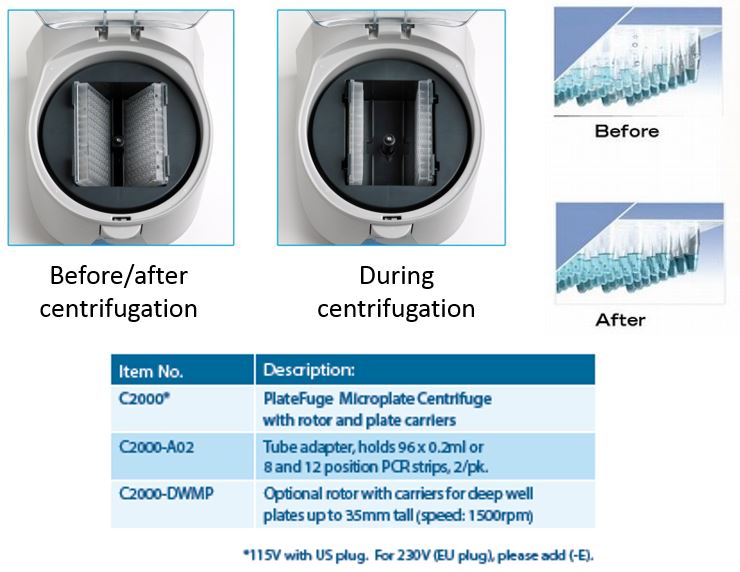

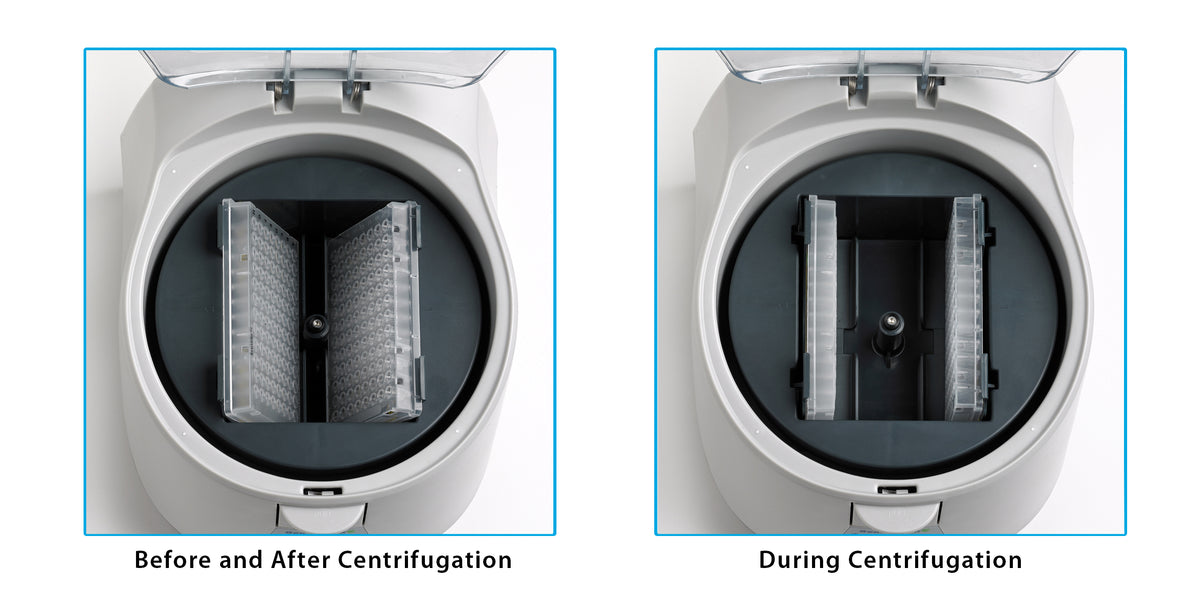

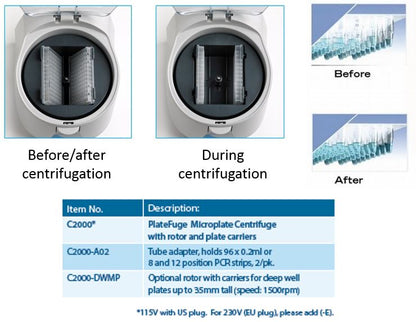

- Swing-out rotor with 2 plate carriers; plates load at 75°
- 2,550 rpm / 600 × g; most spin-downs finish in under 20 seconds
- Electric brake stops the rotor 4 seconds after the lid opens
- Fits skirted, semi-skirted and non-skirted PCR plates
- 9.2 × 10.2 × 7.75 in footprint, 9 lb; 250 W
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | C2000 / C2000-E |
| Speed | 2,550 rpm |
| Max RCF | 600 × g |
| Capacity | 2 microplates (PCR or microtiter) |
| Rotor | Swing-out, with 2 plate carriers |
| Deceleration | 4 seconds |
| Dimensions | 9.2 × 10.2 × 7.75 in (23 × 26 × 19.7 cm) |
| Weight | 9 lb (4.1 kg) |
| Electrical | 115 V, US plug (C2000); 230 V, European plug (C2000-E); 50–60 Hz; 250 W |
| Warranty | 2 Years |
Ordering information
| Catalog number | Power |
|---|---|
| C2000 | 115V, US plug |
| C2000-E | 230V, European plug |
