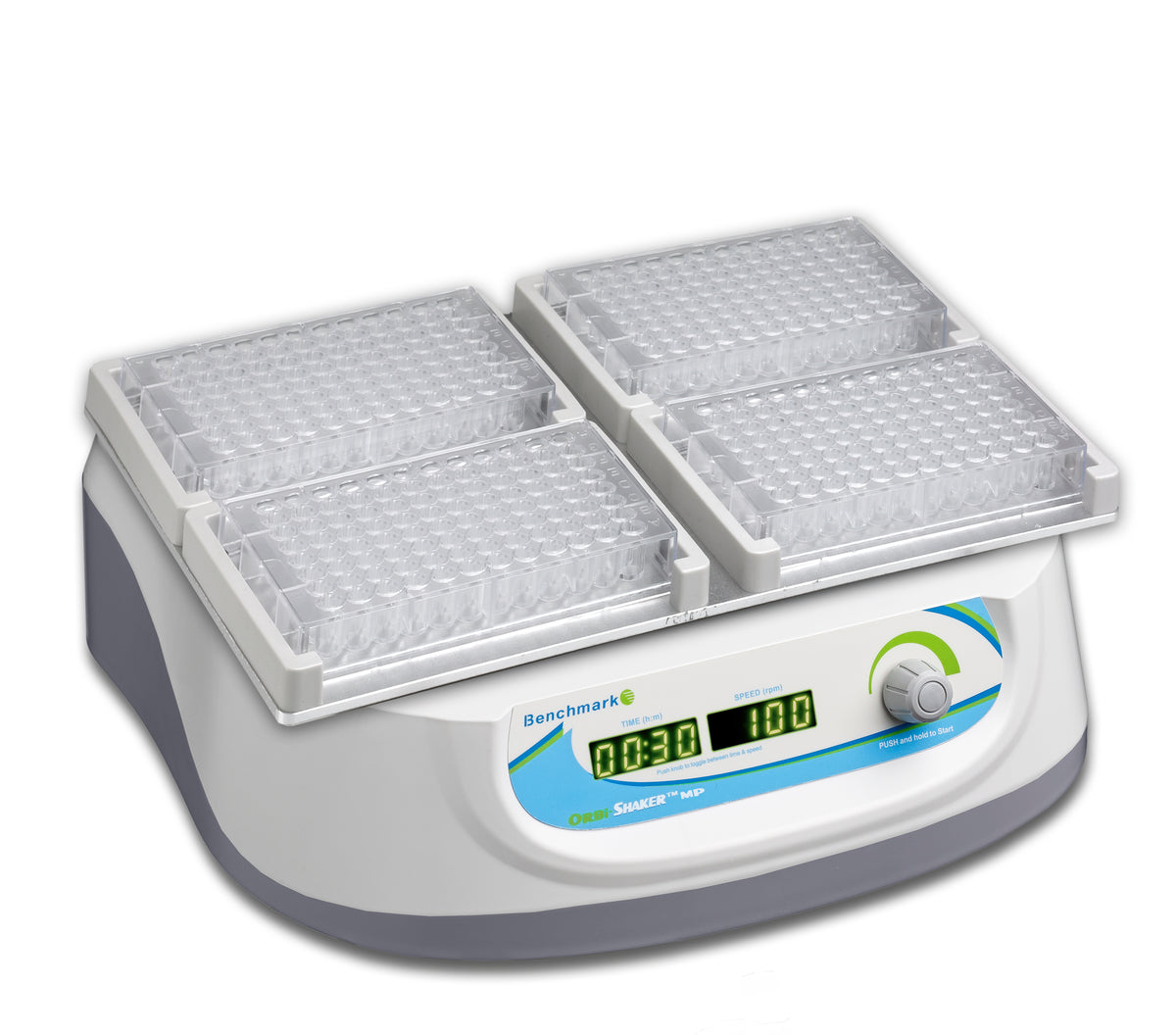

Orbi-Shaker MP is a microplate shaker with a 3 mm orbit sized for thorough mixing of microplates and PCR plates. The included platform takes up to four standard or deep-well plates and secures them without springs, clamps or tools. Digital speed control runs from 200 to 1,500 rpm in 10 rpm steps, with a timer from 1 min to 99 hr or continuous. It is rated for 4°C to 65°C ambient and accepts optional microtube adapters.
Key features
- Platform for up to four standard or deep-well plates
- 3 mm orbit for microplates and PCR plates
- 200–1,500 rpm in 10 rpm increments
- Cold room and incubator safe, 4°C to 65°C
- Universal 100–240V input; optional microtube adapters
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | BT1502 / BT1502-E |
| Speed Range | 200–1,500 rpm |
| Speed Increment | 10 rpm |
| Orbit | 3 mm |
| Timer | 1 min–99 hr or continuous |
| Capacity | Up to 4 microplates (standard or deep well) |
| Ambient Operating Temperature | 4–65 °C |
| Dimensions | 13.1 × 11.7 × 4.7 in (33.3 × 29.8 × 12 cm) |
| Weight | 12 lb (5.5 kg) |
| Electrical | 100–240 V, 50–60 Hz |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| BT1502 | 100–240V, US plug |
| BT1502-E | 100–240V, European plug |
