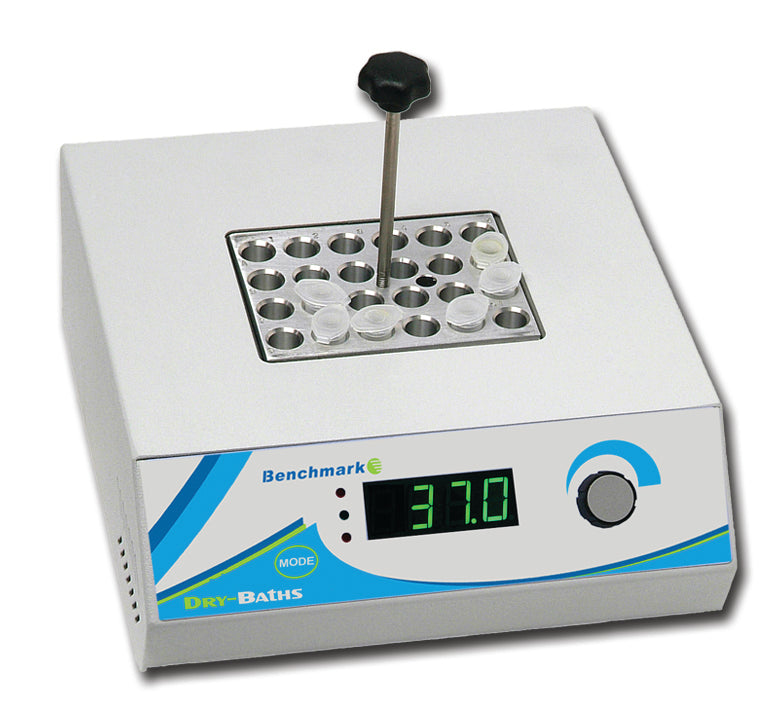

BSH1001 is the single-position Benchmark digital dry bath, a compact 7.8 × 9 × 3.2 in unit that takes one interchangeable aluminum block. Temperature is keyed in on the touchpad from ambient +5 to 150°C in 0.1°C steps and held within ±0.2°C. Machined blocks are offered for 0.5, 1.5, 2.0, 15 and 50 mL tubes, plus plates, and are ordered separately. A block lifter with an insulated handle is included, and the user can recalibrate the controller on site.
Key features
- One block position; blocks sold separately
- Ambient +5 to 150°C, held within ±0.2°C
- 1–999 minute timer alerts at end of interval
- Built-in user recalibration routine
- Insulated block lifter included for swapping hot blocks
- Footprint 7.8 × 9 × 3.2 in
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | BSH1001 / BSH1001-E |
| Temperature Range | Ambient +5°C – 150°C |
| Temperature Accuracy | ±0.2°C |
| Temperature Uniformity | ±0.2°C |
| Temperature Increments | 0.1°C |
| Timer | 1–999 min (alert only; does not shut off heater) |
| Block Positions | 1 |
| Blocks | Not included (sold separately) |
| Included | Block lifter |
| Dimensions | 7.8 × 9 × 3.2 in (20 × 23 × 8 cm) |
| Electrical | 115 V or 230 V |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| BSH1001 | 115V, US plug |
| BSH1001-E | 230V, European plug |
