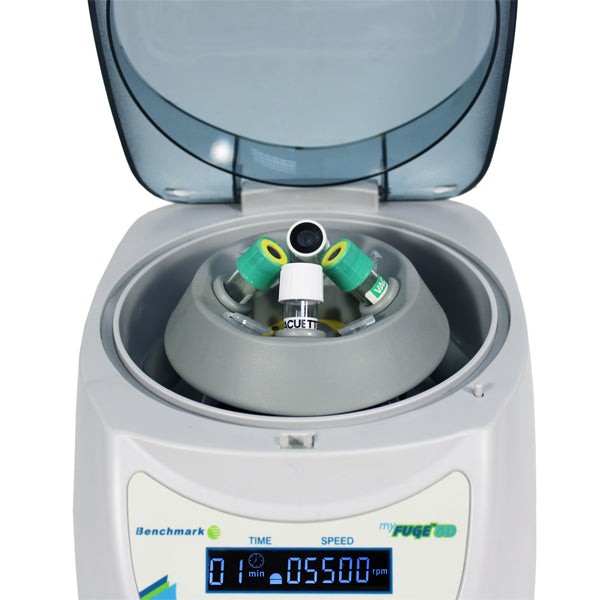

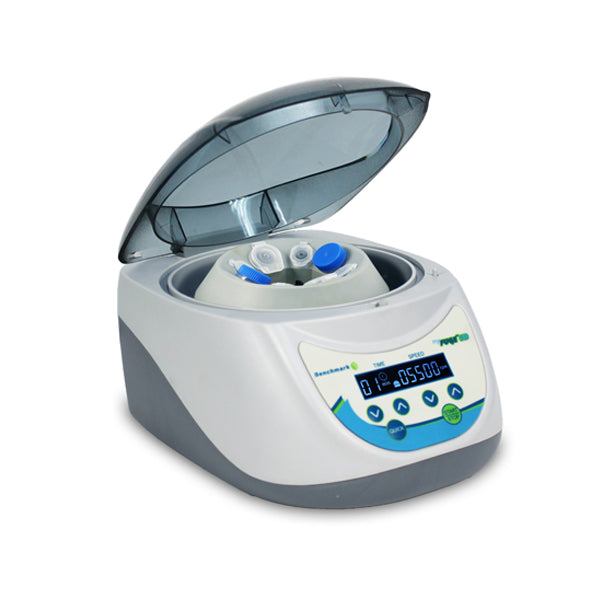

The myFuge 5D is a digital mini centrifuge with a combination rotor: four positions for 5 mL snap-cap, screw-cap or blood collection tubes and four for standard 1.5/2.0 mL microtubes. Adapters for 12 × 75 mm blood tubes are included, and optional adapters fit 2 mL cryotubes, 0.2 mL PCR tubes and 0.5 mL microtubes. Speed is set digitally up to 5,500 rpm (1,690 × g) in rpm or rcf, the timer reaches 99 minutes, and a lid interlock halts the run if the lid is opened. It measures 7.6 × 9 × 4.72 in.
Key features
- Combination rotor: 4 × 5 mL plus 4 × 1.5/2.0 mL
- Fits 1.8–5 mL blood tubes; 12 × 75 mm adapters included
- Optional adapters for 2 mL cryo, 0.5 mL and 0.2 mL tubes

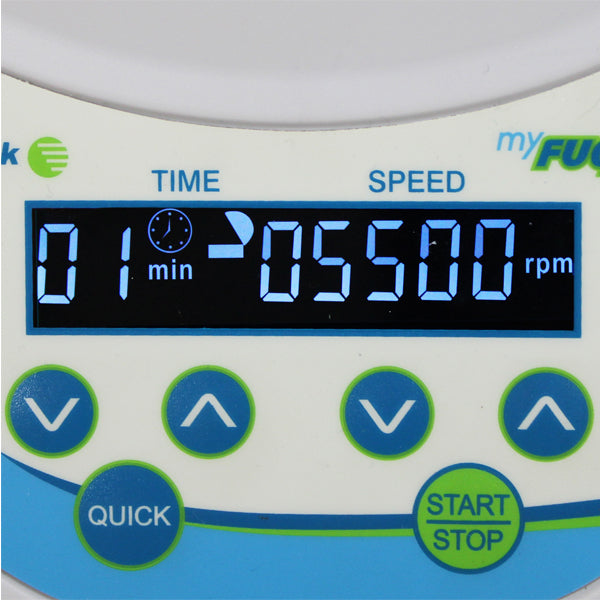

- Digital speed to 5,500 rpm / 1,690 × g; rpm or rcf display
- Timer to 99 min; lid interlock; 100–240V, 45 W
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | C2205 / C2205-E |
| Max Speed | 5,500 rpm |
| Max RCF | 1,690 × g |
| Capacity | 4 × 5 mL + 4 × 1.5/2.0 mL |
| Blood Tubes | 1.8–5 mL (12 × 75 mm adapters included) |
| Optional Adapters | 2 mL cryotubes, 0.2 mL PCR tubes, 0.5 mL microtubes |
| Timer | Up to 99 min |
| Speed Display | rpm or rcf |
| Dimensions | 7.6 × 9 × 4.72 in (19.4 × 23 × 12 cm) |
| Weight | 4.4 lb (2 kg) |
| Electrical | 100–240 V universal, 50–60 Hz, 45 W; US plug (C2205) or European 2-prong plug (C2205-E) |
| Warranty | 2 Years |
Ordering information
| Catalog number | Power |
|---|---|
| C2205 | 100–240V, US plug |
| C2205-E | 100–240V, European plug |
