Heating blocks for the myBlock Mini dry bath. Microtube formats include 40 × 0.2 mL (or 5 PCR strips), 24 × 0.5 mL and 15 × 1.5 mL, with a separate 15 × 1.5 mL block for units with a heated lid (BSH100-15HL). Larger formats take 6 × 5 mL, 4 × 15 mL or 2 × 50 mL centrifuge tubes, 15 HPLC or cryovials, 15 × 12–13 mm tubes, or 8 cuvettes of 12.5 × 12.5 × 32 mm. There is also a solid 1.25 in (32 mm) block.
Key features
- 40 × 0.2 mL tubes or 5 PCR strips (BSH100-02)
- 15 × 1.5 mL: standard, conical 1.5/2.0 mL, or heated-lid version
- 6 × 5 mL, 4 × 15 mL or 2 × 50 mL centrifuge tubes
- 8 cuvettes, 12.5 × 12.5 × 32 mm (BSH100-CV)
- Solid block, 1.25 in / 32 mm high (BSH100-01)
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Tube Size | 0.2 mL to 50 mL |
Ordering information
| Catalog number | Block |
|---|---|
| BSH100-01 | Solid, 1.25in/32 mm in height |

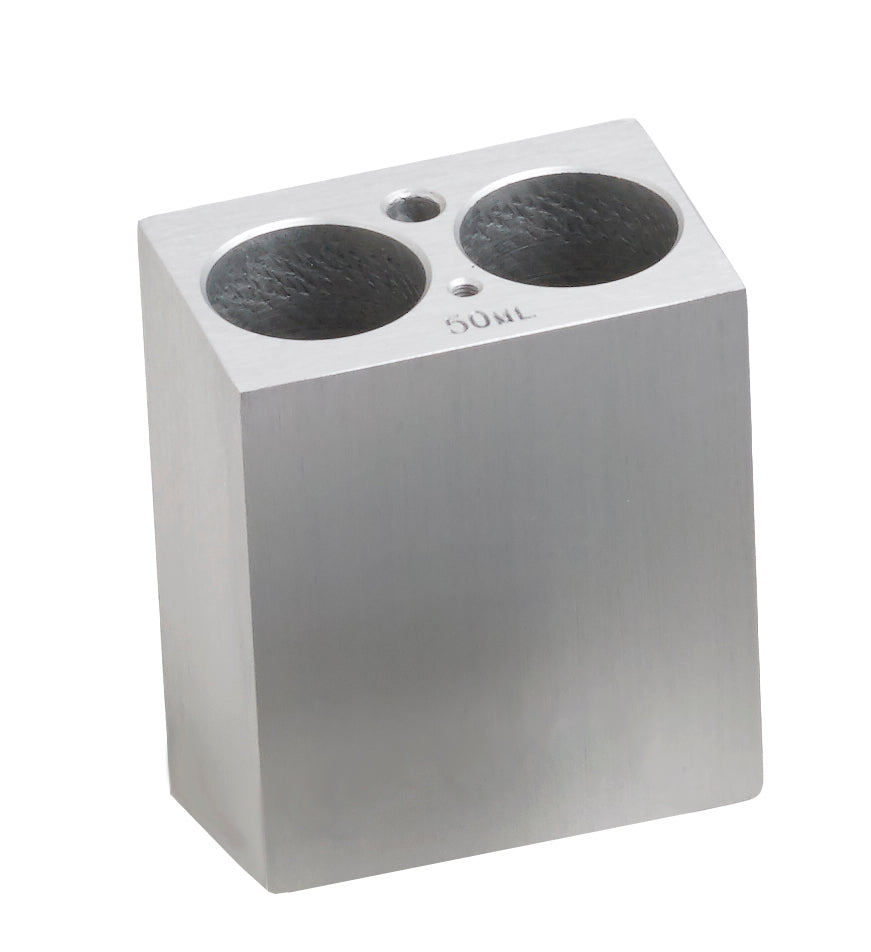

| BSH100-500 | 2 × 50 mL centrifuge tubes |

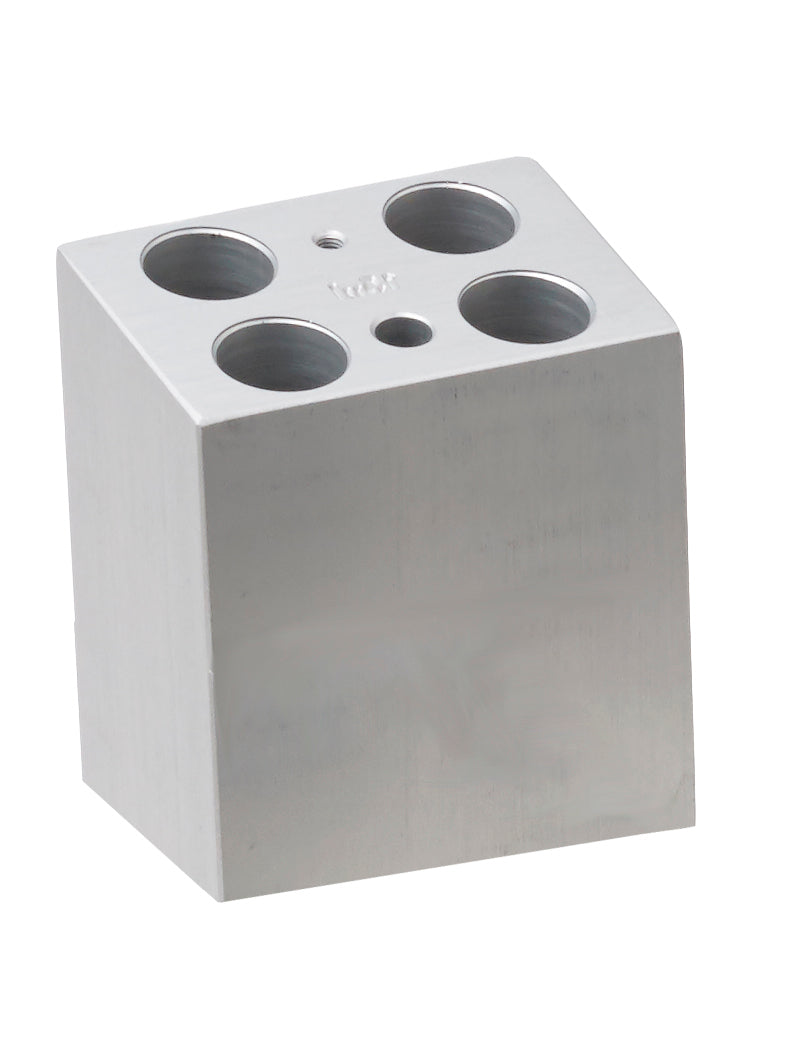

| BSH100-150 | 4 × 15 mL centrifuge tubes |

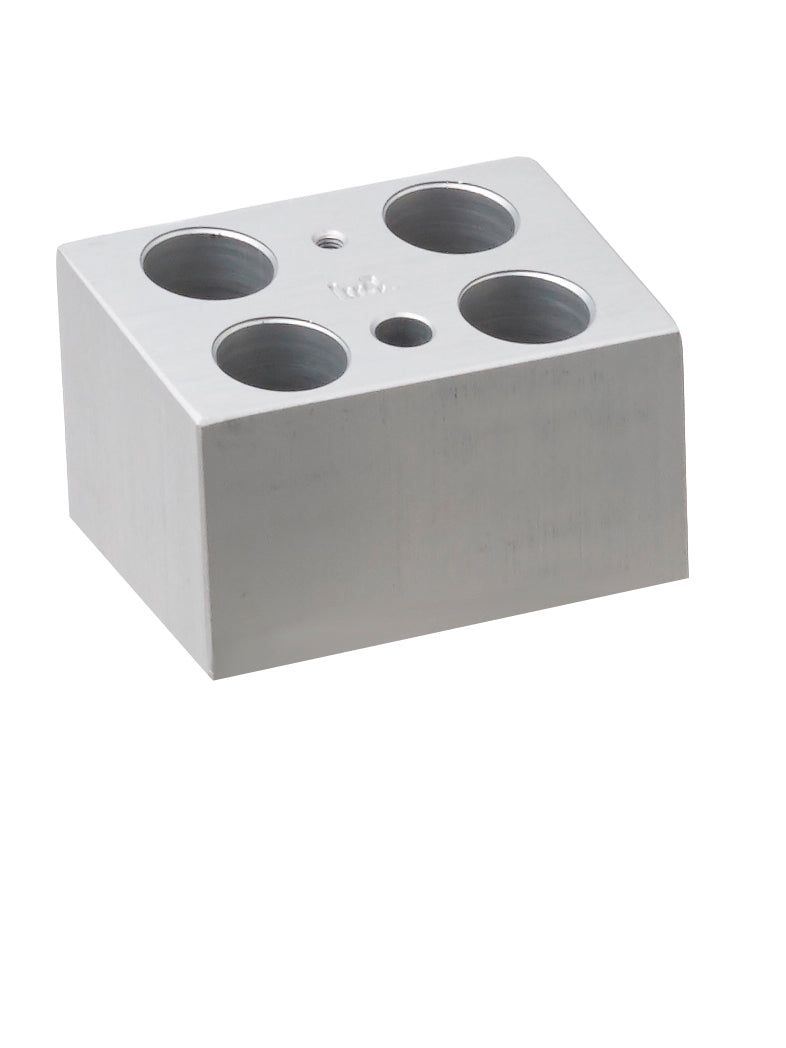

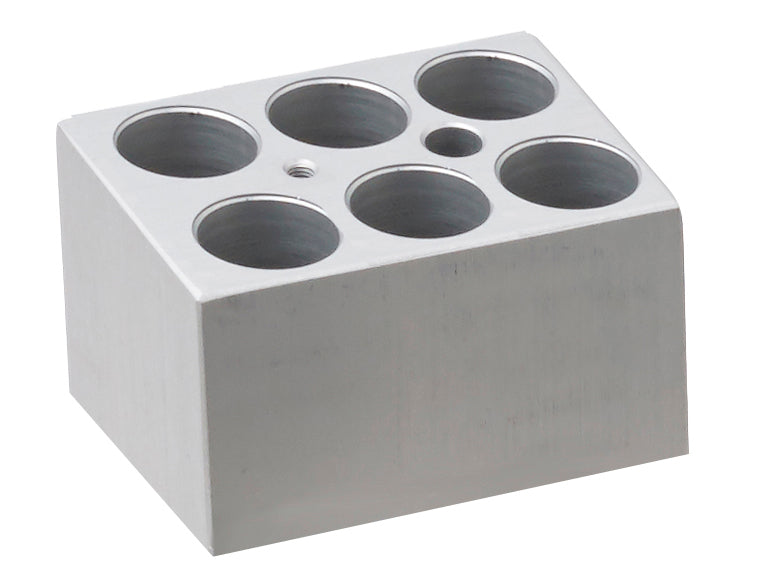

| BSH100-5MT | 6 × 5 mL centrifuge tubes (17 mm diameter) |
| BSH100-CV | For 8 cuvettes (12.5 × 12.5 × 32 mm) |
| BSH100-15HL | 15 × 1.5 mL Centrifuge Tubes for Dry Bath with Heated Lid |
| BSH100-15 | 15 × 1.5 mL centrifuge tubes |
| BSH100-1520 | 15 × 1.5 mL or 2.0 mL centrifuge tubes (conical) |
| BSH100-1213 | 15 × 12-13 mm tubes, 60 mm tall, no lid |
| BSH100-1232 | 15 × HPLC or Cryovial tubes |
| BSH100-05 | 24 × 0.5 mL centrifuge tubes |
| BSH100-02 | 40 × 0.2 mL tubes or 5 PCR strips of 8 tubes each |
