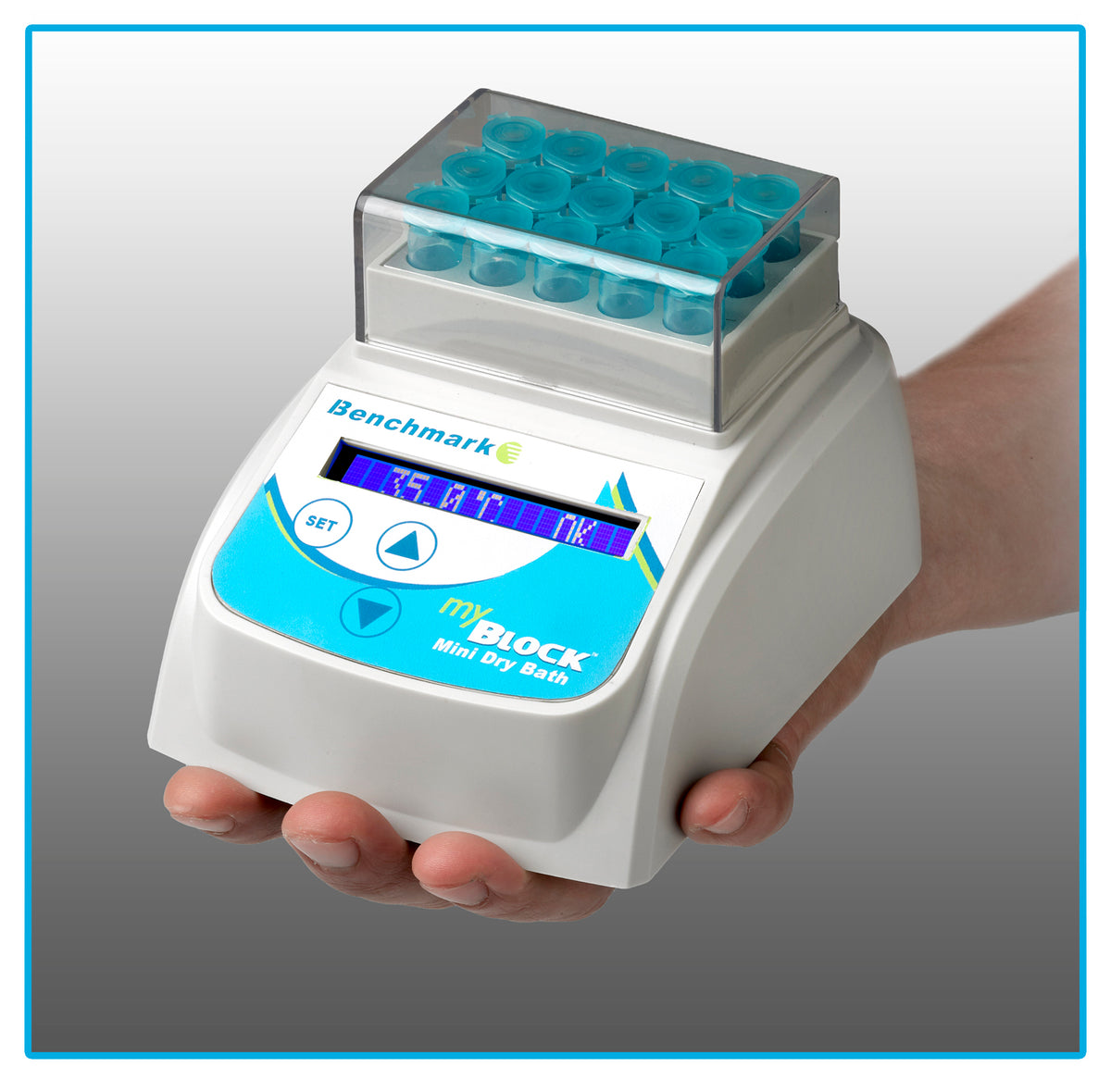

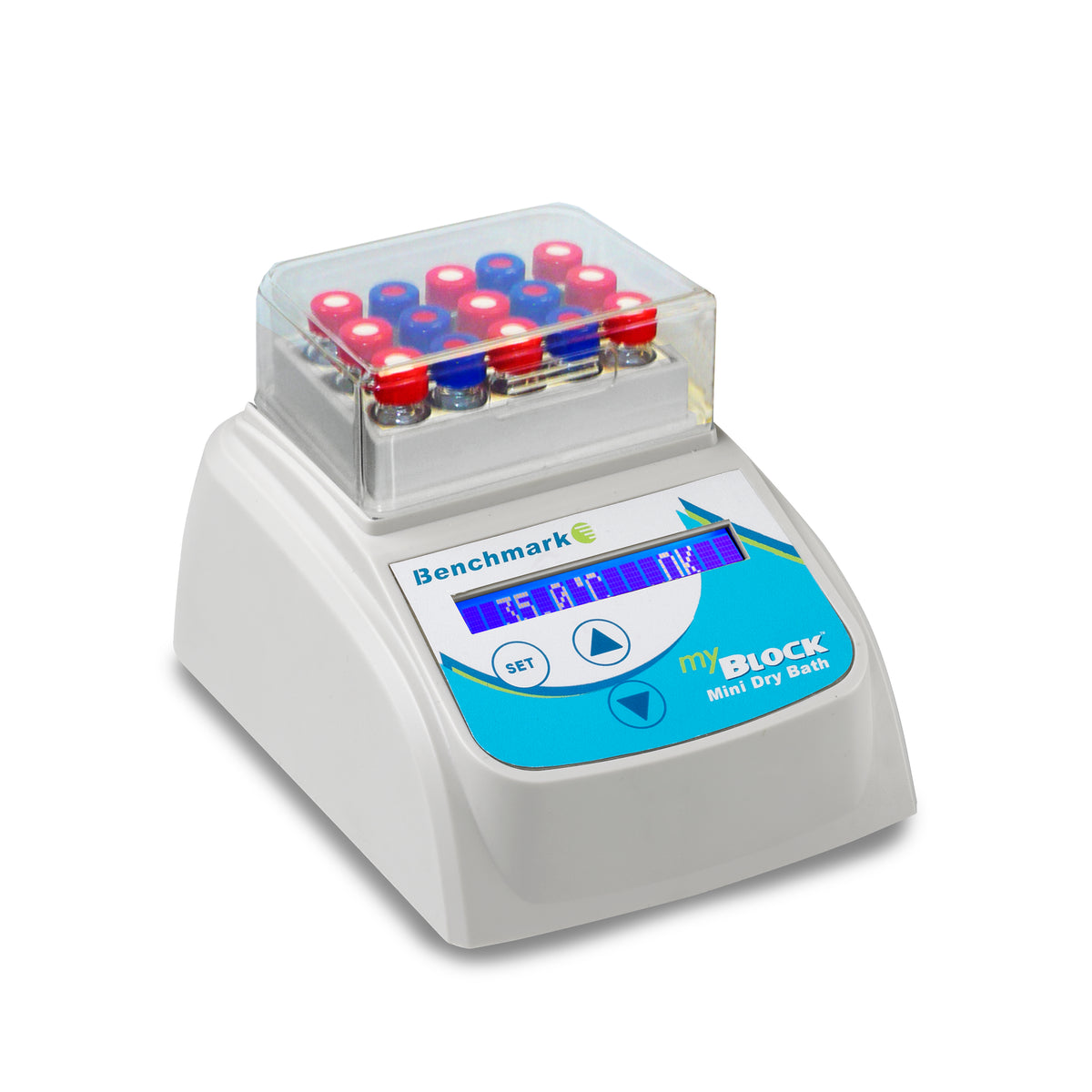

The myBlock Mini BSH200 is a heat-only personal dry bath that takes one exchangeable block for tubes from 0.2 mL to 50 mL. It controls from 5°C above room temperature to 100°C in 0.1°C steps, with ±0.5°C accuracy and uniformity, and ramps from 20°C to 100°C in under 20 minutes. The block well is 1.85 × 2.8 × 1.25 in, and the housing is 4 × 6 × 4.5 in and 2 lb. It runs on universal 100–240V, 50 W power, and an optional 12V adapter allows field use. Blocks are sold separately.
Key features
- Heat only: ambient +5°C to 100°C in 0.1°C steps
- ±0.5°C accuracy and uniformity
- Ramps from 20°C to 100°C in under 20 minutes

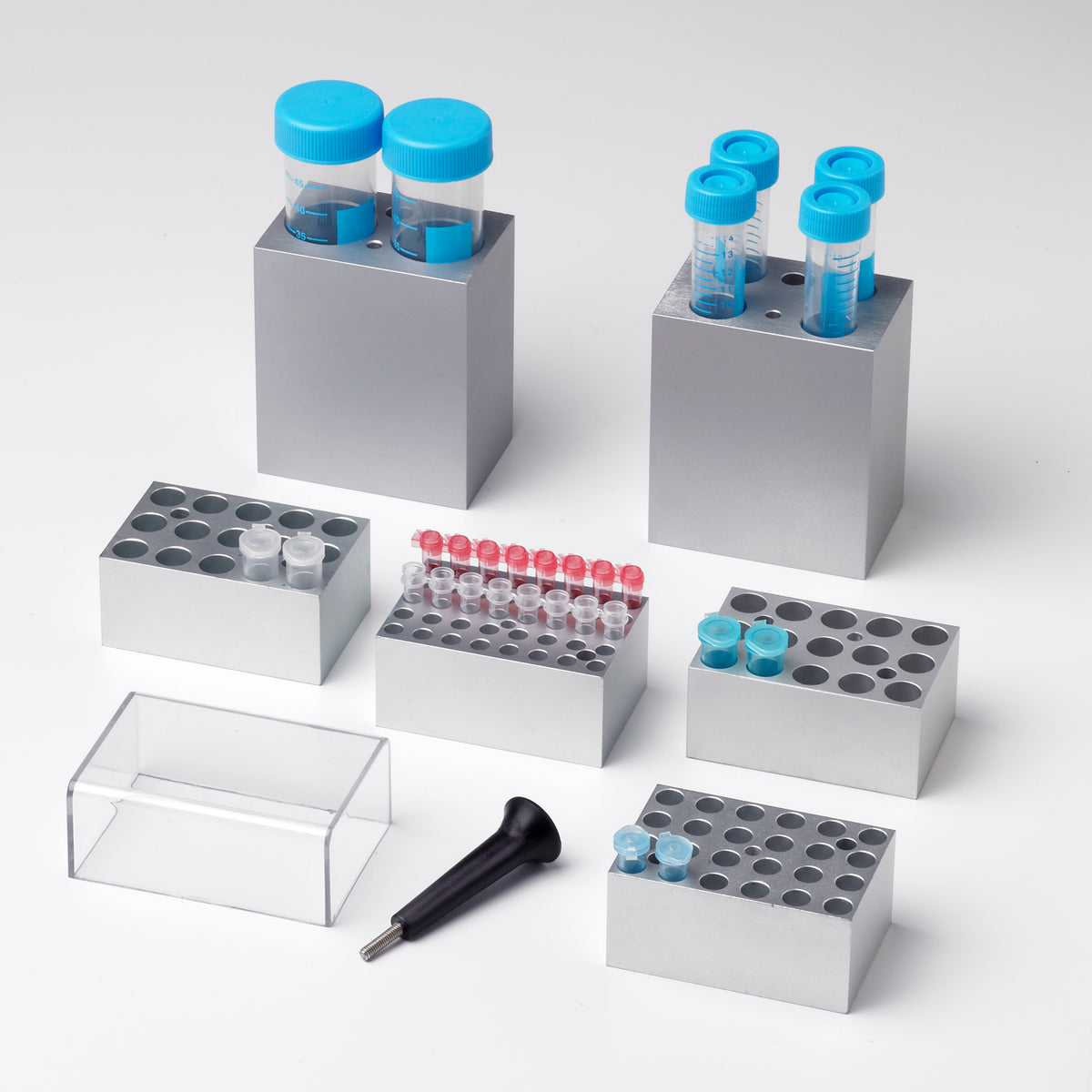

- Exchangeable blocks for 0.2–50 mL tubes, sold separately
- Optional 12V adapter for field use
- 4 × 6 × 4.5 in, 2 lb, universal 100–240V
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | BSH200 / BSH200-E |
| Temperature Range | Ambient +5°C – 100°C |
| Temperature Accuracy | ±0.5°C |
| Temperature Uniformity | ±0.5°C |
| Temperature Increments | 0.1°C |
| Heat-Up Time (20°C – 100°C) | < 20 min |
| Block Dimensions | 1.85 × 2.8 × 1.25 in (4.7 × 7.1 × 3.2 cm) |
| Tube Compatibility | 0.2–50 mL tubes (exchangeable blocks, sold separately) |
| Dimensions | 4 × 6 × 4.5 in (10.5 × 15 × 11.5 cm) |
| Weight | 2 lb (1 kg) |
| Electrical | 100–240 V, 50–60 Hz; 50 W |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| BSH200 | 100–240V, US plug |
| BSH200-E | 100–240V, European plug |
Questions about the myBlock Mini Digital Dry Bath BSH200
What temperature range and accuracy does the myBlock Mini Digital Dry Bath BSH200 have?
The myBlock Mini Digital Dry Bath BSH200 covers ambient +5°C – 100°C with ±0.5°C accuracy and ±0.5°C uniformity.
Is the myBlock Mini Digital Dry Bath BSH200 available with a European plug?
Yes. BSH200-E is the European-plug version of BSH200; both run on 100–240V, so only the plug differs.
