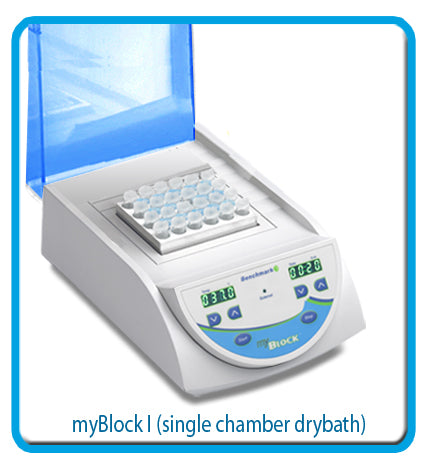

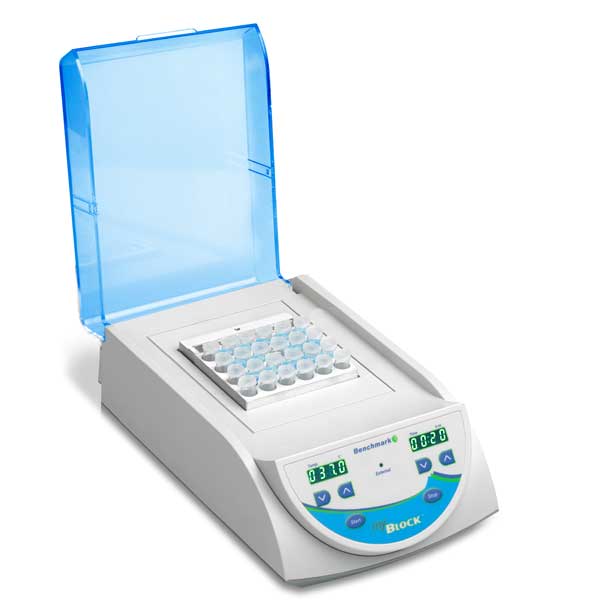

This BSH5001-1B configuration pairs the single-chamber myBlock I dry bath with one BSWCMB Quick-Flip universal block, so it is ready to run out of the box. One face of the block takes 0.5–2.0 mL microtubes; flipped over, it holds 0.2 mL tubes and PCR strips. The controller reaches 105°C from ambient +5, with 0.1°C setpoint resolution and a timer that runs from 1 minute to 48 hours or stays on continuously. The removable clear lid helps even out block temperature.
Key features
- Includes one BSWCMB Quick-Flip block for 0.2–2.0 mL tubes and PCR strips
- Single heating chamber, ambient +5 to 105°C
- Block uniformity of ±0.3°C; 0.1°C setpoint steps
- Timed runs of 1 min to 48 hours or continuous operation
- Optional external probe monitors actual sample temperature
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | BSH5001-1B / BSH5001-1B-E |
| Temperature Range | Ambient +5°C – 105°C |
| Temperature Accuracy | ±0.1°C |
| Temperature Uniformity | ±0.3°C |
| Temperature Increments | 0.1°C |
| Timer | 1 min – 48 hr, or continuous |
| Block Positions | 1 |
| Included Block | 1 Quick-Flip universal block: 0.5–2.0 mL tubes; flip side 0.2 mL tubes or PCR strips |
| Lid | Transparent, hinged and removable |
| Dimensions | 7 × 10 × 5 in (18 × 25 × 13 cm) |
| Electrical | 115 V or 230 V |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| BSH5001-1B | 115V, US plug |
| BSH5001-1B-E | 230V, European plug |
