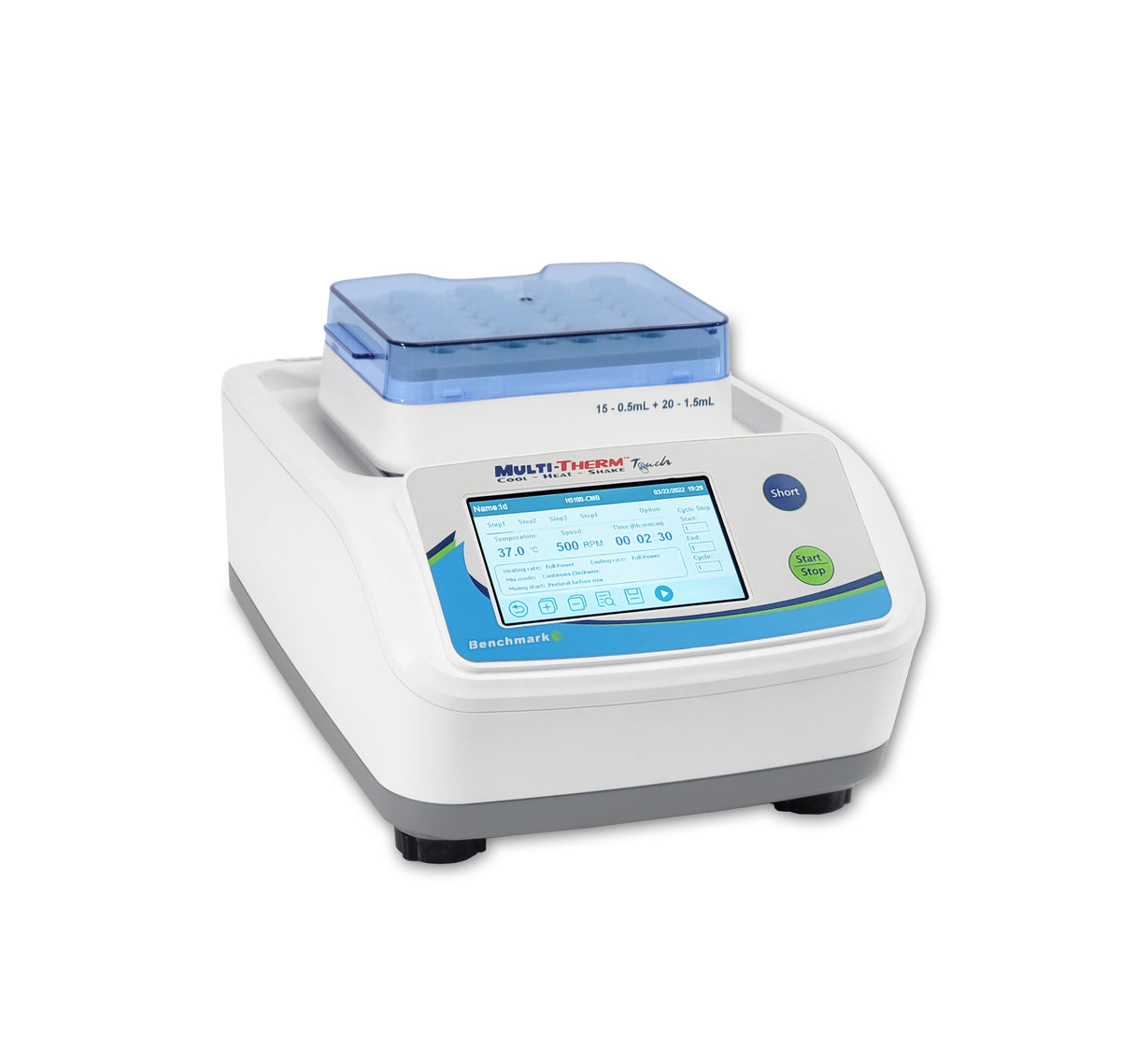

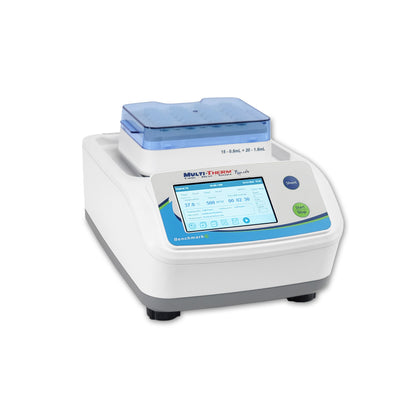

The MultiTherm Touch H5100-HCT heats and cools samples from 20°C below ambient to 105°C with ±0.5°C uniformity while mixing at 200 to 3,000 rpm (block dependent) on a 3 mm orbit. A 4.3 in color touch screen stores 50 programs of up to 5 steps each, with adjustable ramp rate, interval and directional mixing, preheat and power-failure restart. Fifteen interchangeable blocks cover 0.2 mL to 50 mL tubes and plates, and the unit recognizes each block automatically. Blocks and the optional heated lid are sold separately.
Key features
- Ambient −20°C to 105°C with ±0.5°C uniformity
- 200–3,000 rpm, clockwise or counterclockwise, on a 3 mm orbit
- 50 programs of 5 steps each, with adjustable ramp rates

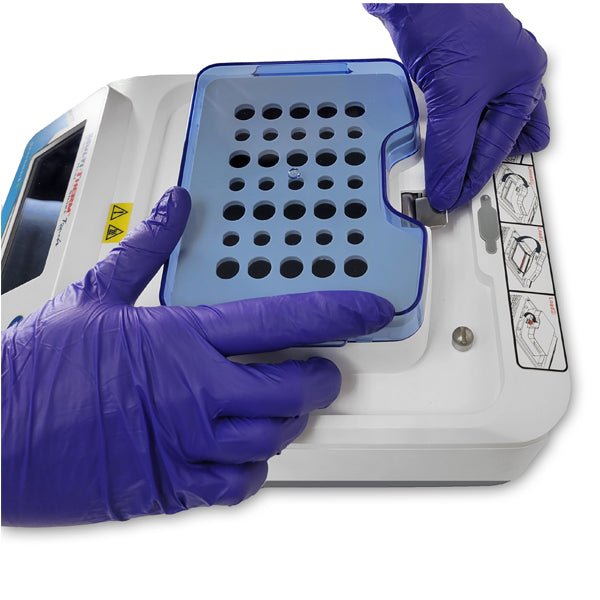

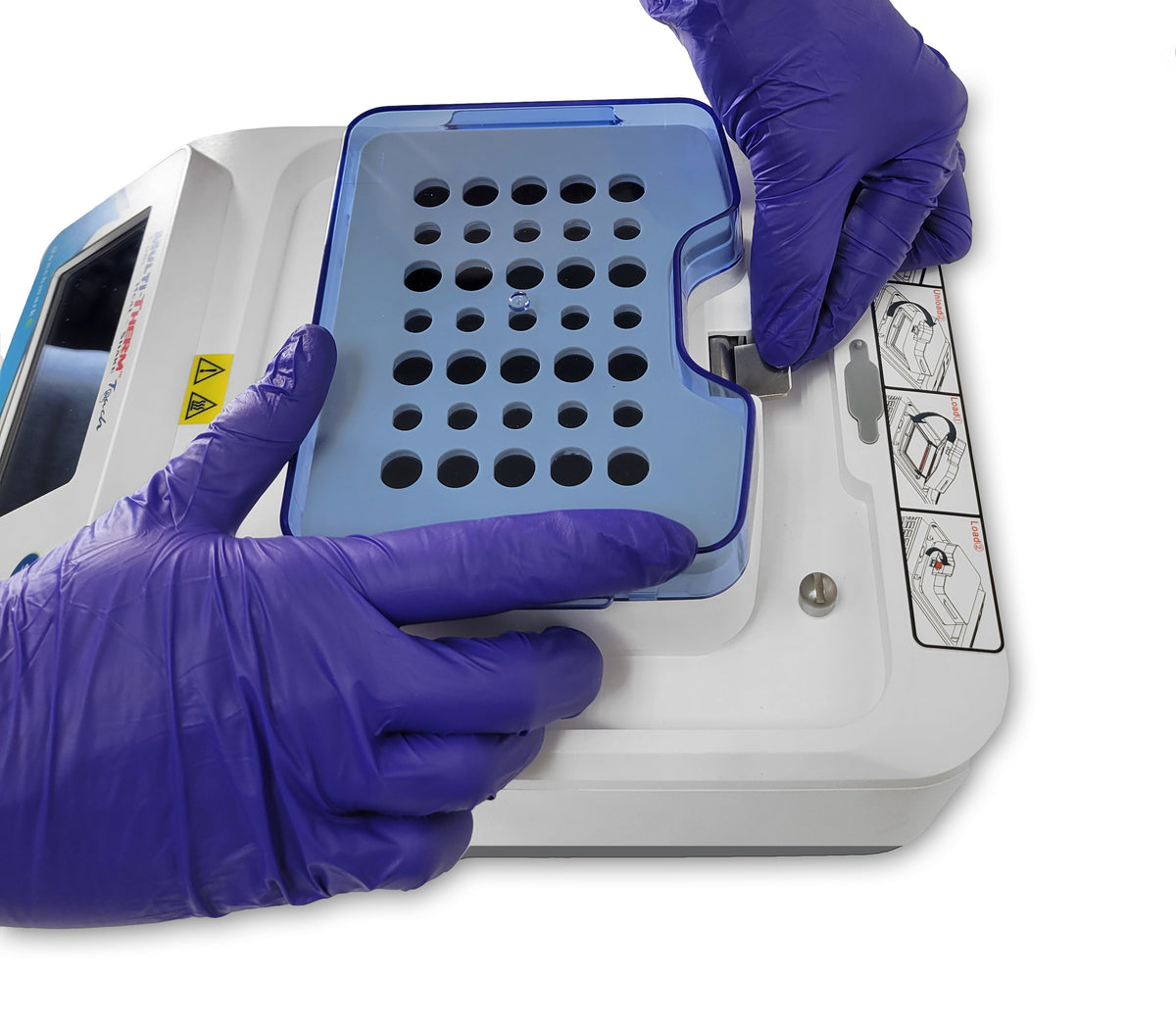

- Tool-free block change with automatic block recognition
- Optional heated lid for tubes up to 5 mL and microplates
- Import and export of data and programs
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | H5100-HCT / H5100-HCT-E |
| Display | 4.3 in color touch screen |
| Speed Range | 200–3,000 rpm (block dependent) |
| Orbit | 3 mm |
| Temperature Range | Ambient −20 °C to 105 °C |
| Temperature Uniformity | ±0.5 °C |
| Timer | 1 s–99 hr 59 min 59 s or continuous |
| Program Memory | 50 programs, up to 5 steps each |
| Programming Features | Adjustable ramp rate, mix mode, mix start, power failure restart, heated lid temperature |
| Capacity | Interchangeable blocks for 0.2–50 mL tubes and plates (sold separately) |
| Dimensions (W × D × H) | 6.3 × 12.6 × 8.7 in (16 × 32 × 22 cm) |
| Weight | 22 lb (10 kg) |
| Electrical | 100–240 V, 50–60 Hz |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| H5100-HCT | 100–240V, US plug |
| H5100-HCT-E | 100–240V, European plug |
