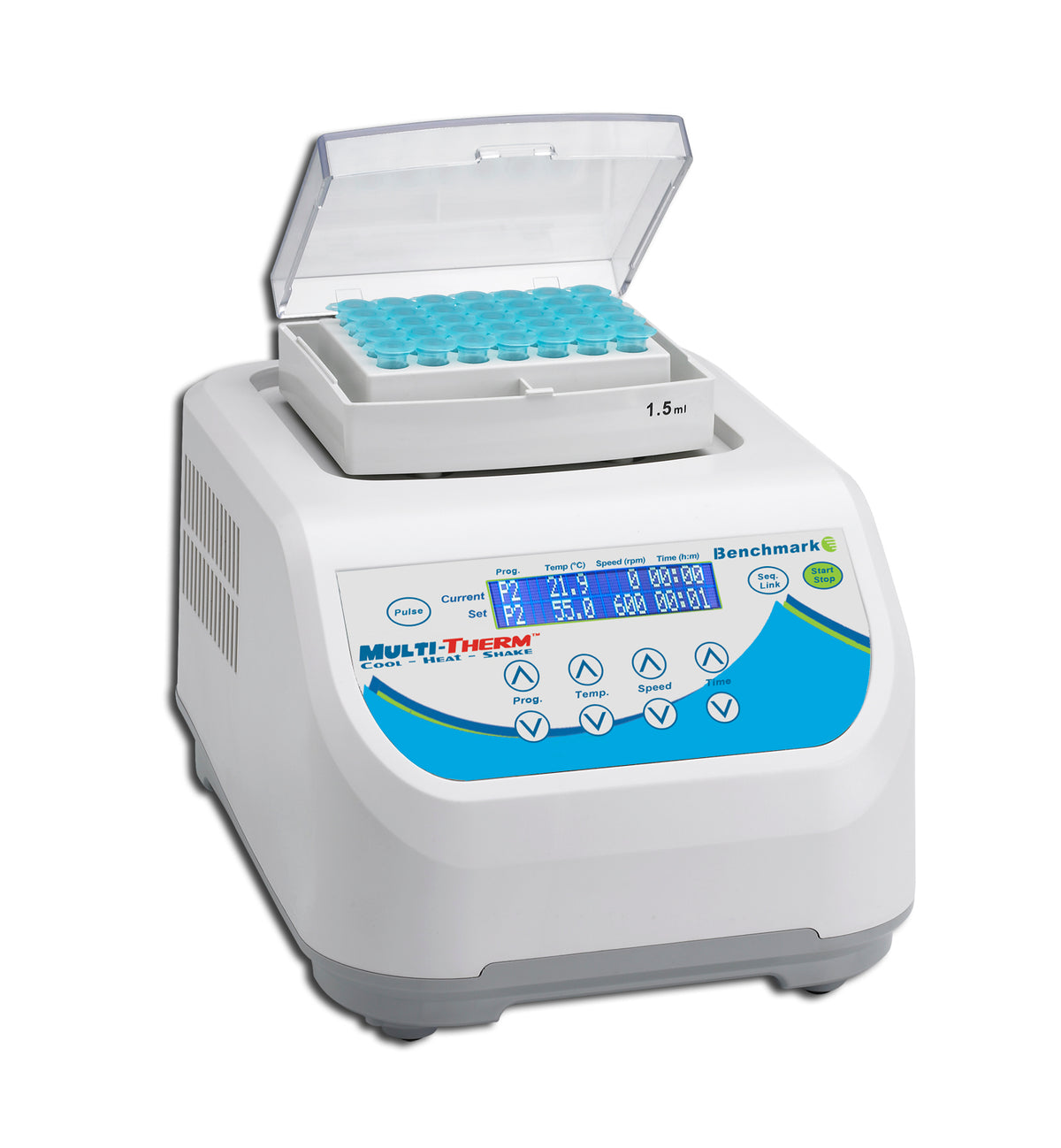

The MultiTherm H5000-HC is a temperature-controlled vortex shaker that both heats and cools, holding the block from 20°C below ambient up to 100°C in 0.1°C steps with ±1.0°C accuracy. Speed is set from 200 to 1,500 rpm in 10 rpm increments on a 3 mm orbit. Interchangeable blocks, sold separately, take tubes from 0.2 mL to 50 mL, including up to six 50 mL tubes, as well as plates. The block heats at 5.0°C per minute and cools at 2.5°C per minute.
Key features
- Heats and cools from ambient −20°C to 100°C, set in 0.1°C steps
- 200–1,500 rpm in 10 rpm increments on a 3 mm orbit
- Heating rate 5.0°C/min; cooling rate 2.5°C/min
- Sequence link function chains and repeats programs
- Timer from 1 min to 99 h 99 min, or continuous

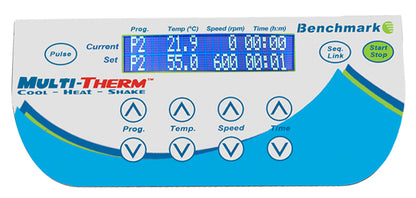

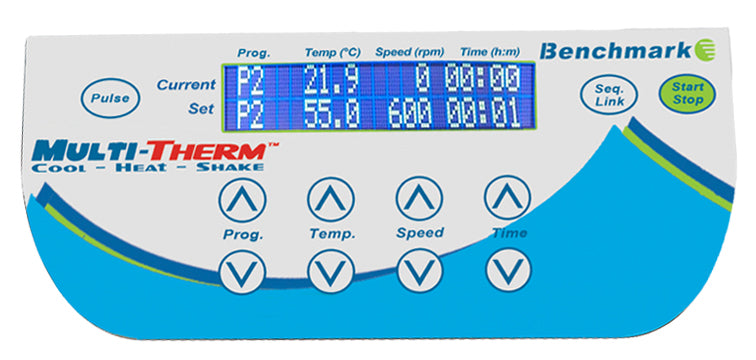

- LCD shows actual and set speed, time and temperature together
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | H5000-HC / H5000-HC-E |
| Speed Range | 200–1,500 rpm |
| Speed Increment | 10 rpm |
| Orbit | 3 mm |
| Temperature Range | Ambient −20 °C to 100 °C |
| Temperature Increment | 0.1 °C |
| Temperature Accuracy | ±1.0 °C |
| Capacity | Interchangeable blocks for 0.2–50 mL tubes (sold separately) |
| Heating Rate | 5.0 °C/min |
| Cooling Rate | 2.5 °C/min |
| Timer | 1 min–99 hr 99 min or continuous |
| Dimensions (W × D × H) | 8.25 × 11.5 × 8.25 in (21 × 29 × 21 cm) |
| Weight | 18 lb (8 kg) |
| Electrical | 115 V (H5000-HC); 230 V (H5000-HC-E); 50–60 Hz; 500 W |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| H5000-HC | 115V, US plug |
| H5000-HC-E | 230V, European plug |
