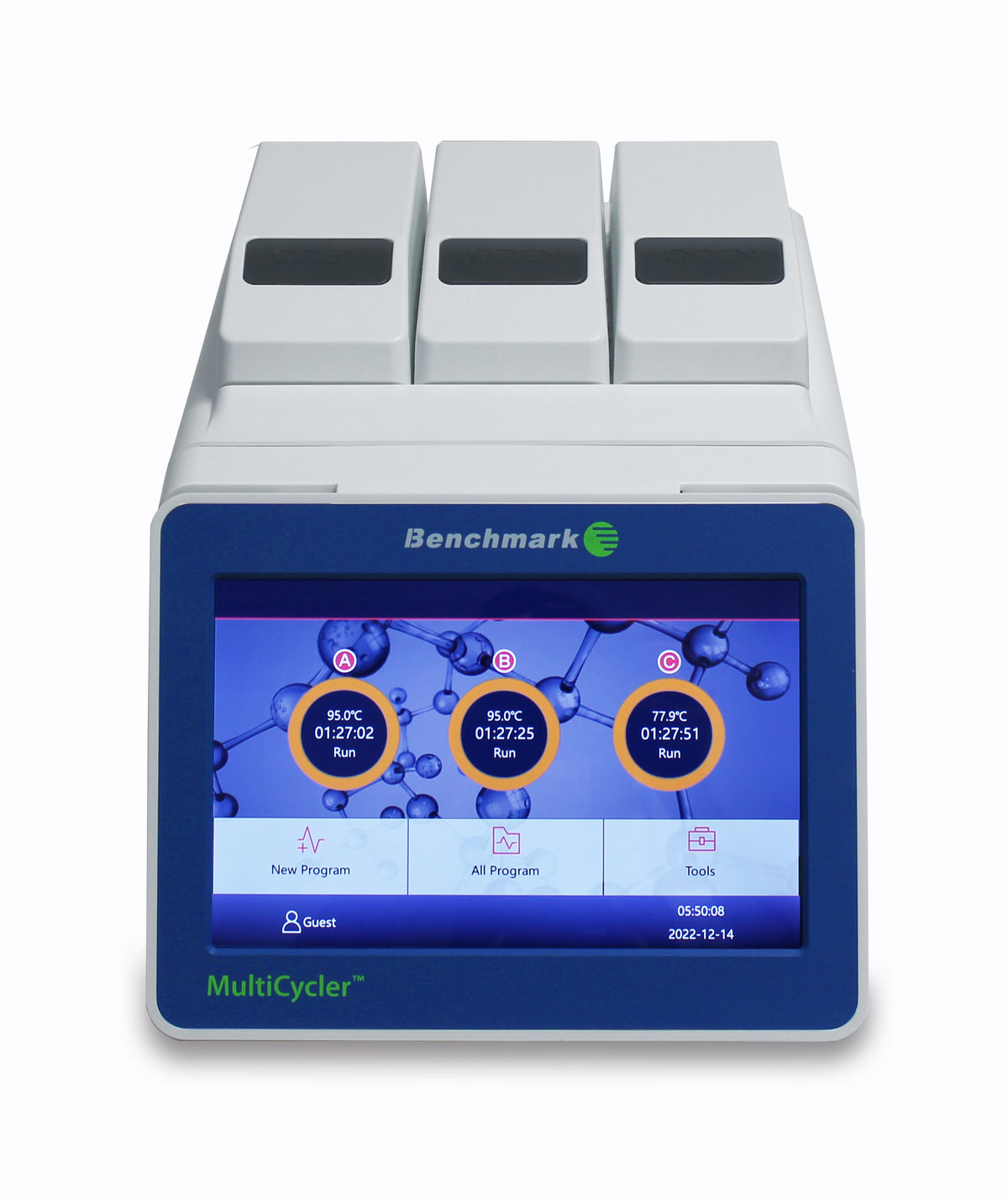

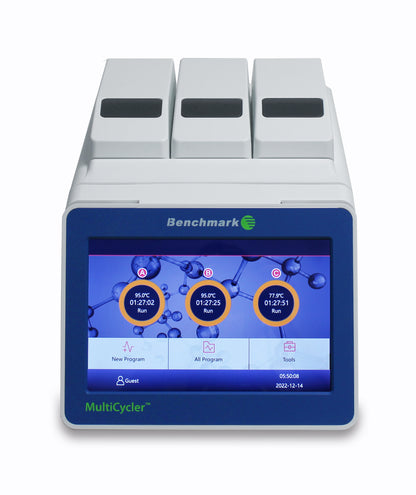

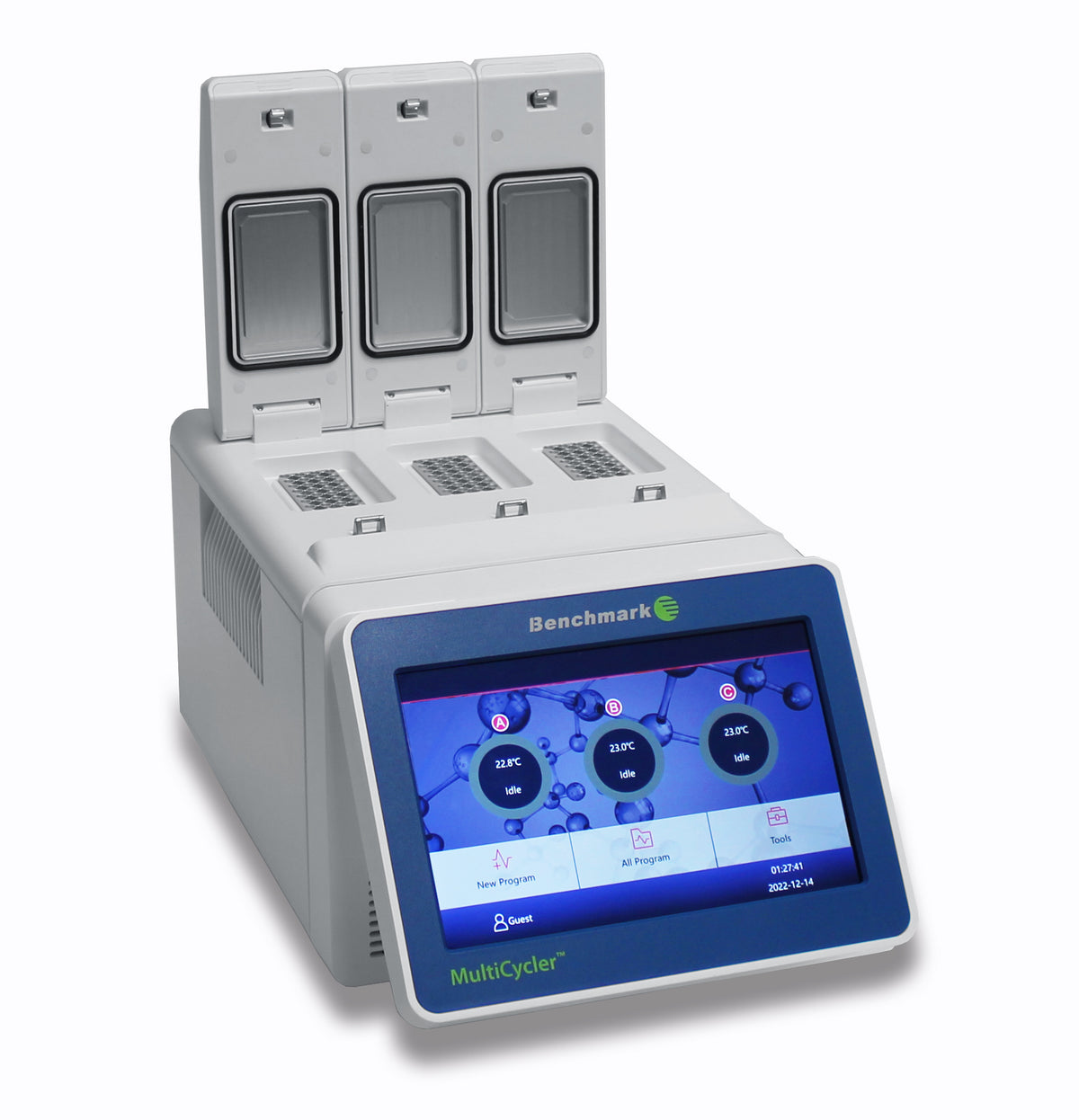

Built for labs that run several assays at once, the MultiCycler 332 T3-0332G carries three independent 32-well blocks in a 4 × 8 layout for 0.2 mL tubes or PCR strips. Each block cycles between 4°C and 99.9°C on Peltier elements, at up to 7.5°C per second heating and 6°C per second cooling. Gradient mode spreads 8 temperatures per block across 30°C to 99.9°C with ±0.1°C accuracy. Password protection keeps one user's run from being interrupted, and USB storage moves protocols between instruments.
Key features
- Three independent 32-well blocks in a 4 × 8 format
- Peltier heating to 7.5°C/s and cooling to 6°C/s
- Ramp rate adjustable from 0.1°C to 5.0°C
- 8-temperature gradient per block at ±0.1°C
- Heated lid 30–112°C, off below a 35°C block temperature
- 37.5 × 27 × 27.7 cm footprint, 13 kg
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | T3-0332G / T3-0332G-E |
| Capacity | 3 × 32-well blocks (0.2 mL) |
| Heating and Cooling | Peltier elements |
| Display | 10 in color touch screen, adjustable angle |
| Block Temperature Range | 4–99.9 °C |
| Max Heating Rate | 7.5 °C/s |
| Max Cooling Rate | 6 °C/s |
| Ramp Rate Adjustment | 0.1–5.0 °C |
| Gradient | 8 temperatures per block |
| Gradient Range | 30–99.9 °C |
| Gradient Accuracy | ±0.1 °C |
| Heated Lid Temperature | 30–112 °C |
| Electrical | 100–240 V, 50–60 Hz |
| Dimensions (L × W × H) | 14.75 × 10.5 × 10.9 in (37.5 × 27 × 27.7 cm) |
| Weight | 28.7 lb (13 kg) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| T3-0332G | 100–240V, US plug |
| T3-0332G-E | 100–240V, European plug |
