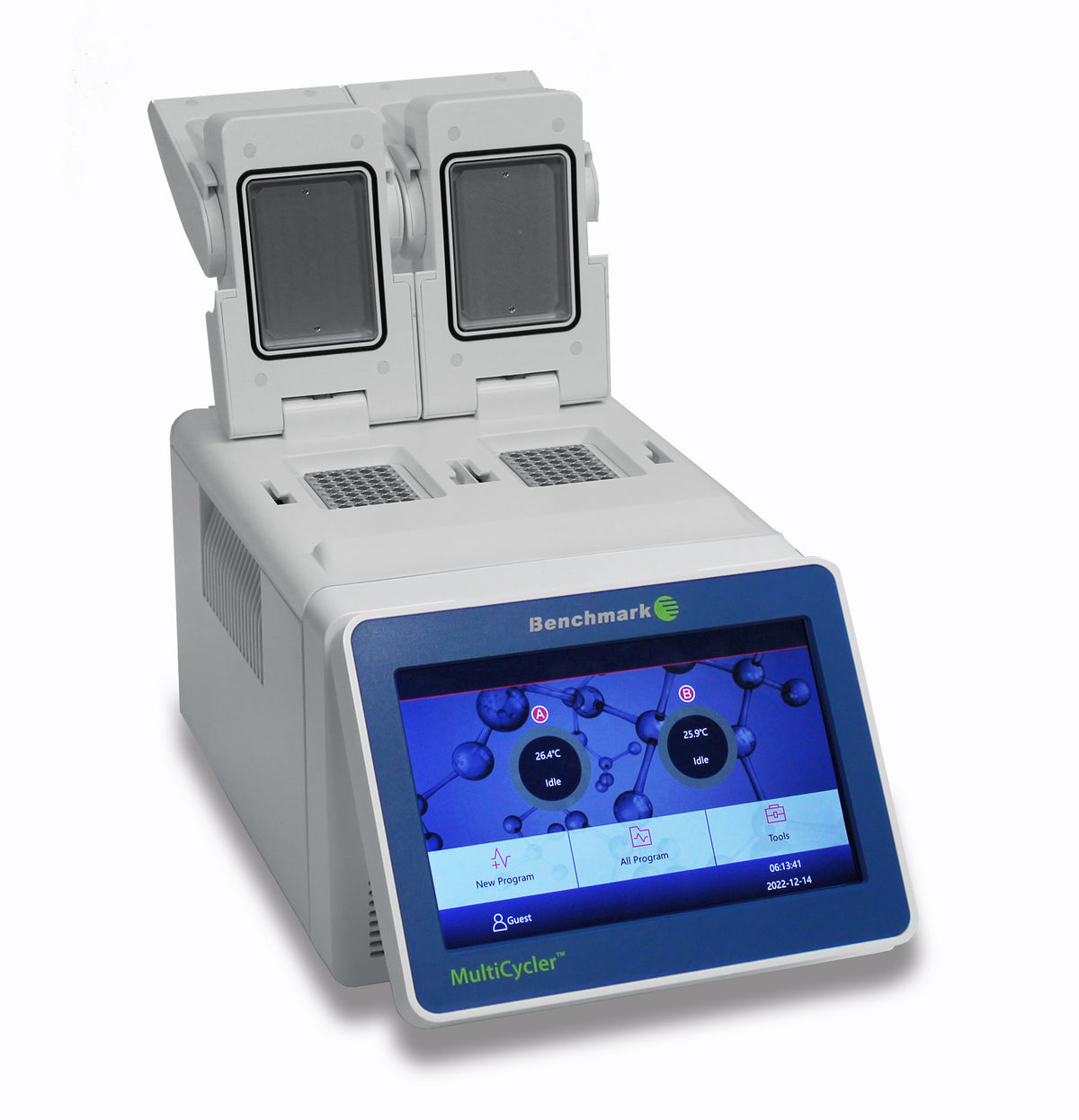

The MultiCycler 248 T3-0248G runs two independent 48-well blocks, each in a 6 × 8 layout that accepts 0.2 mL tubes and PCR strips, so two protocols can run at once. Peltier elements drive the blocks from 4°C to 99.9°C, heating at up to 7.5°C per second and cooling at up to 6°C per second, with ramp adjustable from 0.1°C to 5.0°C. Each block can run a gradient of 8 temperatures between 30°C and 99.9°C at ±0.1°C accuracy. Programming runs from an angle-adjustable 10 in color touch screen.
Key features
- Two independent 48-well blocks for 0.2 mL tubes or strips
- Heating up to 7.5°C/s, cooling up to 6°C/s
- Gradient of 8 temperatures per block, 30–99.9°C, ±0.1°C
- Auto-adjusting heated lid programmable from 30°C to 112°C

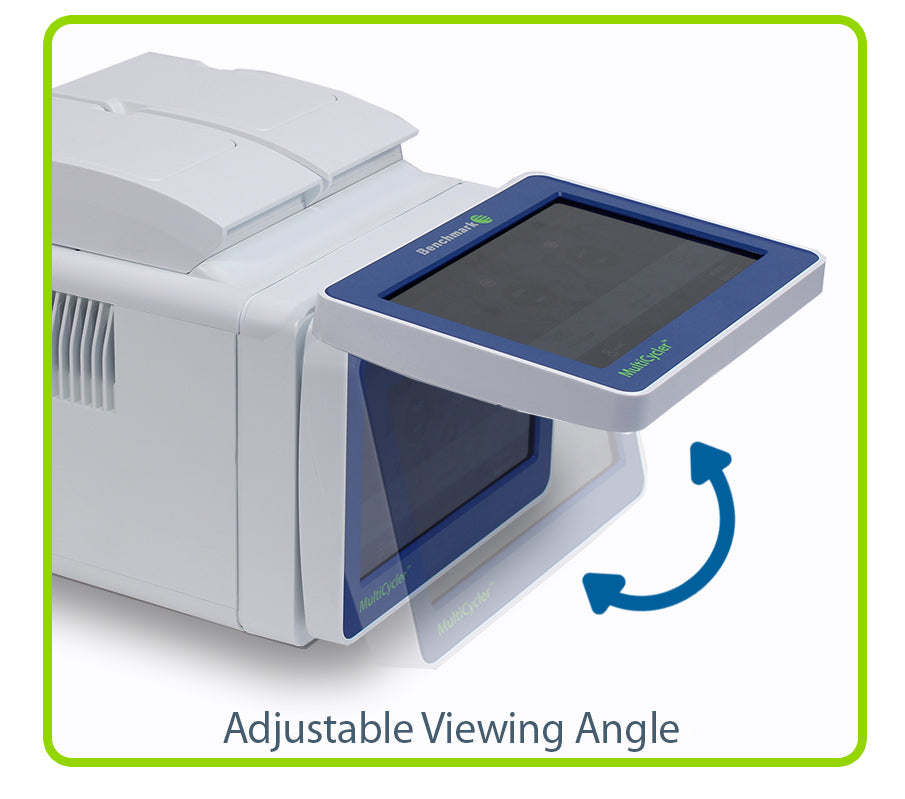

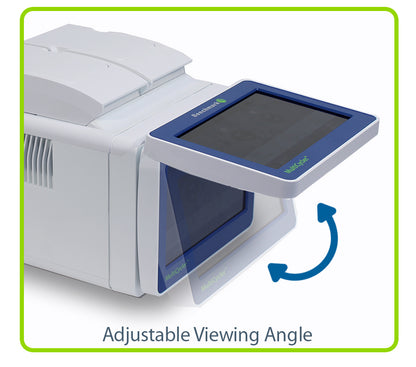

- 10 in tilting color touch screen with program wizard
- USB transfers protocols between MultiCycler units
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | T3-0248G / T3-0248G-E |
| Capacity | 2 × 48-well blocks (0.2 mL) |
| Heating and Cooling | Peltier elements |
| Display | 10 in color touch screen, adjustable angle |
| Block Temperature Range | 4–99.9 °C |
| Max Heating Rate | 7.5 °C/s |
| Max Cooling Rate | 6 °C/s |
| Ramp Rate Adjustment | 0.1–5.0 °C |
| Gradient | 8 temperatures per block |
| Gradient Range | 30–99.9 °C |
| Gradient Accuracy | ±0.1 °C |
| Heated Lid Temperature | 30–112 °C |
| Electrical | 100–240 V, 50–60 Hz |
| Dimensions (L × W × H) | 14.75 × 10.5 × 10.9 in (37.5 × 27 × 27.7 cm) |
| Weight | 28.7 lb (13 kg) |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| T3-0248G | 100–240V, US plug |
| T3-0248G-E | 100–240V, European plug |
