The Mortexer is a vortex mixer supplied with a Multi-Head: a standard cup for general-purpose mixing, plus positions that hold up to eight microcentrifuge tubes. Speed runs from 200 to 3,200 rpm on a 3 mm orbit, fast enough for full 50 mL tubes. The Q-Drive balanced drive limits noise and vibration. Spill-proof controls, no-walk suction feet and a 4 to 45°C operating range suit bench, cold room and incubator use.
Key features

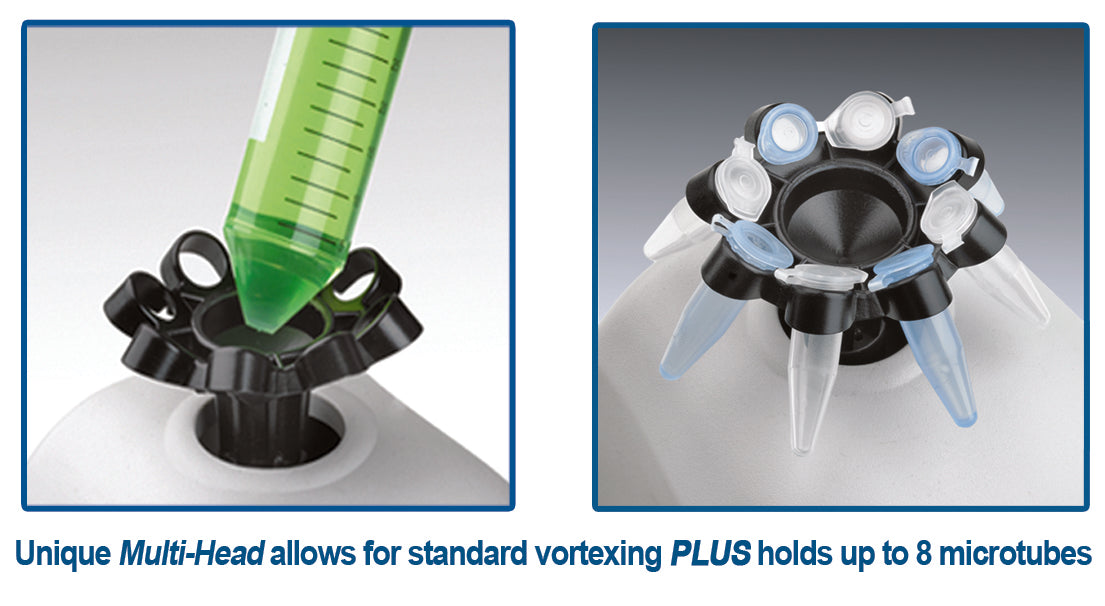

- Multi-Head included: cup head plus holders for up to eight microtubes
- 200–3,200 rpm variable speed, 3 mm orbit
- Touch mode or continuous mode
- Cold room and incubator use, 4 to 45°C
- 115V 60Hz or 230V 50Hz, 180W
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | BV1005 / BV1005-E |
| Speed Range | 200–3,200 rpm (variable) |
| Operating Modes | Touch or continuous |
| Orbit | 3 mm |
| Max Tube Size | 50 mL |
| Dimensions | 5 × 6.3 × 6.7 in (13 × 16 × 17 cm) |
| Operating Temperature | 4–45°C |
| Weight | 8.4 lb (3.8 kg) |
| Electrical | 115 V, 60 Hz or 230 V, 50 Hz; 180 W |
| Head | Multi-Head™: cup head plus up to eight microtubes |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| BV1005 | 115V, US plug |
| BV1005-E | 230V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| BV1000-COMBO | Benchmark Scientific COMBO Head for Microplate & Microtubes BV1000-COMBO |
| BV1000-H500 … | Benchmark Scientific BenchMixer Horizontal Head BV1000-H Series |
Questions about the Mortexer Vortex Mixer BV1005
What speed range and motion does the Mortexer Vortex Mixer BV1005 have?
The Mortexer Vortex Mixer BV1005 runs at 200–3,200 rpm (variable) on a 3 mm orbit.
What accessories are available for the Mortexer Vortex Mixer BV1005?
Benchmark Scientific lists BV1000-COMBO (COMBO Head for Microplate & Microtubes) and BV1000-H500 (BenchMixer Horizontal Head) for the Mortexer Vortex Mixer BV1005.
Is the Mortexer Vortex Mixer BV1005 available with a European plug?
Yes. BV1005-E is the European-plug version of BV1005: BV1005 is 115V with a US plug and BV1005-E is 230V with a European plug.
