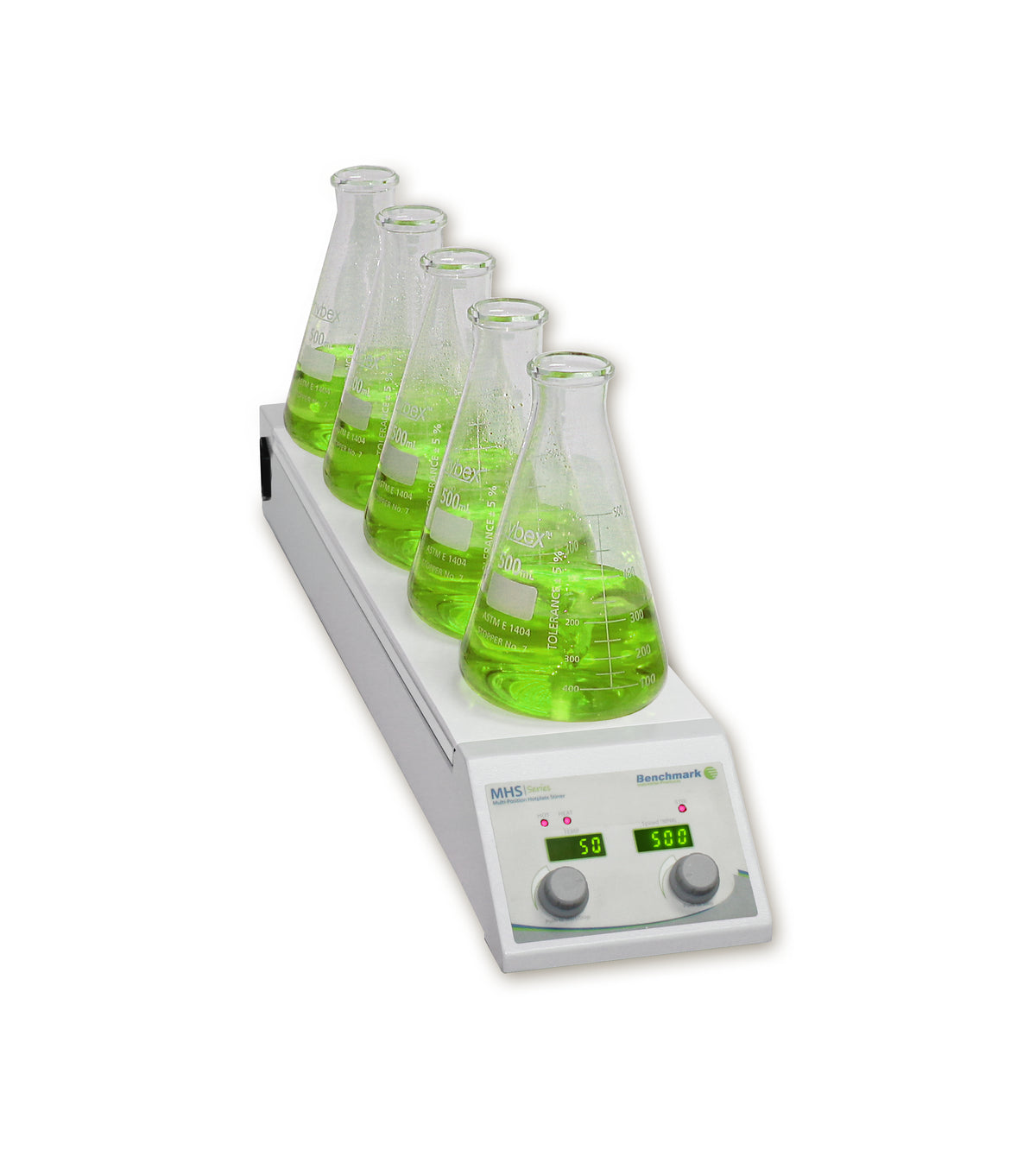

The MHS-5 (IPS7000-5) heats and stirs five samples at once on a white ceramic top plate. Each position has its own motor, a 100 × 100 mm footprint and a 1 L water capacity, and the wide spacing fits beakers, Erlenmeyer flasks and media bottles. Speed is set from 150 to 2,000 rpm in 1 rpm steps and temperature from 35 to 120°C in 1°C steps. The unit measures 25.4 × 5.3 × 3.3 in and draws 250W.
Key features
- 5 positions, each with an independent stir motor
- 150–2,000 rpm in 1 rpm increments
- Heats 35–120°C in 1°C increments
- 1 L capacity and 100 × 100 mm area per position
- 25.4 × 5.3 × 3.3 in, 10.1 lb, 250W
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | IPS7000-5 / IPS7000-5-E |
| Stirring Positions | 5, each with an independent motor |
| Speed Range | 150–2,000 rpm |
| Speed Increments | 1 rpm |
| Temperature Range | 35–120°C |
| Temperature Increments | 1°C |
| Stirring Capacity | 1 L (water) per position |
| Platform Dimensions | 100 × 100 mm per position |
| Top Plate | White ceramic |
| Dimensions | 25.4 × 5.3 × 3.3 in (64.5 × 13.5 × 8.4 cm) |
| Weight | 10.1 lb (4.6 kg) |
| Electrical | 120 V or 230 V, 50–60 Hz; 250 W |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| IPS7000-5 | 120V, US plug |
| IPS7000-5-E | 230V, European plug |
Questions about the MHS-5 5-Position Hotplate Stirrer IPS7000-5
How hot does the MHS-5 5-Position Hotplate Stirrer IPS7000-5 get, and how much can it stir?
The MHS-5 5-Position Hotplate Stirrer IPS7000-5 heats over 35–120°C and stirs at 150–2,000 rpm, on a white ceramic top plate.
Is the MHS-5 5-Position Hotplate Stirrer IPS7000-5 available with a European plug?
Yes. IPS7000-5-E is the European-plug version of IPS7000-5: IPS7000-5 is 120V with a US plug and IPS7000-5-E is 230V with a European plug.
