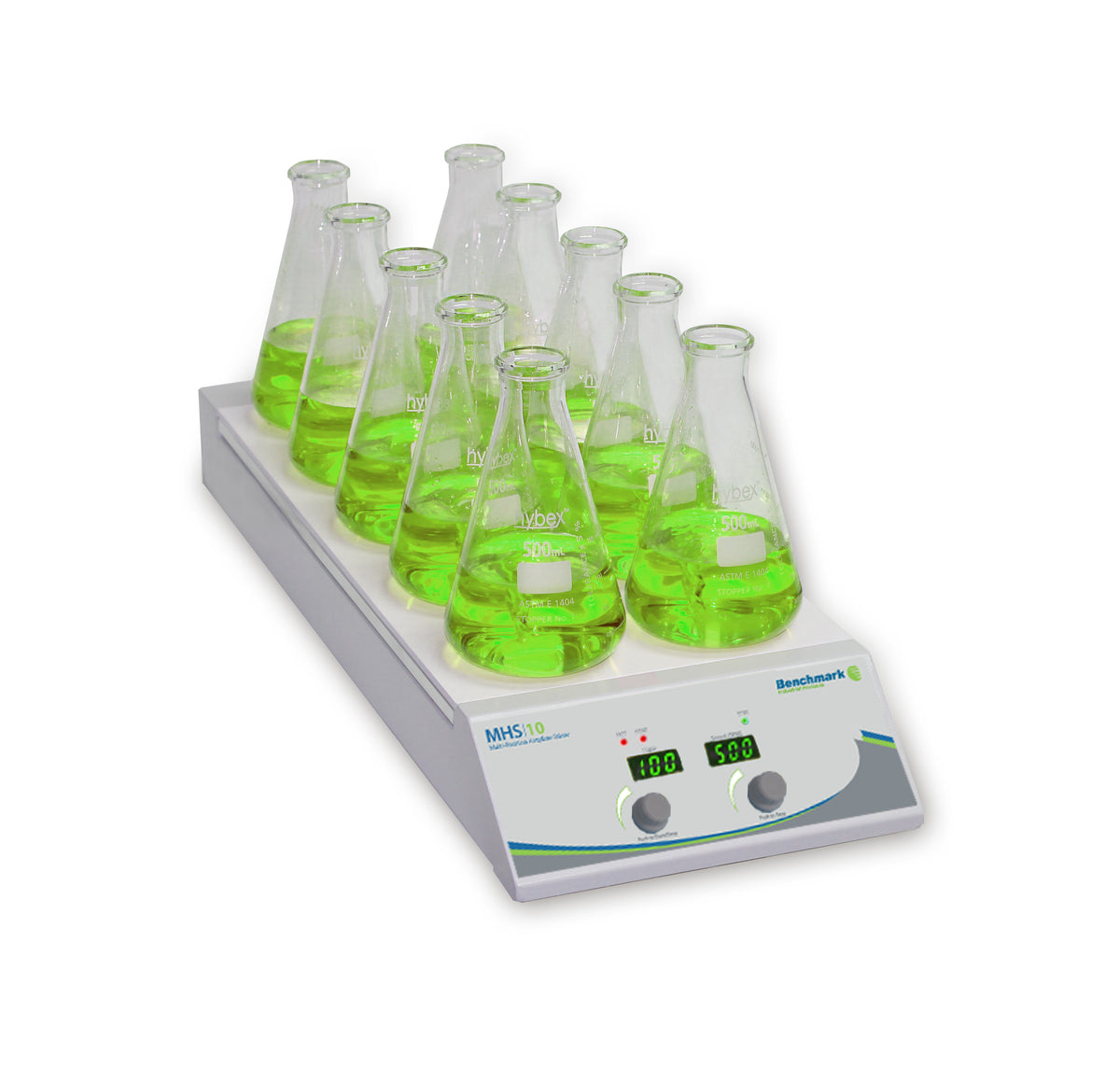

IPS7000-10 is the MHS-10, a ten-position stirring hotplate; its white ceramic deck measures 25.4 × 9.6 × 3.3 in overall. Every position is driven by its own motor and handles up to 1 L of water on a 100 × 100 mm area, spaced to take flasks and media bottles. Stir speed adjusts from 150 to 2,000 rpm in 1 rpm increments, and plate temperature from 35 to 120°C. Power draw is 500W, and the unit weighs 17 lb.
Key features
- 10 independently driven stirring positions
- Each position stirs up to 1 L on a 100 × 100 mm area
- 150–2,000 rpm, set in 1 rpm steps
- Plate heats 35–120°C
- Safety LED warns when the top plate is hot
- 500W; 25.4 × 9.6 × 3.3 in, 17 lb
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | IPS7000-10 / IPS7000-10-E |
| Stirring Positions | 10, each with an independent motor |
| Speed Range | 150–2,000 rpm |
| Speed Increments | 1 rpm |
| Temperature Range | 35–120°C |
| Temperature Increments | 1°C |
| Stirring Capacity | 1 L (water) per position |
| Platform Dimensions | 100 × 100 mm per position |
| Top Plate | White ceramic |
| Dimensions | 25.4 × 9.6 × 3.3 in (64.5 × 24.5 × 8.4 cm) |
| Weight | 17 lb (7.7 kg) |
| Electrical | 120 V or 230 V, 50–60 Hz; 500 W |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| IPS7000-10 | 120V, US plug |
| IPS7000-10-E | 230V, European plug |
